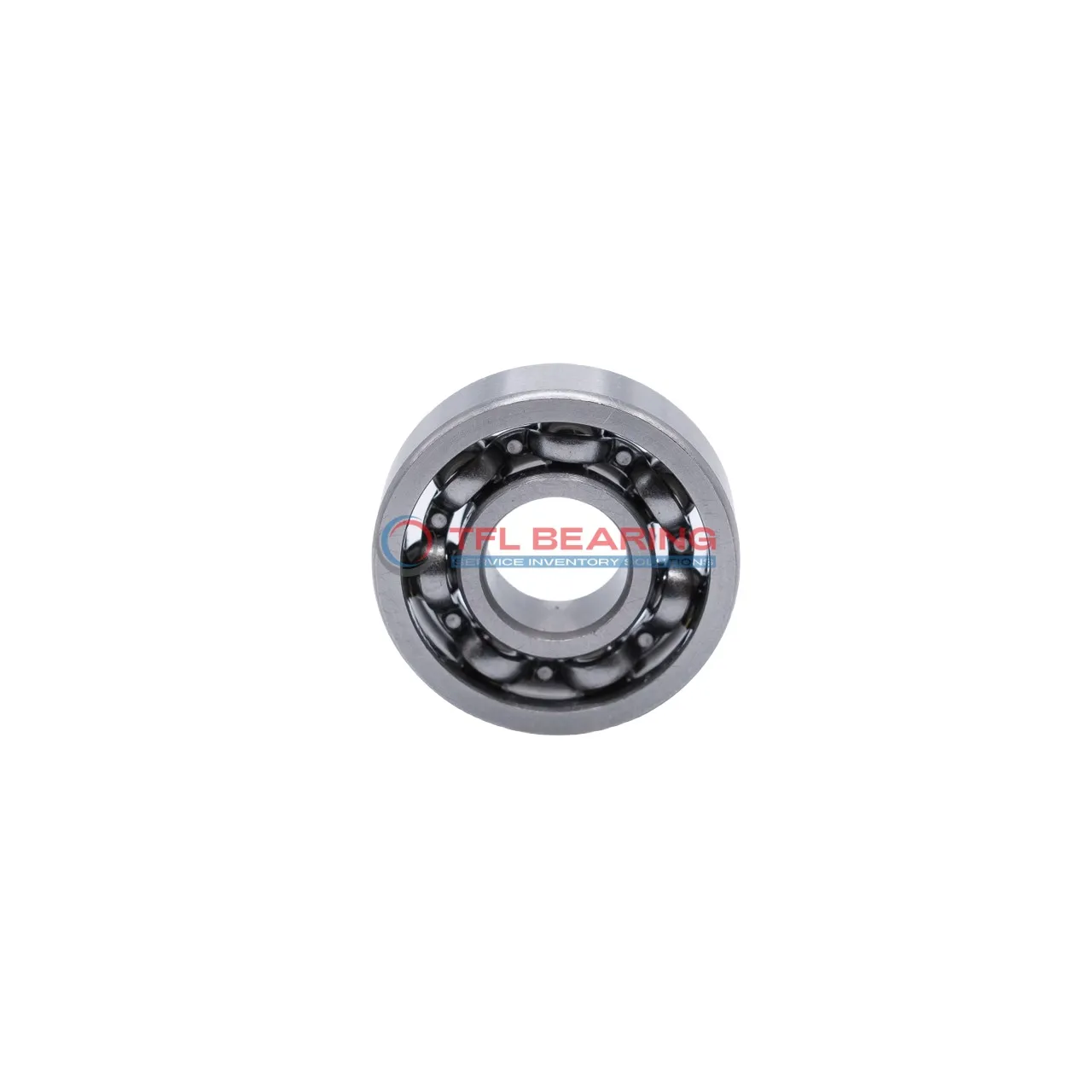

Single Row Deep Groove Ball Bearings 6001/C403H

The 6001/C403H is a compact single-row deep groove ball bearing, measuring 12mm by 28mm by 8mm. Made from chrome steel, it handles radial loads up to 1147 lbf and spins smoothly at speeds up to 27,000 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or small machinery where radial loads are common.

Weighing just 22g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6001/C403H
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C4
Bore Dia 12 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 28 mm
Outer Dia Tolerance -0.009mm to 0
Width 8 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 1147 lbf
Static Radial Load 54 lbf
Max Speed 27000 rpm
Weight 22 g

Single Row Deep Groove Ball Bearings 6001/C403H dimension drawing

Download DWG Download PDF

Features

Performance Features of 6001/C403H Bearing

6001/C403H Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 1147 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.

The open seal type allows for easy maintenance and lubrication adjustments when needed.
With a maximum speed of 27,000 rpm, it delivers reliable performance in high-speed applications.

6001/C403H Bearing operates in temperatures from -30°C to 120°C, making it versatile for various environments.
Its compact size (12 mm×28 mm×8 mm) makes it suitable for space-constrained installations.

The chrome steel cage maintains ball alignment, reducing friction and extending bearing life.
ABEC 1 tolerance ensures consistent performance while keeping costs reasonable.

Application

Common Applications of 6001/C403H Bearing
6001/C403H Bearing is widely used in industrial equipment like small electric motors and pumps, where its radial load capacity and compact size are beneficial. The open design allows for easy lubrication, extending service life in dusty environments.

In automotive applications, 6001/C403H Bearing fits well in components such as alternators and cooling fans, ensuring smooth rotation at high speeds. Its chrome steel construction provides durability under constant vibration and temperature changes.

For home appliances, 6001/C403H Bearing is often found in washing machines and power tools, where reliability and quiet operation matter. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

Automation systems benefit from 6001/C403H Bearing in conveyor belts and robotic arms, thanks to its balanced radial load handling. The C4 clearance offers flexibility in thermal expansion scenarios.
