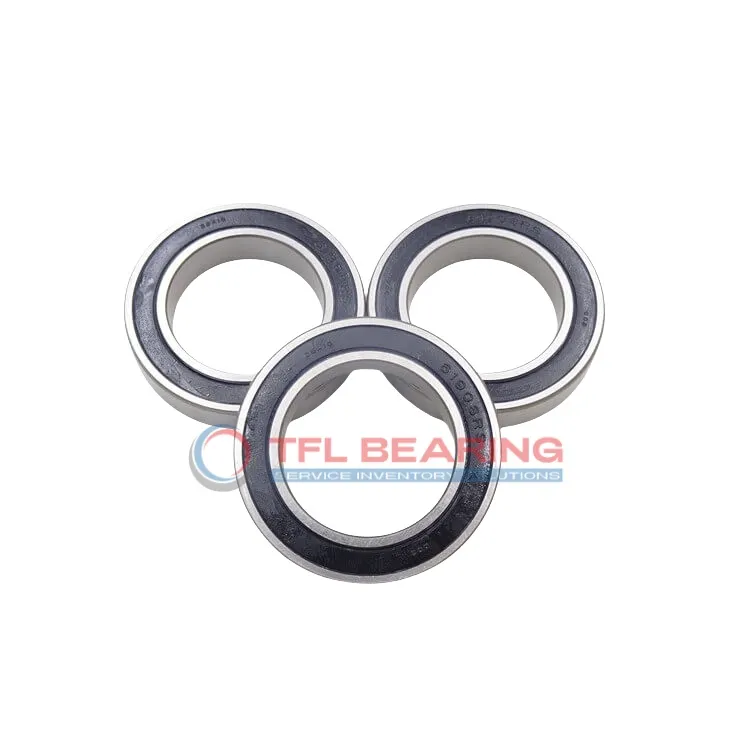

Stainless Steel Deep Groove Ball Bearings W 6003-2RS1/R799

Stainless Steel Deep Groove Ball Bearings W 6003-2RS1/R799

The W 6003-2RS1/R799 is a compact stainless steel deep groove ball bearing, measuring 17mm by 35mm by 10mm. It handles radial loads up to 1111 lbf and can spin at speeds up to 28,000 RPM, making it suitable for fast-moving applications.

Its sealed design keeps out dirt and moisture, extending the bearing’s life, while the stainless steel construction resists corrosion. The bearing operates smoothly in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s ideal for use in food processing equipment or marine environments where rust resistance is key.

Weighing just 0.036kg, it’s lightweight yet durable. Compliant with REACH standards, it’s a safe choice for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6003-2RS1/R799
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1111 lbf
  • Static Radial Load 708 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 28000 rpm
  • Weight 0.036 kg
  • Price（$） 10.46
Stainless Steel Deep Groove Ball Bearings W 6003-2RS1/R799 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6003-2RS1/R799 Bearing for Precision Tasks?

W 6003-2RS1/R799 Bearing is crafted with stainless steel rings and balls, ensuring excellent corrosion resistance.
Its sealed design protects against dust and moisture, making it suitable for various environments.

The dynamic radial load capacity of 1111 lbf allows it to handle demanding radial loads with ease.
With a maximum speed of 28,000 rpm, it offers smooth and efficient operation.

The chrome steel cage maintains ball alignment, reducing friction and extending bearing life.
Its compact size (17 mm×35 mm×10 mm) makes it ideal for space-constrained applications.

W 6003-2RS1/R799 Bearing operates in temperatures from -30°C to 120°C, ensuring versatility.
Its ABEC 1 tolerance class provides reliable precision for everyday industrial use.

Application

Common Applications of W 6003-2RS1/R799 Bearing
W 6003-2RS1/R799 Bearing works well in industrial settings, especially for conveyor systems and small machinery where radial load support is needed. Its sealed design keeps out dust and debris, making it reliable for long-term use.

In automotive applications, W 6003-2RS1/R799 Bearing fits nicely into electric motors and pumps, thanks to its stainless steel construction. The ABEC 1 tolerance ensures smooth operation without excessive noise.

For home appliances like washing machines or fans, W 6003-2RS1/R799 Bearing offers quiet and efficient performance. The sealed feature helps it handle moisture and minor contaminants without losing functionality.

Where Is W 6003-2RS1/R799 Bearing Used?
You’ll often find W 6003-2RS1/R799 Bearing in medical devices like dental tools or lab equipment, where precision and hygiene matter. The stainless steel material resists corrosion, even with frequent sterilisation.

In robotics and automation, W 6003-2RS1/R799 Bearing supports lightweight arms and joints, ensuring smooth movement. Its compact size and sealed design make it a practical choice for tight spaces.

Built for Versatility: W 6003-2RS1/R799 Bearing
W 6003-2RS1/R799 Bearing is handy in food processing equipment, where stainless steel avoids contamination risks. The sealed design also helps in wet or greasy environments.

For DIY power tools, W 6003-2RS1/R799 Bearing provides durability without needing frequent maintenance. Its high-speed capability suits grinders and small drills perfectly.
