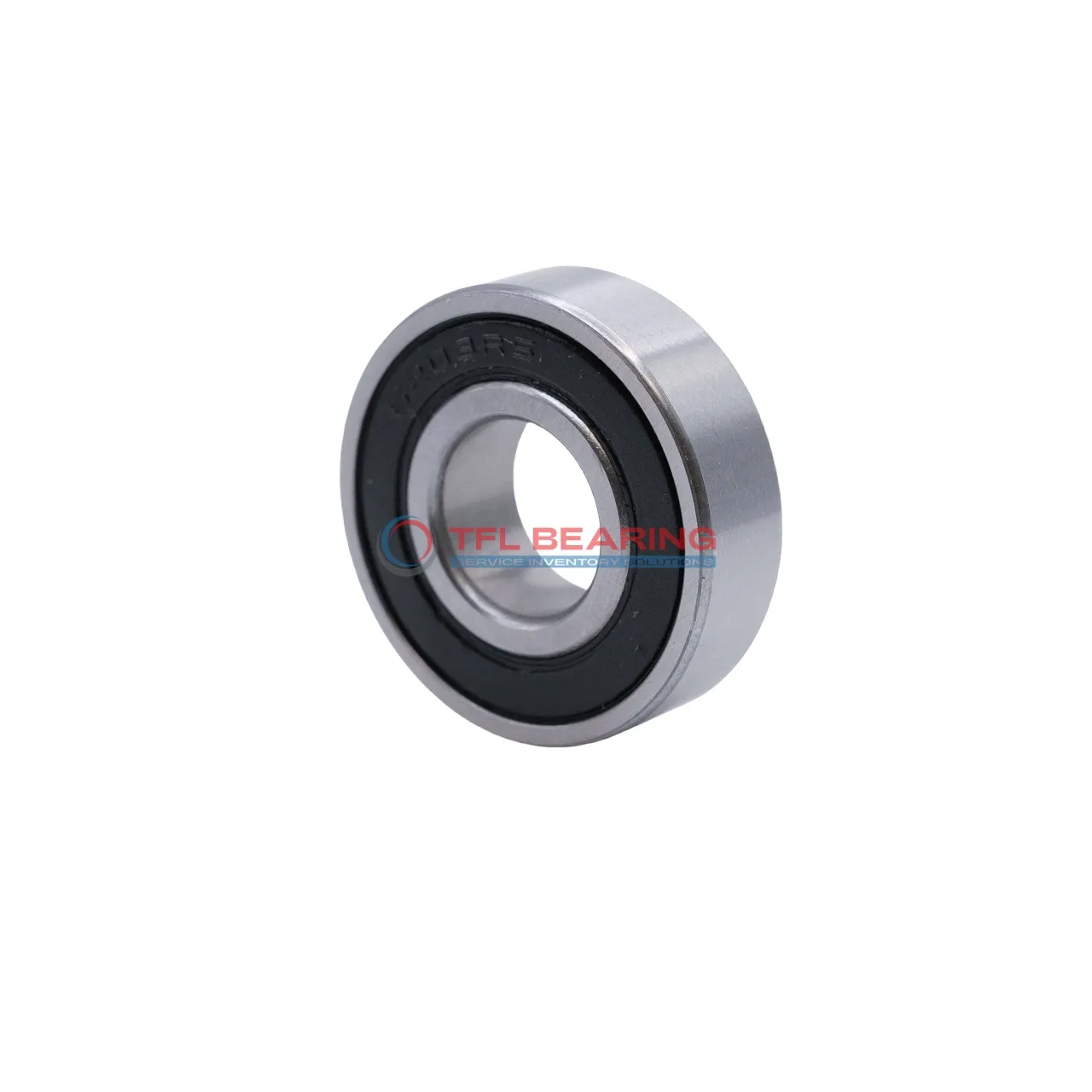

Stainless Steel Deep Groove Ball Bearings W 61703-2RS1

Stainless Steel Deep Groove Ball Bearings W 61703-2RS1

The W 61703-2RS1 is a compact stainless steel deep groove ball bearing, measuring 17mm by 23mm by 4mm. It handles radial loads up to 126 lbf and spins smoothly at speeds up to 17,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction ensures corrosion resistance and durability.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It works well in temperatures from -30°C to 120°C.

Ideal for small machinery or instruments where space is limited. Weighing just 0.0039kg, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61703-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 23 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 126 lbf
  • Static Radial Load 76 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 17000 rpm
  • Weight 0.0039 kg
Stainless Steel Deep Groove Ball Bearings W 61703-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 61703-2RS1 Bearing for Precision Tasks?

W 61703-2RS1 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its compact size of 17 mm×23 mm×4 mm makes it ideal for applications where space is limited.

The sealed design ensures grease retention, reducing the need for frequent maintenance.
With a maximum speed of 17,000 rpm, it delivers smooth and reliable performance in high-speed operations.

The dynamic radial load capacity of 126 lbf ensures durability under demanding conditions.
Its P0 tolerance class guarantees precision, making it suitable for exacting tasks.

Application

Common Applications of W 61703-2RS1 Bearing
W 61703-2RS1 Bearing is widely used in small industrial equipment, such as compact pumps and precision instruments, where its stainless steel construction offers excellent corrosion resistance. The sealed design keeps contaminants out, ensuring long-lasting performance in dusty or humid environments.

In automotive applications, W 61703-2RS1 Bearing fits well in electric window mechanisms and small gearboxes, providing smooth rotation with minimal maintenance. Its metric sizing makes it a versatile choice for various vehicle models.

For medical devices, W 61703-2RS1 Bearing’s compact size and reliability make it suitable for handheld surgical tools and diagnostic equipment. The grease lubrication ensures quiet operation, which is essential in sensitive medical settings.

In consumer electronics, W 61703-2RS1 Bearing can be found in devices like small fans and printers, where its low friction and durability enhance performance. The stainless steel material also makes it resistant to wear in everyday use.
