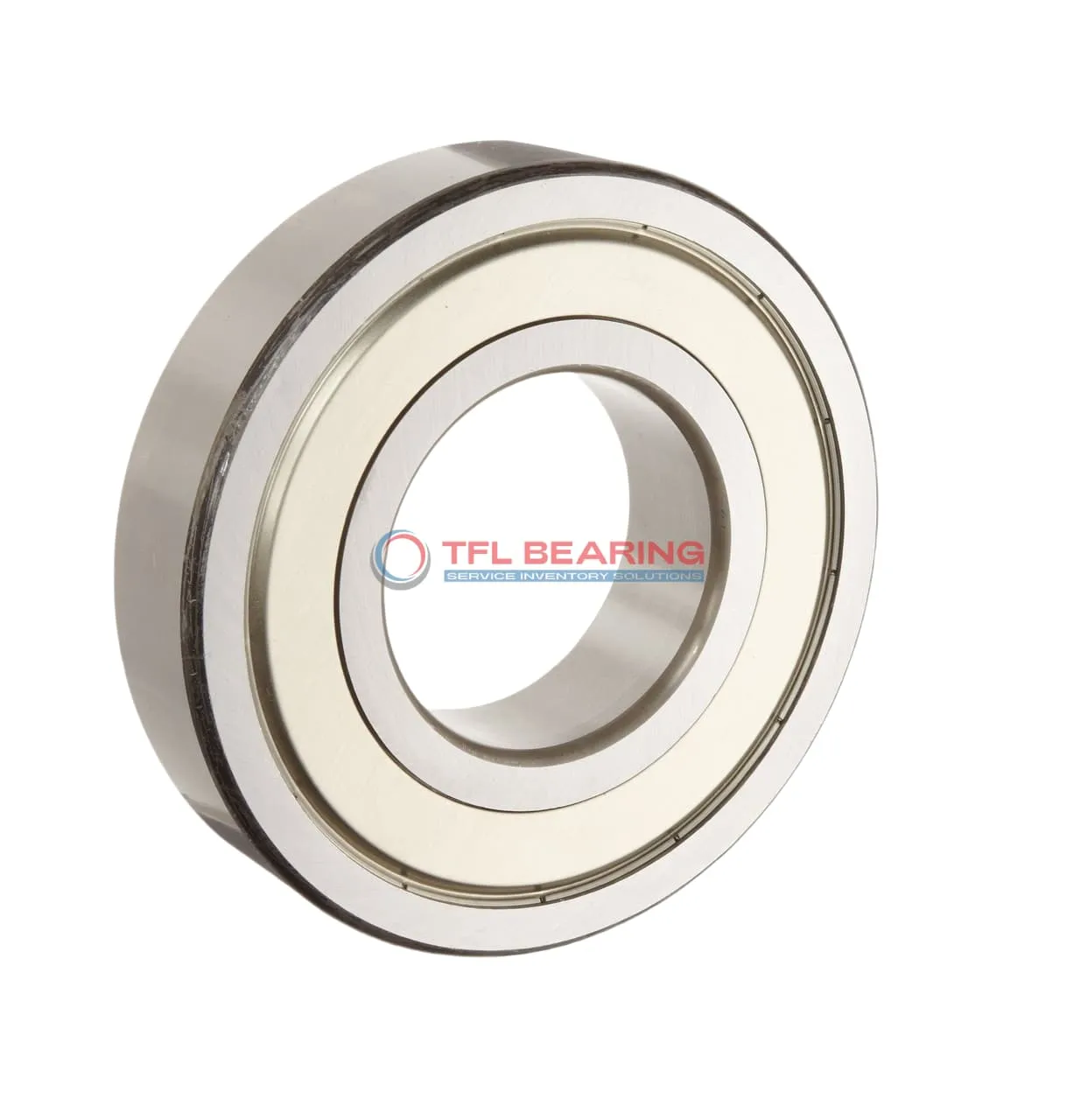

Single Row Deep Groove Ball Bearings 6001-2Z/GJN

Single Row Deep Groove Ball Bearings 6001-2Z/GJN

The 6001-2Z/GJN is a compact single-row deep groove ball bearing with a 12mm bore and 28mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1147 lbf and spins smoothly at speeds up to 27,000 RPM.

Its shielded design keeps out dust and debris, while the chrome steel cage ensures reliable performance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like small motors or power tools where radial loads are common.

Weighing just 22g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6001-2Z/GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 27000 rpm
  • Weight 22 g
  • price（$） 2.574
Single Row Deep Groove Ball Bearings 6001-2Z/GJN dimension drawing
Download DWG Download PDF

Features

Performance Features of 6001-2Z/GJN Bearing

6001-2Z/GJN Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1147 lbf, ensuring reliable performance in various applications.

The shielded design of 6001-2Z/GJN Bearing protects against dust and contaminants, enhancing durability.
With a maximum speed of 27,000 rpm, it balances efficiency and long service life.

6001-2Z/GJN Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its compact size of 12 mm×28 mm×8 mm makes it suitable for space-constrained applications.

The chrome steel cage in 6001-2Z/GJN Bearing ensures proper ball alignment, reducing wear.
This design contributes to its low maintenance needs and consistent performance.

Application

Common Applications of 6001-2Z/GJN Bearing
In industrial settings, 6001-2Z/GJN Bearing is commonly used in electric motors and pumps, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

How Does 6001-2Z/GJN Bearing Improve Performance?
For automotive applications like alternators and small gearboxes, 6001-2Z/GJN Bearing offers reliable radial load support. Its compact size and high-speed capability make it a versatile choice for tight spaces.

Perfect Fit for Automation: 6001-2Z/GJN Bearing
In robotics and automation systems, 6001-2Z/GJN Bearing provides smooth rotation for joints and small actuators. The ABEC 1 tolerance ensures consistent performance without unnecessary precision costs.

Light-Duty vs Heavy-Duty: Best Uses for 6001-2Z/GJN Bearing
While ideal for light-duty applications like office machinery, 6001-2Z/GJN Bearing also handles moderate loads in appliances. Its temperature range suits both indoor and outdoor equipment.

Where Is 6001-2Z/GJN Bearing Used?
You’ll find 6001-2Z/GJN Bearing in household items like washing machines and power tools. The shielded design protects against dust while maintaining low maintenance needs.
