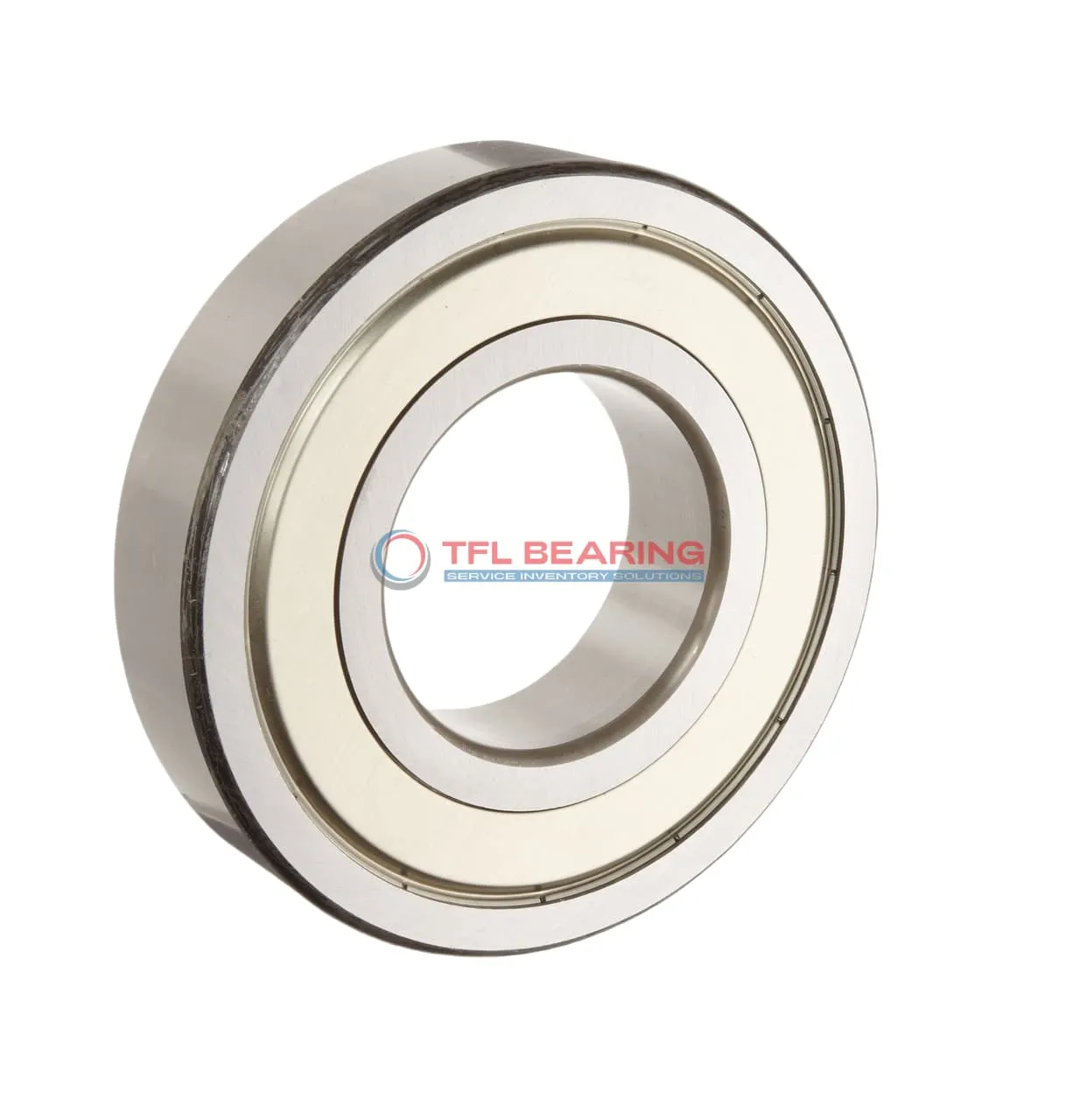

Single Row Deep Groove Ball Bearings 6001-2Z/VQ484

Single Row Deep Groove Ball Bearings 6001-2Z/VQ484

The 6001-2Z/VQ484 is a compact single-row deep groove ball bearing, measuring 12mm by 28mm by 8mm. Made from durable chrome steel, it handles radial loads up to 1147 lbf and spins smoothly at speeds up to 27,000 RPM.

Its shielded design keeps dust out while maintaining smooth operation. The bearing works well in temperatures from -30°C to 120°C, making it versatile for various environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for small motors, power tools, or appliances where space is limited.

Weighing just 22g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6001-2Z/VQ484
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 27000 rpm
  • Weight 22 g
  • price（$） 2.835
Single Row Deep Groove Ball Bearings 6001-2Z/VQ484 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6001-2Z/VQ484 Bearing

6001-2Z/VQ484 Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its shielded design helps keep contaminants out, ensuring smoother operation over time.
With a dynamic radial load capacity of 1147 lbf, it handles demanding applications efficiently.
The bearing operates well in temperatures ranging from -30°C to 120°C, making it versatile for various conditions.

Application

Common Applications of 6001-2Z/VQ484 Bearing
In industrial settings, 6001-2Z/VQ484 Bearing is commonly used in small electric motors and pumps, thanks to its shielded design that keeps contaminants out. Its compact size and radial load capacity make it a reliable choice for tight spaces.

Where Is 6001-2Z/VQ484 Bearing Used?
You’ll often find 6001-2Z/VQ484 Bearing in household appliances like washing machines and fans, where smooth, quiet operation is key. The chrome steel construction ensures long-lasting performance even with daily use.

Ideal for Precision: 6001-2Z/VQ484 Bearing
For automation equipment, 6001-2Z/VQ484 Bearing works well in conveyor systems and small robotic arms, offering consistent performance. Its ABEC 1 tolerance provides enough precision for most general applications.

Automotive vs Industrial: Applications of 6001-2Z/VQ484 Bearing
In automotive applications, 6001-2Z/VQ484 Bearing fits well in alternators and small gearboxes, while in industrial settings, it’s suited for light machinery. The wide temperature range allows it to perform in various environments.

What Makes 6001-2Z/VQ484 Bearing a Preferred Choice?
With its balanced load capacity and speed rating, 6001-2Z/VQ484 Bearing is a go-to for small power tools and office equipment. The shielded seals help extend its lifespan by reducing dust ingress.
