Single Row Deep Groove Ball Bearings 6000-2RSLTN9/C3

Single Row Deep Groove Ball Bearings 6000-2RSLTN9/C3

The 6000-2RSLTN9/C3 is a compact single-row deep groove ball bearing, measuring 10mm by 26mm by 8mm. Made from chrome steel, it’s built to handle radial loads up to 1023 lbf and spins smoothly at speeds up to 31,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The nylon cage reduces friction, ensuring quiet operation and long service life.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for small motors, pumps, or appliances where space is limited but performance matters. Compliant with RoHS and REACH standards, it’s a safe and durable choice. Weighing just 19g, it’s lightweight yet sturdy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6000-2RSLTN9/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1023 lbf
  • Static Radial Load 438 lbf
  • Max Speed 31000 rpm
  • Weight 19 g
  • price（$） 3.798

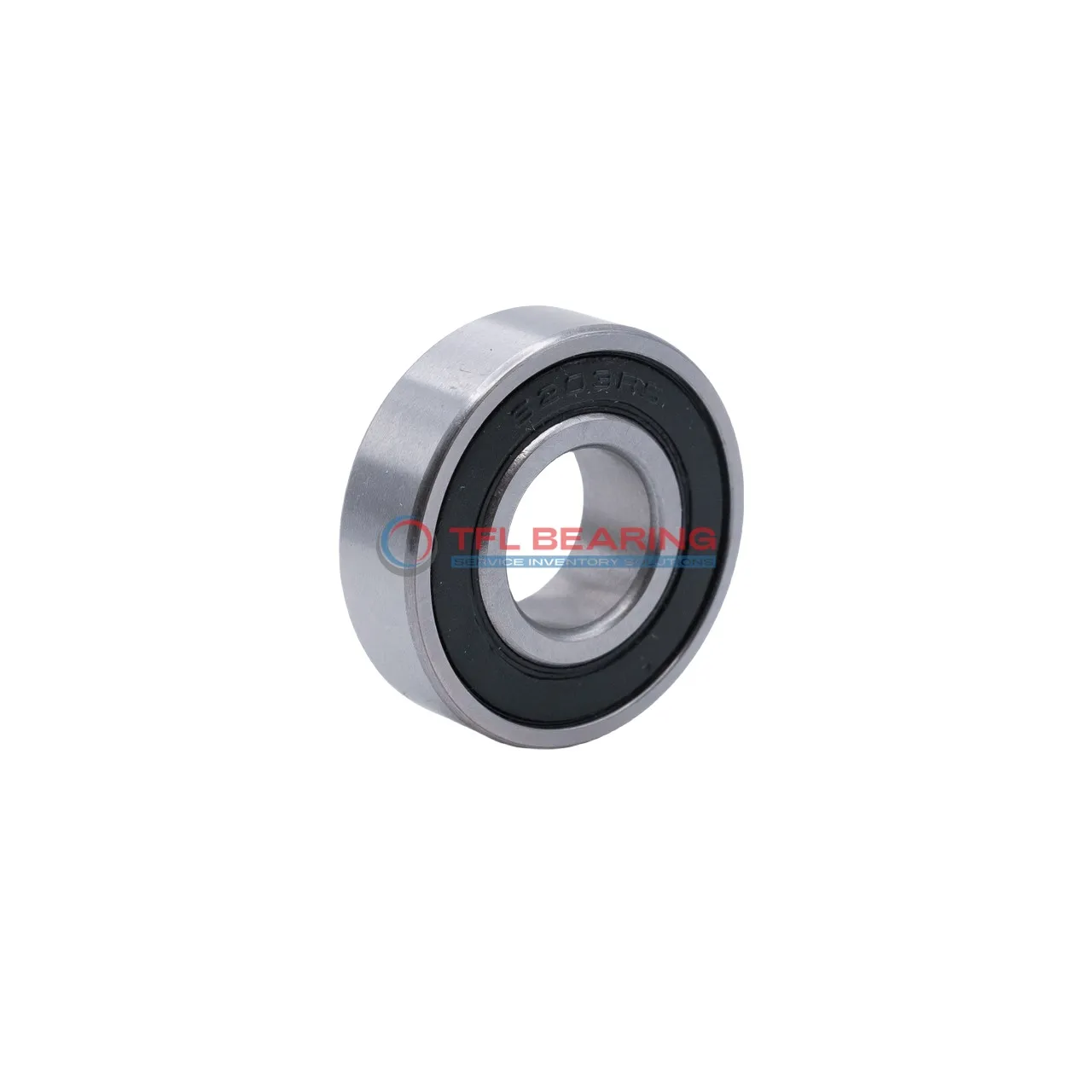

Single Row Deep Groove Ball Bearings 6000-2RSLTN9/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6000-2RSLTN9/C3 Bearing Reduce Friction?

6000-2RSLTN9/C3 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its chrome steel construction ensures durability while reducing friction during operation.

The sealed design of 6000-2RSLTN9/C3 Bearing keeps contaminants out, maintaining performance in various environments.
With a maximum speed of 31,000 rpm, it offers reliable efficiency for high-speed applications.

6000-2RSLTN9/C3 Bearing’s nylon cage helps minimise noise, making it suitable for precision equipment.
Its C3 radial clearance provides flexibility under thermal expansion, ensuring consistent performance.

Application

Common Applications of 6000-2RSLTN9/C3 Bearing
6000-2RSLTN9/C3 Bearing is widely used in small electric motors, thanks to its sealed design which keeps out dust and moisture. Its compact size and reliable performance make it a go-to choice for household appliances like washing machines and fans.

In automotive applications, 6000-2RSLTN9/C3 Bearing fits well in components such as alternators and water pumps, where its radial load capacity ensures smooth operation. The C3 clearance also accommodates thermal expansion during prolonged use.

For light industrial machinery, 6000-2RSLTN9/C3 Bearing offers durability in equipment like conveyor rollers and small gearboxes. The nylon cage reduces friction, making it suitable for moderate-speed operations.

Where Is 6000-2RSLTN9/C3 Bearing Used?
You’ll often find 6000-2RSLTN9/C3 Bearing in office equipment like printers and scanners, where its quiet operation is a plus. The sealed construction helps maintain performance even in dusty environments.

In DIY power tools, 6000-2RSLTN9/C3 Bearing provides dependable support for drills and sanders. Its chrome steel rings and balls ensure longevity under frequent use.

Built for Versatility: 6000-2RSLTN9/C3 Bearing
6000-2RSLTN9/C3 Bearing works well in small robotics, particularly in joints and pivots where smooth movement is key. The metric sizing makes it easy to integrate into various designs.

For hobbyist projects like RC cars or drones, 6000-2RSLTN9/C3 Bearing offers a balance of performance and affordability. Its temperature range suits both indoor and outdoor use.
