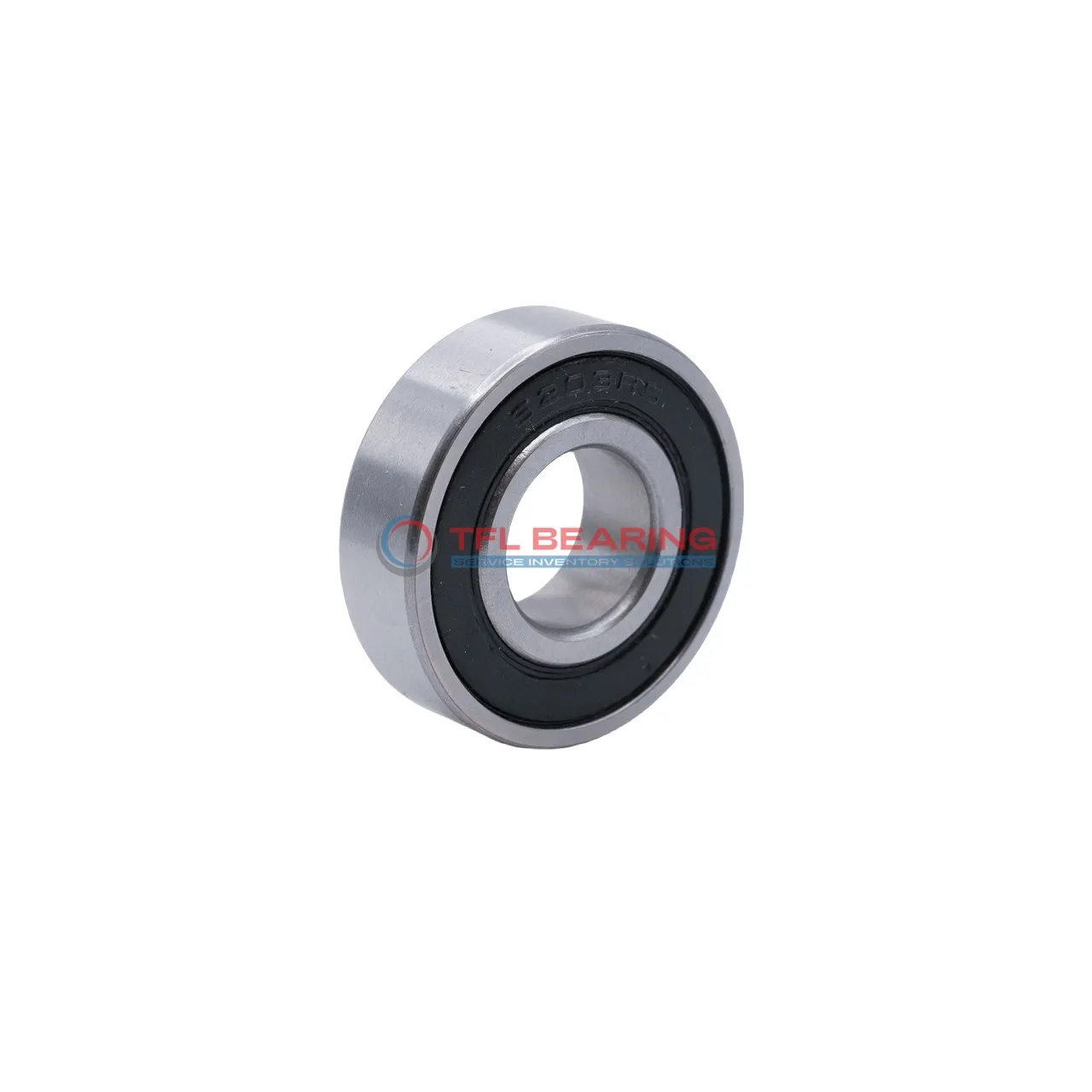

Single Row Deep Groove Ball Bearings 6000-2RZTN9/CNHLTVM045

Single Row Deep Groove Ball Bearings 6000-2RZTN9/CNHLTVM045

The 6000-2RZTN9 is a compact single-row deep groove ball bearing, measuring 10mm by 26mm by 8mm, crafted from durable chrome steel. It handles radial loads up to 1023 lbf and spins smoothly at speeds up to 31,000 RPM.

Its sealed design keeps out dust and dirt, while the nylon cage reduces friction for quiet operation. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small motors, power tools, or appliances where smooth rotation is key.

Weighing just 19g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6000-2RZTN9/CNHLTVM045
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1023 lbf
  • Static Radial Load 438 lbf
  • Max Speed 31000 rpm
  • Weight 19 g
Single Row Deep Groove Ball Bearings 6000-2RZTN9/CNHLTVM045 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6000-2RZTN9/CNHLTVM045 Bearing

6000-2RZTN9/CNHLTVM045 Bearing is designed for radial loads, with a dynamic radial load capacity of 1023 lbf.
Its sealed construction protects against dust and moisture, ensuring reliable operation in various environments.

The chrome steel rings and balls provide durability, while the nylon cage reduces friction and noise.
With a maximum speed of 31,000 rpm, it offers efficient performance for high-speed applications.

6000-2RZTN9/CNHLTVM045 Bearing operates in temperatures from -30°C to 120°C, making it versatile for different conditions.
Its compact size (10 mm×26 mm×8 mm) allows for easy integration into various machinery.

Application

Industrial Uses of 6000-2RZTN9/CNHLTVM045 Bearing
6000-2RZTN9/CNHLTVM045 Bearing is commonly used in small industrial motors and pumps, where its sealed design helps keep contaminants out. The nylon cage reduces friction, making it efficient for continuous operation.

In automotive applications, 6000-2RZTN9/CNHLTVM045 Bearing fits well in electric window mechanisms and cooling fans. Its compact size and radial load capacity make it a reliable choice for these components.

For home appliances like washing machines, 6000-2RZTN9/CNHLTVM045 Bearing ensures smooth rotation in drum assemblies. The chrome steel construction provides durability even with frequent use.

Where Is 6000-2RZTN9/CNHLTVM045 Bearing Used?
You’ll often find 6000-2RZTN9/CNHLTVM045 Bearing in office equipment such as printers and scanners. Its low noise operation and sealed design are ideal for quiet environments.

In small robotics, 6000-2RZTN9/CNHLTVM045 Bearing supports joints and wheels, offering reliable performance. The ABEC 1 tolerance ensures consistent movement without excessive play.
