Single Row Deep Groove Ball Bearings 6000-RSL

Single Row Deep Groove Ball Bearings 6000-RSL

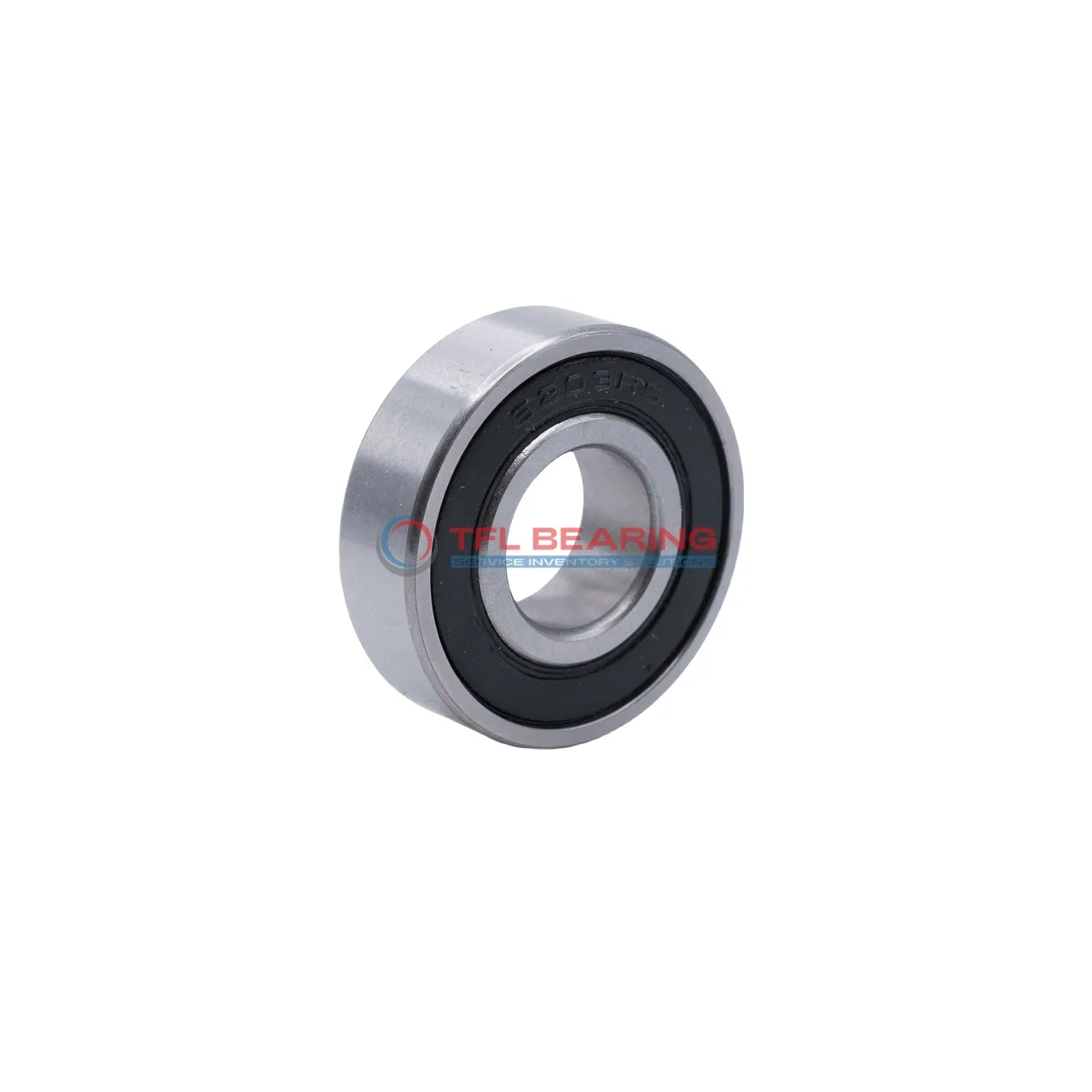

The 6000-RSL is a compact single-row deep groove ball bearing with a 10mm bore and 26mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1068 lbf and spins smoothly at speeds up to 40,000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The stainless steel cage adds durability, ensuring reliable performance in various conditions.

This bearing works well in temperatures from -30°C to 120°C, suitable for small motors or appliances. It’s interchangeable with SKF models, offering a practical replacement option.

Weighing just 0.019kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6000-RSL
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 1068 lbf
  • Static Radial Load 441 lbf
  • Max Speed 40000 rpm
  • Weight 0.019 kg
Single Row Deep Groove Ball Bearings 6000-RSL dimension drawing
Download DWG Download PDF

Features

Performance Features of 6000-RSL Bearing

6000-RSL Bearing is designed with chrome steel rings and balls, offering strong radial load support up to 1068 lbf.
Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.

The stainless steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 40,000 rpm, it delivers reliable performance for high-speed applications.

6000-RSL Bearing operates efficiently within a temperature range of -30° to 120°C.
Its compact size (10 mm×26 mm×8 mm) makes it suitable for space-constrained installations.

Application

Common Applications of 6000-RSL Bearing
6000-RSL Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its sealed design helps keep out dust and moisture, extending the bearing’s lifespan in everyday use.

How Does 6000-RSL Bearing Improve Performance?
In conveyor systems, 6000-RSL Bearing reduces friction, allowing for smoother operation and lower energy consumption. The chrome steel construction ensures it can handle moderate radial loads with ease.

Ideal for Precision: 6000-RSL Bearing
6000-RSL Bearing works well in medical devices like dental drills, where quiet and reliable performance is essential. The stainless steel cage adds durability while maintaining smooth rotation.

Automotive vs Industrial: Applications of 6000-RSL Bearing
In automotive applications, 6000-RSL Bearing is often found in alternators and small gearboxes. For industrial use, it’s a go-to choice for light machinery due to its compact size and sealed protection.
