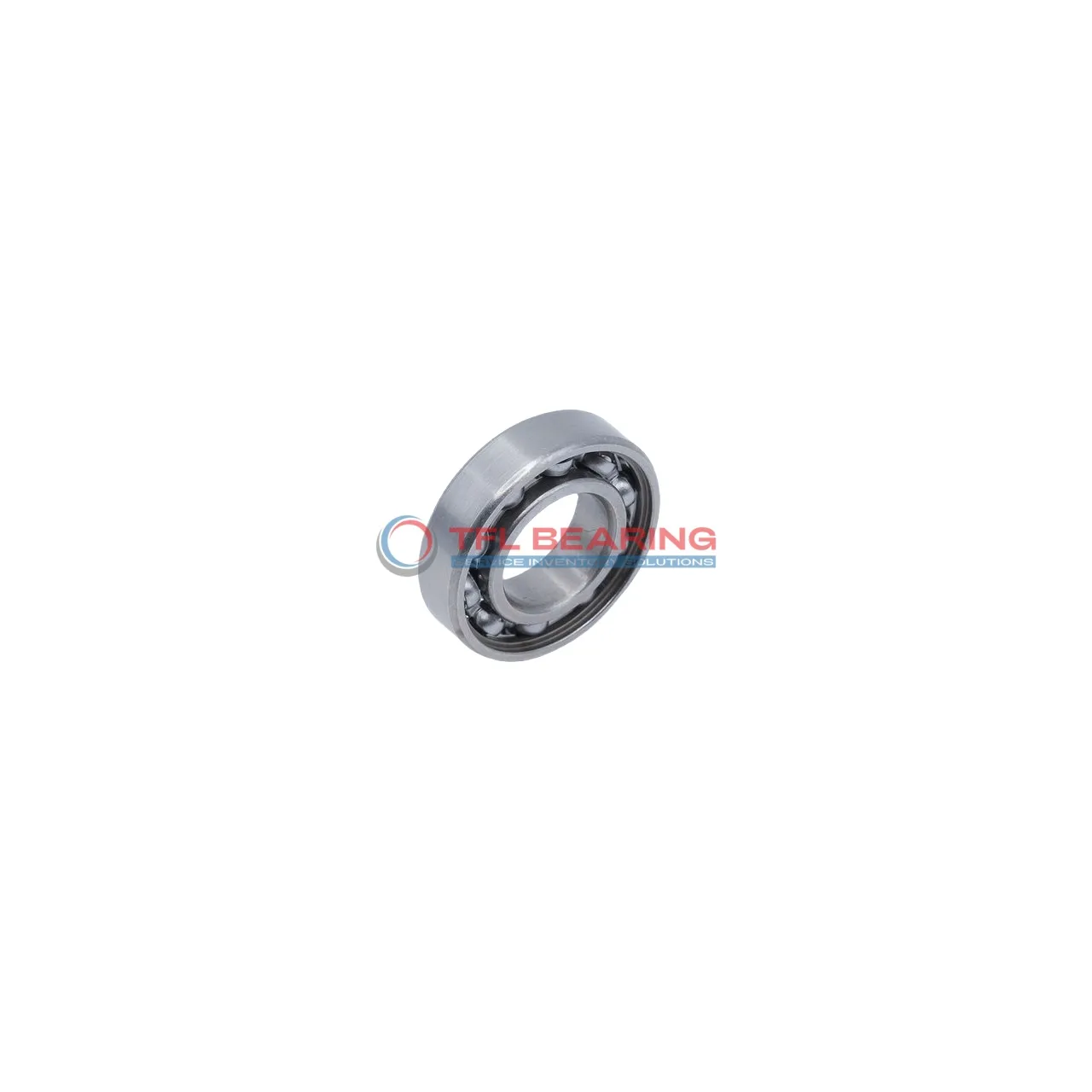

Single Row Deep Groove Ball Bearings 6000/HR11QN

Single Row Deep Groove Ball Bearings 6000/HR11QN

The 6000/HR11QN is a compact single-row deep groove ball bearing, measuring 10mm by 26mm by 8mm, crafted from durable chrome steel. It handles radial loads up to 1023 lbf and spins smoothly at speeds up to 31,000 RPM.

Its open design allows for easy maintenance, while the chrome steel cage ensures reliable performance. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 19g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6000/HR11QN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1023 lbf
  • Static Radial Load 438 lbf
  • Max Speed 31000 rpm
  • Weight 19 g
Single Row Deep Groove Ball Bearings 6000/HR11QN dimension drawing
Download DWG Download PDF

Features

Performance Features of 6000/HR11QN Bearing

6000/HR11QN Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity of 1023 lbf ensures steady performance in various applications.

The open design allows for easy maintenance and adaptability to different lubrication needs.
With a maximum speed of 31,000 rpm, it balances high-speed operation and durability.

6000/HR11QN Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its compact size of 10 mm×26 mm×8 mm makes it suitable for space-constrained installations.

Application

Common Applications of 6000/HR11QN Bearing
6000/HR11QN Bearing is widely used in industrial equipment like small electric motors and pumps, where its compact size and radial load capacity are beneficial. The open design allows for easy lubrication, extending service life in dusty environments.

In automotive applications, 6000/HR11QN Bearing fits well in components such as alternators and cooling fans, providing smooth rotation at high speeds. Its chrome steel construction ensures durability under constant vibration and temperature fluctuations.

For home appliances, 6000/HR11QN Bearing is a reliable choice in devices like washing machines and power tools, where quiet operation is important. The metric dimensions make it easy to replace in most European and Asian models.

How Does 6000/HR11QN Bearing Support High-Speed Operations?
6000/HR11QN Bearing handles high-speed rotations efficiently, making it suitable for small machinery like dental drills or precision spindles. The ABEC 1 tolerance ensures consistent performance without excessive noise.

Its lightweight design (19g) reduces inertia, which is crucial for applications like computer cooling fans. The temperature range (-30°C to 120°C) also allows use in various climates without performance loss.

Built for Versatility: 6000/HR11QN Bearing
This bearing works equally well in both industrial conveyors and delicate laboratory equipment, thanks to its balanced load capacity. The chrome steel balls provide reliable rolling action even after prolonged use.

For DIY enthusiasts, 6000/HR11QN Bearing is handy when repairing small appliances or building custom machinery. Its standard dimensions and open design make installation and maintenance straightforward.

Light-Duty vs Heavy-Duty: Best Uses for 6000/HR11QN Bearing
In light-duty applications like office printers or camera lenses, 6000/HR11QN Bearing offers precise movement with minimal friction. The CN clearance provides just enough play for these sensitive mechanisms.

For more demanding tasks like small gearboxes, it maintains performance thanks to its 1023 lbf dynamic load rating. The steel cage prevents deformation even during unexpected load spikes.
