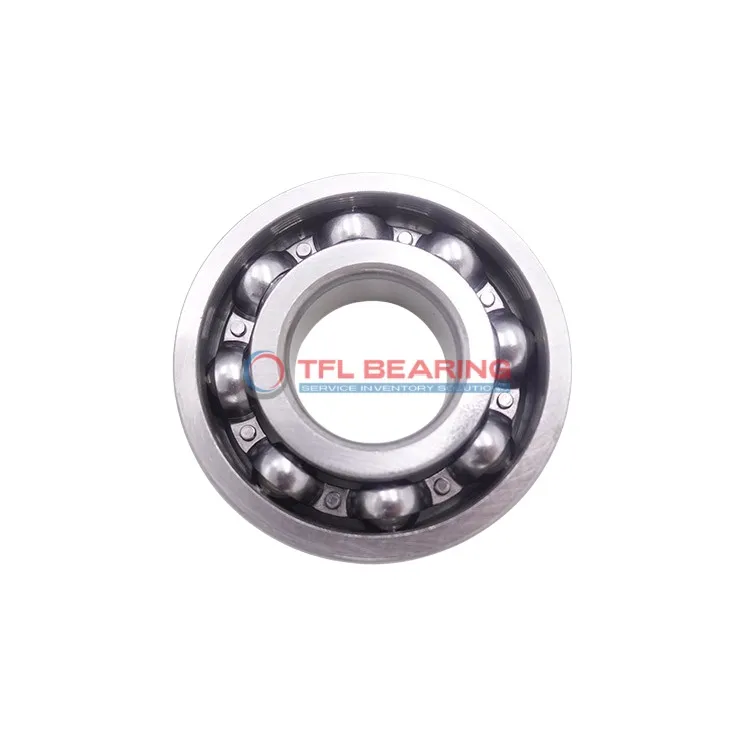

Single Row Deep Groove Ball Bearings 418M

Single Row Deep Groove Ball Bearings 418M

The 418M is a single-row deep groove ball bearing with a 90mm bore and 225mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 26000 lbf and operates smoothly in temperatures from -30°C to 120°C.

Its open design simplifies maintenance, while the chrome steel cage ensures durability. The bearing meets ABEC 1 and ISO P0 tolerance standards for reliable performance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for industrial machinery or heavy equipment where radial loads are common.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various applications. Its compact width of 54mm allows for easy integration into tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 418M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 54 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 26000 lbf
  • Static Radial Load 28000 lbf
Single Row Deep Groove Ball Bearings 418M dimension drawing
Download DWG Download PDF

Features

Performance Features of 418M Bearing

418M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 26000 lbf, making it suitable for demanding applications.

The single-row deep groove design ensures smooth operation and efficient load distribution.
With a temperature range of -30°C to 120°C, it performs reliably in various environments.

418M Bearing’s open design simplifies maintenance, reducing downtime and operational costs.
Its ABEC 1 tolerance class ensures consistent performance for standard precision needs.

Application

Industrial Uses of 418M Bearing
The 418M Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its deep groove design handles radial loads efficiently. Its open seal allows for easy lubrication, making it suitable for high-temperature environments.

In automotive applications, 418M Bearing fits well in gearboxes and wheel hubs, providing reliable performance under constant radial stress. The chrome steel construction ensures durability even in demanding driving conditions.

For automation systems, 418M Bearing supports robotic arms and assembly line equipment, where precision and smooth operation are key. Its ABEC 1 tolerance class offers consistent performance for repetitive tasks.

Where Is 418M Bearing Used?
You’ll often find 418M Bearing in household appliances like washing machines and air conditioners, where its radial load capacity ensures quiet operation. The ISO P0 tolerance makes it a dependable choice for everyday use.

In medical imaging devices, 418M Bearing’s chrome steel components provide stability for precise movements. Its wide temperature range also makes it suitable for various clinical environments.
