Single Row Deep Groove Ball Bearings 16052 MA

Single Row Deep Groove Ball Bearings 16052 MA

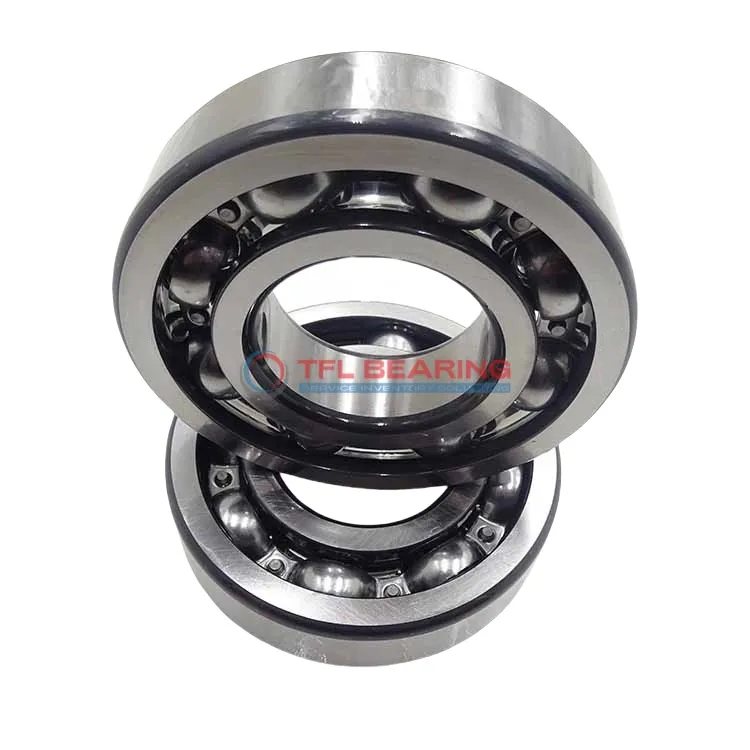

The 16052 MA is a single-row deep groove ball bearing with a 260mm bore and 400mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 53505 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.

Weighing 22.4kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16052 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 260 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 400 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 44 mm
  • Width Tolerance -0.35mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 53505 lbf
  • Static Radial Load 69691 lbf
  • Max Speed 2800 rpm
  • Weight 22400 g
  • price（$） 726.003
Single Row Deep Groove Ball Bearings 16052 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 16052 MA Bearing

16052 MA Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 53505 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 2,800 rpm, it delivers reliable performance in various conditions.

16052 MA Bearing operates efficiently in temperatures ranging from -30° to 120 °C.
Its open design allows for easy lubrication, ensuring smooth operation over time.

The P6 tolerance class guarantees precision, making it ideal for demanding industrial uses.
Its robust construction ensures long service life, reducing maintenance needs.

Application

Industrial Uses of 16052 MA Bearing
The 16052 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its radial load capacity ensures reliable performance. Its open design allows for easy lubrication, making it suitable for high-load environments.

In automotive applications, 16052 MA Bearing supports components like wheel hubs and transmissions, where its durability and precision are key. The metric sizing ensures compatibility with a variety of vehicle designs.

For automation systems, 16052 MA Bearing’s chrome steel construction provides stability in robotic arms and conveyor belts. Its stainless steel cage enhances longevity, even in continuous operation.

Where Is 16052 MA Bearing Used?
You’ll often find 16052 MA Bearing in wind turbines, where its ability to handle radial loads is essential for smooth operation. The wide temperature range also makes it adaptable to varying weather conditions.

In construction equipment, 16052 MA Bearing supports heavy loads in cranes and excavators. Its robust design ensures minimal maintenance, even in tough working environments.

Built for Heavy-Duty Use: 16052 MA Bearing
The 16052 MA Bearing is a solid choice for mining equipment, where its high static radial load capacity is crucial. The chrome steel rings and balls provide excellent wear resistance.

In agricultural machinery, 16052 MA Bearing ensures smooth operation in tractors and harvesters. Its open seal design allows for easy cleaning and maintenance in dusty conditions.

Automotive vs Aerospace: Applications of 16052 MA Bearing
In automotive systems, 16052 MA Bearing is used in drivetrains, offering reliable performance under radial loads. Its precision engineering ensures smooth operation over long periods.

For aerospace applications, 16052 MA Bearing’s lightweight yet durable design makes it suitable for auxiliary systems. The wide temperature range ensures performance in extreme conditions.
