Single Row Deep Groove Ball Bearings 16036

Single Row Deep Groove Ball Bearings 16036

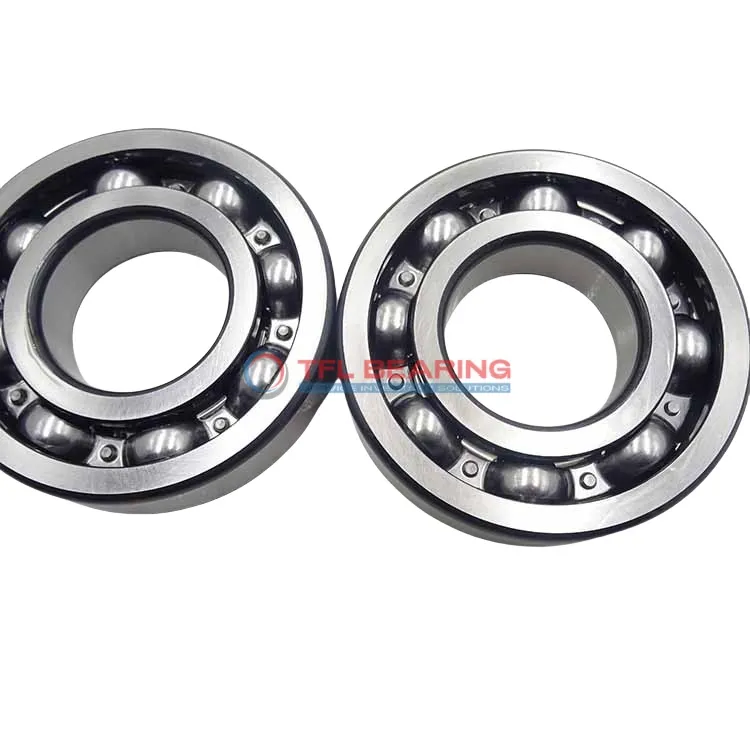

The 16036 is a single-row deep groove ball bearing with a 180mm bore and 280mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 31024 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design simplifies maintenance, while the precision P6 tolerance ensures reliable performance. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for industrial machinery or heavy equipment where radial load support is needed.

Weighing 6510g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16036
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 280 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 31 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 31024 lbf
  • Static Radial Load 32822 lbf
  • Max Speed 3000 rpm
  • Weight 6510 g
  • price（$） 187.353
Single Row Deep Groove Ball Bearings 16036 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16036 Bearing

16036 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 31024 lbf, making it suitable for demanding applications.

The single-row deep groove design ensures smooth operation and efficient load distribution.
With a maximum speed of 3,000 rpm, it balances performance and durability.

16036 Bearing operates in temperatures from -30° to 120°C, adapting to various working conditions.
Its precise P6 tolerance class guarantees reliable performance in high-precision machinery.

The open seal type allows for easy maintenance and inspection.
Weighing 6510 g, it provides a robust solution without unnecessary bulk.

Application

Industrial Uses of 16036 Bearing
16036 Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its robust radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending service life in demanding conditions.

What Makes 16036 Bearing a Preferred Choice?
With its chrome steel construction, 16036 Bearing handles high radial loads in applications such as conveyor systems and electric motors. Its P6 tolerance class ensures precision, making it suitable for equipment requiring accurate alignment.

Built for Heavy-Duty Use: 16036 Bearing
In automotive applications, 16036 Bearing supports components like wheel hubs and transmissions, where durability is key. The wide temperature range also makes it adaptable to various operating environments.

Medical vs Industrial: Where 16036 Bearing Excels
While 16036 Bearing isn’t typically used in medical devices, it shines in industrial settings like compressors and fans. Its static radial load capacity of 32822 lbf makes it ideal for equipment with heavy, constant loads.

Perfect Fit for Automation: 16036 Bearing
In automated production lines, 16036 Bearing ensures smooth operation in robotic arms and assembly systems. The metric sizing and compatibility with SKF models add to its versatility across different machinery types.
