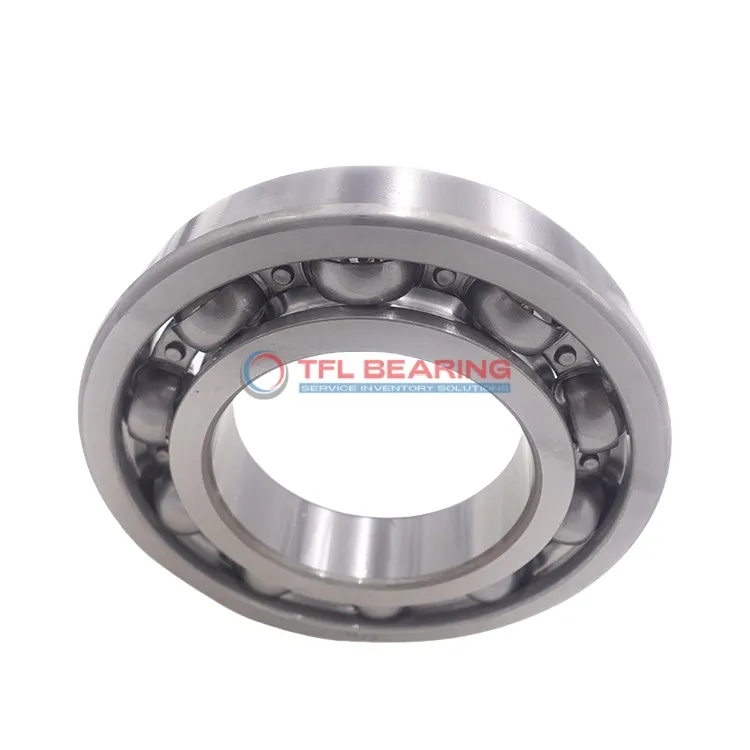

Single Row Deep Groove Ball Bearings 16030

Single Row Deep Groove Ball Bearings 16030

The 16030 is a single-row deep groove ball bearing with a 150mm bore and 225mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 20727 lbf and operates smoothly at speeds up to 2900 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for radial load applications like electric motors or conveyor systems.

Weighing 2600g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16030
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 24 mm
  • Width Tolerance -0.250mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 20727 lbf
  • Static Radial Load 22031 lbf
  • Max Speed 2900 rpm
  • Weight 2600 g
  • price（$） 107.334
Single Row Deep Groove Ball Bearings 16030 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16030 Bearing

16030 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 20727 lbf.
Its stainless steel cage ensures smooth operation, reducing friction and wear.

The open design of 16030 Bearing allows for easy lubrication, maintaining performance in various conditions.
With a maximum speed of 2,900 rpm, it balances efficiency and durability.

16030 Bearing operates in temperatures from -30° to 110°C, suitable for diverse environments.
Its precise dimensions and tolerances ensure reliable fit and function in applications.

Application

Common Applications of 16030 Bearing
16030 Bearing is widely used in industrial machinery, such as large pumps and gearboxes, where its radial load capacity ensures reliable performance. The open design simplifies lubrication, making it suitable for high-maintenance environments.

In automotive applications, 16030 Bearing can be found in heavy-duty transmissions and axle systems, handling substantial radial forces. Its chrome steel construction provides durability under continuous use.

For automation systems, 16030 Bearing supports robotic arms and conveyor belts, offering smooth operation. The ABEC-1 tolerance ensures consistent performance in precision-driven tasks.

In household appliances like washing machines, 16030 Bearing’s robust design handles constant motion and load. The stainless steel cage adds longevity, even in daily use scenarios.
