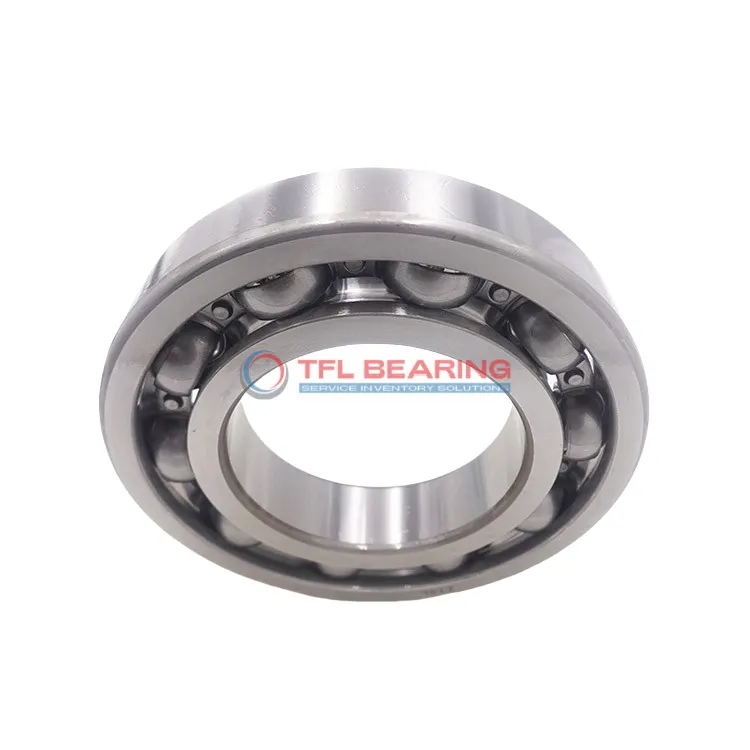

Single Row Deep Groove Ball Bearings 16028 MA/C3

Single Row Deep Groove Ball Bearings 16028 MA/C3

The 16028 MA/C3 is a single-row deep groove ball bearing with a 140mm bore and 210mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1812 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design allows for easy lubrication, while the machined metal cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 2000g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16028 MA/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 22 mm
  • Width Tolerance -0.250mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 19446 lbf
  • Max Speed 3000 rpm
  • Weight 2000 g
Single Row Deep Groove Ball Bearings 16028 MA/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16028 MA/C3 Bearing

16028 MA/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1812 lbf, making it suitable for various industrial applications.
The machined metal cage ensures proper ball alignment, enhancing durability and performance.
With a maximum speed of 3,000 rpm, it provides reliable operation in demanding conditions.

How Is 16028 MA/C3 Bearing Engineered for Reliability?

16028 MA/C3 Bearing features a single-row deep groove design, optimised for radial load handling.
The chrome steel construction resists wear, ensuring a long service life even under heavy loads.
Its C3 radial clearance allows for thermal expansion, maintaining smooth operation.
The open seal design simplifies maintenance while keeping contaminants at bay.

Designed for Durability: 16028 MA/C3 Bearing

16028 MA/C3 Bearing’s chrome steel components provide excellent resistance to wear and corrosion.
Its machined metal cage keeps the balls securely in place, reducing friction and noise.
The bearing operates efficiently within a temperature range of -30°C to 120°C.
With a static radial load capacity of 19446 lbf, it ensures reliable performance in tough conditions.

Application

Common Applications of 16028 MA/C3 Bearing
In industrial settings, 16028 MA/C3 Bearing is commonly used in heavy machinery like pumps and compressors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

Where Is 16028 MA/C3 Bearing Used?
You’ll often find 16028 MA/C3 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its robust construction. Its metric sizing makes it a versatile choice for various vehicle models.

Ideal for Precision: 16028 MA/C3 Bearing
For medical imaging devices, 16028 MA/C3 Bearing offers smooth operation due to its chrome steel components. The machined metal cage adds durability, making it suitable for high-precision equipment.

Automotive vs Aerospace: Applications of 16028 MA/C3 Bearing
In automotive systems, 16028 MA/C3 Bearing handles radial loads in components like differentials. While in aerospace, its temperature range makes it useful for auxiliary equipment requiring consistent performance.

Practical Applications of 16028 MA/C3 Bearing
In household appliances like washing machines, 16028 MA/C3 Bearing provides quiet and efficient operation. Its C3 clearance ensures it can handle minor misalignments without compromising performance.
