Single Row Cylindrical Roller Bearings With Inner Ring NUP 205 ECP

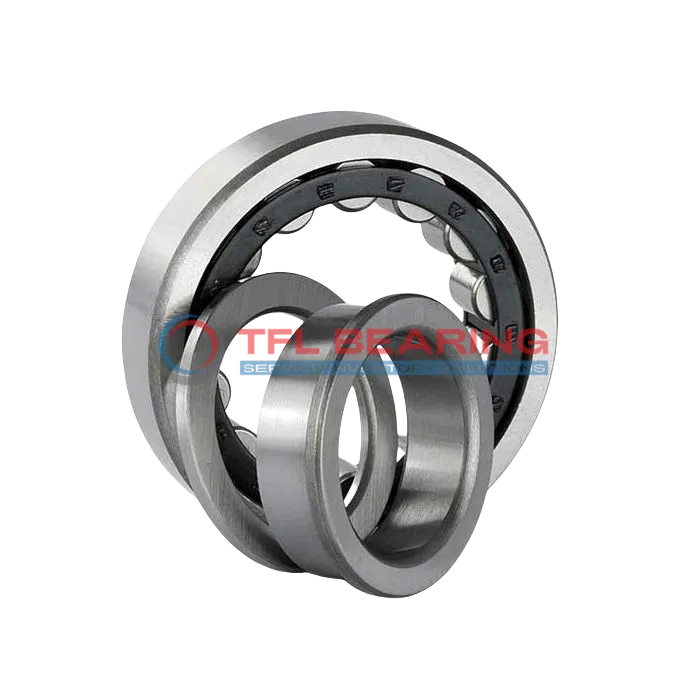

Single Row Cylindrical Roller Bearings With Inner Ring NUP 205 ECP

The NUP 205 ECP is a single row cylindrical roller bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 7312 lbf and spins smoothly at speeds up to 16000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures durability and centred roller alignment. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for machinery requiring precise radial and axial load support, such as gearboxes or electric motors.

Weighing just 0.14kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe and reliable use.

The inner ring design with a 34.7mm shoulder diameter provides added stability, while the 1mm chamfer ensures easy installation. Suitable for applications where space and performance are key considerations.

Its 15mm width and precise tolerances make it a compact yet efficient solution for demanding environments. Perfect for both industrial and automotive uses where reliability is essential.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NUP 205 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 34.7 mm
  • Chamfer Dimension r1,2(min.) 1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 7312 lbf
  • Static Radial Load 6075 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 16000 rpm
  • Weight 0.14 kg
  • Shoulder Dia Of Outer Ring 43.3 mm
  • Raceway Diameter Of Inner Ring 31.5 mm
  • Chamfer Dimension Of Loose Flange Ring(r3,4)(min.) 0.6 mm
Single Row Cylindrical Roller Bearings With Inner Ring NUP 205 ECP dimension drawing
Download DWG Download PDF

Features

How Does NUP 205 ECP Bearing Handle Combined Loads?

NUP 205 ECP Bearing features a single-row cylindrical roller design, optimised for both radial and axial loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 7312 lbf.
The PA66 cage keeps rollers centred, reducing friction and enhancing performance.
With a maximum speed of 16,000 rpm, it delivers reliable operation in various conditions.

Application

Industrial Uses of NUP 205 ECP Bearing
NUP 205 ECP Bearing is commonly used in machine tools, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability in high-speed operations.

Where Is NUP 205 ECP Bearing Used?
You’ll find NUP 205 ECP Bearing in conveyor systems, where its open design allows for easy lubrication and maintenance. The PA66 cage keeps rollers centred, reducing friction and wear.

Built for Heavy-Duty Use: NUP 205 ECP Bearing
NUP 205 ECP Bearing works well in gearboxes, supporting combined loads with its robust design. Its temperature range of -30° to 110°C makes it suitable for various industrial environments.

Automotive vs Aerospace: Applications of NUP 205 ECP Bearing
In automotive applications, NUP 205 ECP Bearing fits well in transmission systems due to its high-speed capability. For aerospace, its precision and reliability are valued in auxiliary equipment.

Perfect Fit for Automation: NUP 205 ECP Bearing
NUP 205 ECP Bearing is ideal for robotic arms, where smooth movement and load handling are essential. The metric sizing ensures compatibility with many automation components.
