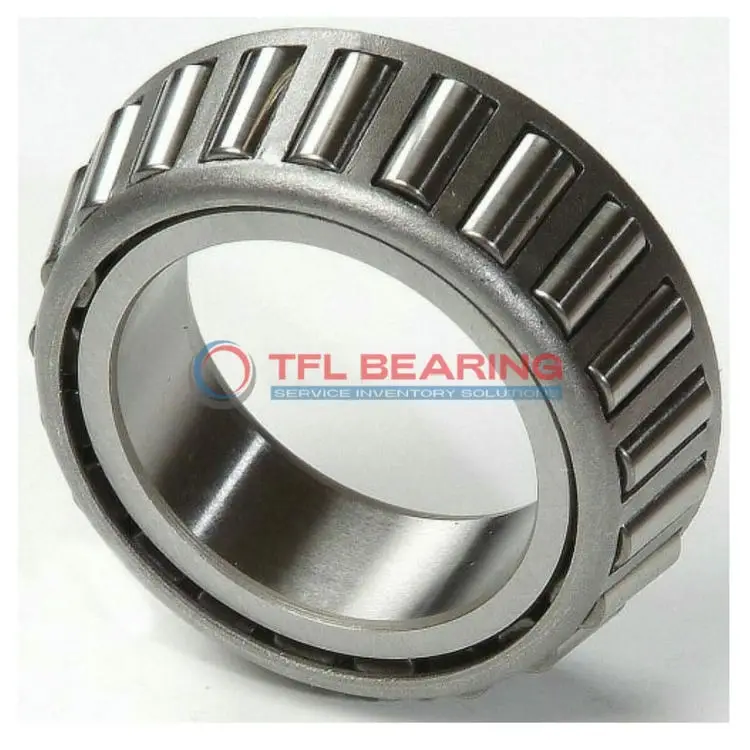

HM801346 Single Cones (Imperial)

HM801346 Single Cones (Imperial)

The HM801346 is a single-row tapered roller bearing cone with a 1.5-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 23,100 lbf and static loads up to 29,300 lbf.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The cone has standard radial clearance, with options for C3, C4, or C5 if needed.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.

It operates smoothly in temperatures from -30°C to 110°C and meets RoHS and REACH standards for safe use. The effective center location of -0.19″ helps with precise alignment in assemblies.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM801346
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number HM801346-HM801310 , HM801346-HM801311
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.93"
  • Cone Backface Backing Diameter 2.01"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.06"
  • Effective Center Location -0.19"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 23100 lbf
  • Static Radial Load 29300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5980 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 40200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5590 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 10400 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Does HM801346 Bearing Handle Combined Loads?

HM801346 Bearing is crafted from chrome steel, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 23,100 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains proper roller alignment, reducing wear and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Why Choose HM801346 Bearing for Precision Tasks?

HM801346 Bearing features a tapered roller design, providing precise load distribution and smooth operation.
The chrome steel construction enhances durability, making it suitable for heavy-duty applications.
Its standard radial clearance options allow for flexibility in different operational setups.
With ABEC-1 rating, it balances performance and cost-effectiveness for industrial use.

Built for Reliability: HM801346 Bearing

HM801346 Bearing’s single-row construction ensures stability under combined loads.
The steel cage and chrome steel rollers work together to minimise friction and wear.
It handles dynamic thrust loads up to 5,590 lbf, making it versatile for various applications.
Compliant with RoHS and REACH standards, it meets environmental and safety regulations.

Steel vs Ceramic Bearings: Strengths of HM801346 Bearing

HM801346 Bearing uses chrome steel for its rings and rollers, providing excellent strength and durability.
The material choice ensures reliable performance under high radial and thrust loads.
Its steel cage design offers robust support, maintaining roller alignment during operation.
With a wide temperature range, it adapts to different working conditions effectively.

Application

Industrial Uses of HM801346 Bearing
HM801346 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

Where Is HM801346 Bearing Used?
You’ll find HM801346 Bearing in automotive applications like wheel hubs and differential systems, thanks to its ability to manage both radial and thrust loads. Its inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: HM801346 Bearing
HM801346 Bearing excels in industrial gearboxes, where its steel cage and standard radial clearance provide reliable performance. The open seal design allows for easy lubrication, extending its service life.

Automotive vs Industrial: Applications of HM801346 Bearing
In automotive settings, HM801346 Bearing supports high-load components like axles, while in industrial settings, it’s ideal for conveyor systems. Its ABEC-1 rating ensures consistent performance across both sectors.

Perfect Fit for Automation: HM801346 Bearing
HM801346 Bearing works well in automated machinery, such as robotic arms, where precise load handling is needed. The tapered roller design reduces friction, ensuring smooth operation over long periods.
