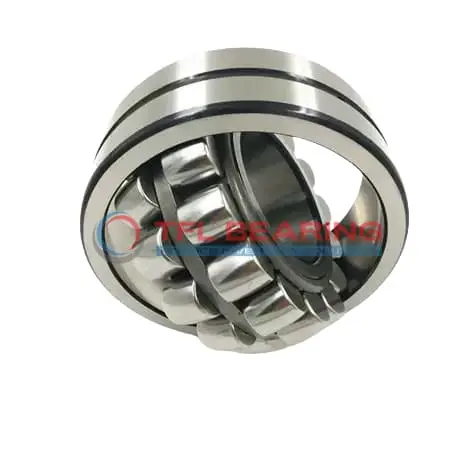

22216 E/C5 Double Row Spherical Roller Bearing

22216 E/C5 Double Row Spherical Roller Bearing

The 22216 E/C5 is a double-row spherical roller bearing with an 80mm bore and 140mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 54629 lbf and operates smoothly at speeds up to 6000 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a C5 radial clearance, it’s suited for applications requiring flexibility under load, such as industrial gearboxes or heavy machinery. Weighing 2.1kg, it’s sturdy yet manageable for its size.

Compliant with RoHS and REACH standards, this model is interchangeable with SKF bearings, making it a practical choice for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22216 E/C5
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 140 x 33 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 33 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 94.7 mm
  • Shoulder/Recess Dia Of Outer Ring 124 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 54629 lbf
  • Static Radial Load 60698 lbf
  • Max Speed 6000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C5
  • RoHs Compliant
  • REACH Compliant
  • Weight 2.1 kg

Features

Performance Features of 22216 E/C5 Bearing

22216 E/C5 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 54629 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 6000 rpm, it delivers reliable performance in various industrial settings.

22216 E/C5 Bearing operates in temperatures from -30° to 200°C, adapting to harsh environments.
The C5 radial clearance provides optimal performance under varying thermal conditions.

Application

Industrial Uses of 22216 E/C5 Bearing
The 22216 E/C5 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently.
Its spherical roller construction allows for slight misalignment, making it suitable for rugged industrial environments.

Where Is 22216 E/C5 Bearing Used?
You’ll often find 22216 E/C5 Bearing in mining equipment, where its high dynamic load capacity ensures reliable performance under extreme conditions.
The C5 radial clearance also helps accommodate thermal expansion in high-temperature applications.

Built for Heavy-Duty Use: 22216 E/C5 Bearing
This bearing excels in paper mill machinery, supporting heavy rollers with its robust chrome steel construction.
The open design simplifies lubrication, extending service life in demanding operations.

Automotive vs Aerospace: Applications of 22216 E/C5 Bearing
In automotive applications, 22216 E/C5 Bearing is used in truck wheel hubs, providing durability under combined loads.
For aerospace, its high-speed capability makes it suitable for auxiliary gearboxes, though weight considerations may limit its use.

Practical Applications of 22216 E/C5 Bearing
In wind turbines, 22216 E/C5 Bearing handles variable loads and misalignment, ensuring smooth rotation.
The steel cage enhances stability, even in harsh weather conditions.
