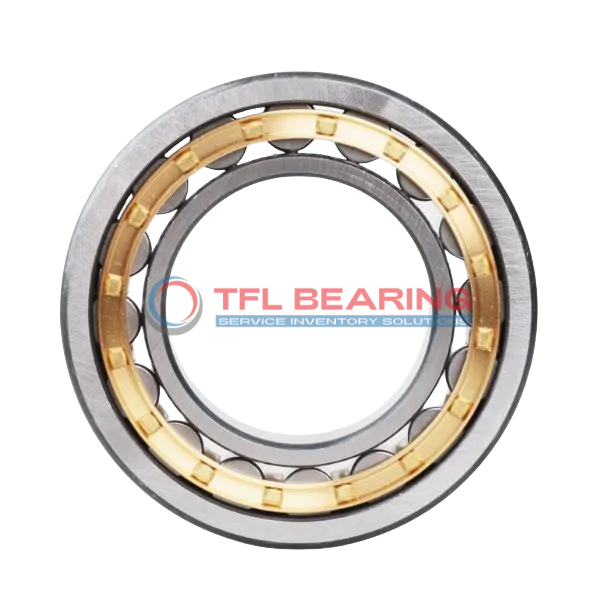

Single Row Cylindrical Roller Bearings With Inner Ring NU 240 ECM

Brand: TFL Bearing Interchangeable: SKF NU 240 ECM 200 mm × 360 mm × 58 mm Metric Open
Part number: NU 240 ECM
Single Row Cylindrical Roller Bearings With Inner Ring NU 240 ECM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia200 mm
Bore Dia Tolerance-0.03mm to 0
Outer Dia360 mm
Outer Dia Tolerance-0.04mm to 0
Width58 mm
Width Tolerance-0.30mm to 0
Chamfer Dimension r1,2(min.)4 mm
Chamfer Dimension r3,4(min.)4 mm
Shoulder Dia Of Outer Ring310.37 mm
Raceway Diameter Of Inner Ring243 mm
Performance
Dynamic Radial Load191,250 lbf
Static Radial Load229,500 lbf
Temperature Range-30° to 110 °C
Max Speed2,000 rpm
Characteristics
Permissible Axial Displacement(max.)2.6 mm
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined
ConstructionSingle Row
Inner Ring TypeWith Inner Ring
Seal TypeOpen
LubricationGrease, Oil
Weight26.4 kg
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialBrass cage, roller centred
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The NU 240 ECM is a single-row cylindrical roller bearing with a 200mm bore and 360mm outer diameter, built from tough chrome steel. It handles combined loads up to 191250 lbf and runs smoothly at speeds up to 2000 RPM.

Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

With a 58mm width and 4mm chamfered edges, it fits securely in industrial setups. Ideal for heavy machinery like gearboxes or compressors where high radial loads are common.

Weighing 26.4kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF models.

Features

How Does NU 240 ECM Bearing Handle Combined Loads?

NU 240 ECM Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 191250 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers centred, reducing friction and extending operational life.
With a maximum speed of 2000 rpm, it delivers consistent performance in various industrial settings.

Application

Industrial Uses of NU 240 ECM Bearing
NU 240 ECM Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at speeds up to 2000 rpm.

Where Is NU 240 ECM Bearing Used?
In wind turbines, NU 240 ECM Bearing supports the main shaft, thanks to its robust chrome steel construction and ability to withstand combined loads. Its open design allows for easy lubrication, extending service life in harsh environments.

Built for Heavy-Duty Use: NU 240 ECM Bearing
NU 240 ECM Bearing excels in steel mills and mining equipment, where its 360 mm outer diameter provides stability under extreme conditions. The metric sizing makes it a versatile choice for global industrial applications.

Automotive vs Aerospace: Applications of NU 240 ECM Bearing
In automotive applications, NU 240 ECM Bearing is found in large truck transmissions, while in aerospace, it supports auxiliary systems. Its temperature range of -30° to 110°C ensures reliability across climates.

Perfect Fit for Automation: NU 240 ECM Bearing
NU 240 ECM Bearing is ideal for robotic assembly lines, where its precise tolerances and high dynamic load capacity reduce downtime. The grease or oil lubrication options adapt to various operational needs.
