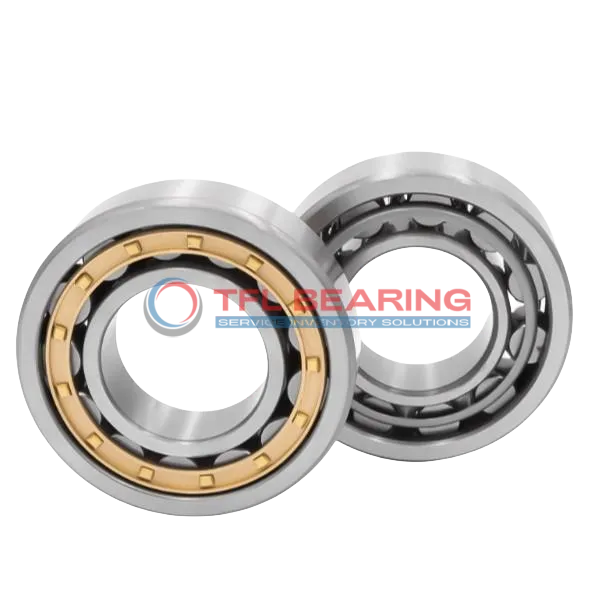

Single Row Cylindrical Roller Bearings With Inner Ring NU 2356 MA

Single Row Cylindrical Roller Bearings With Inner Ring NU 2356 MA

The NU 2356 MA is a single row cylindrical roller bearing with a 280mm bore and 580mm outer diameter, built from tough chrome steel. It handles combined loads up to 607500 lbf and runs smoothly at speeds up to 2000 RPM.

Its brass cage design ensures durability, while the open structure allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gearboxes where radial and axial loads are present.

Weighing 230kg, it’s a robust unit designed for long-lasting performance. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 2356 MA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 280 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 580 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 175 mm
  • Width Tolerance -0.35mm to 0
  • Chamfer Dimension r1,2(min.) 6 mm
  • Permissible Axial Displacement(max.) 6.6 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, outer ring centred
  • Dynamic Radial Load 607500 lbf
  • Static Radial Load 967500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2000 rpm
  • Weight 230 kg
  • Shoulder Dia Of Outer Ring 467 mm
  • Raceway Diameter Of Inner Ring 362 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 2356 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of NU 2356 MA Bearing

NU 2356 MA Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 607500 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth operation by keeping the rollers aligned and reducing friction.
With a maximum speed of 2000 rpm, it delivers reliable performance in various industrial settings.

NU 2356 MA Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, extending its service life.

Application

Industrial Uses of NU 2356 MA Bearing
NU 2356 MA Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its cylindrical roller design handles high radial loads effectively. The brass cage ensures smooth operation even at high speeds up to 2000 rpm.

Where Is NU 2356 MA Bearing Used?
In automotive manufacturing, NU 2356 MA Bearing supports large drivetrain components, thanks to its robust chrome steel construction. Its metric sizing makes it a versatile choice for European and Asian heavy vehicle applications.

Built for Heavy-Duty Use: NU 2356 MA Bearing
NU 2356 MA Bearing excels in wind turbine applications, where its ability to handle combined loads and axial displacement is crucial. The open design allows for easy lubrication, extending service life in harsh environments.

Automotive vs Aerospace: Applications of NU 2356 MA Bearing
NU 2356 MA Bearing is ideal for automotive gearboxes, but it also finds use in aerospace landing gear systems. Its high static radial load capacity of 967500 lbf ensures reliability in both sectors.

Key Fields for NU 2356 MA Bearing
NU 2356 MA Bearing is a go-to choice for mining equipment, where its durability and resistance to heavy loads are essential. The grease or oil lubrication options provide flexibility for different operating conditions.
