569-563DC TDO (Two-Row Double-Outer Race) (Imperial)

569-563DC TDO (Two-Row Double-Outer Race) (Imperial)

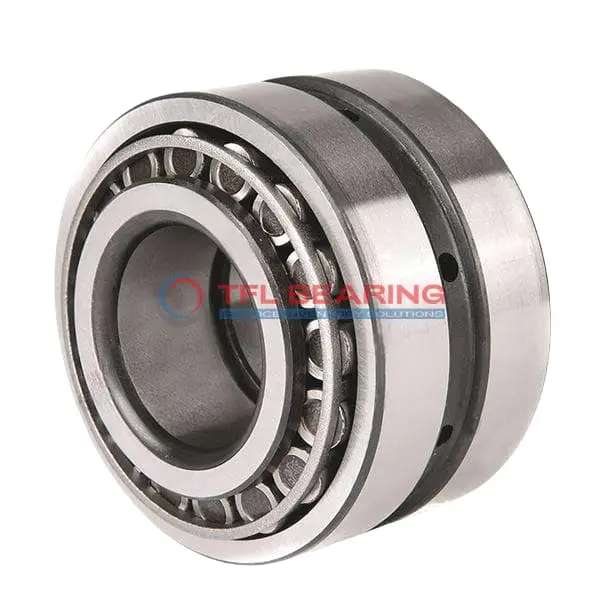

The 569-563DC is a double-row tapered roller bearing with a 2.5576″ bore and 5″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 76900 lbf and is designed for long-lasting performance in demanding conditions.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation. The bearing works well in temperatures ranging from -30°C to 110°C, making it versatile for various environments.

This model is part of the 565 series and comes with standard radial clearance, though options like C3, C4, or C5 are available. Ideal for heavy-duty applications such as industrial gearboxes or construction equipment.

Weighing 9.55 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 569-563DC
  • Brand TFL
  • Size 2.5576" x 5" x 1.424"
  • Bore Dia 2.5576"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5625"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.424"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.1874"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 3.19"
  • Cup Frontface Backing Diameter 4.72"
  • Cage Cone Backface Clearance 0.1"
  • Dynamic Radial Load 76900 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 569
  • Cup Part Number 563DC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 7130 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 19900 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 9.55 lb

Features

Performance Features of 569-563DC Bearing

569-563DC Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 76,900 lbf, ensuring reliable performance in demanding conditions.

The double-row tapered roller design enhances stability and load distribution.
With a standard radial clearance, it provides flexibility for various applications.

569-563DC Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, reducing wear and extending service life.

Application

Industrial Uses of 569-563DC Bearing
The 569-563DC Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its double-row design handles combined radial and thrust loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 569-563DC Bearing Used?
You’ll often find 569-563DC Bearing in automotive applications like truck wheel hubs, where its tapered roller design provides stability under heavy loads. The inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: 569-563DC Bearing
569-563DC Bearing excels in industrial gearboxes, offering reliable performance even under high stress. The open seal type allows for easy lubrication, extending its service life in continuous operation.

Automotive vs Aerospace: Applications of 569-563DC Bearing
In automotive systems, 569-563DC Bearing supports axles and transmissions, while in aerospace, it’s used in landing gear mechanisms. Its ABEC-1 rating ensures consistent precision across both fields.

Key Fields for 569-563DC Bearing
569-563DC Bearing is ideal for agricultural machinery, where its robust design withstands dirt and debris. The standard radial clearance option makes it versatile for various load conditions.
