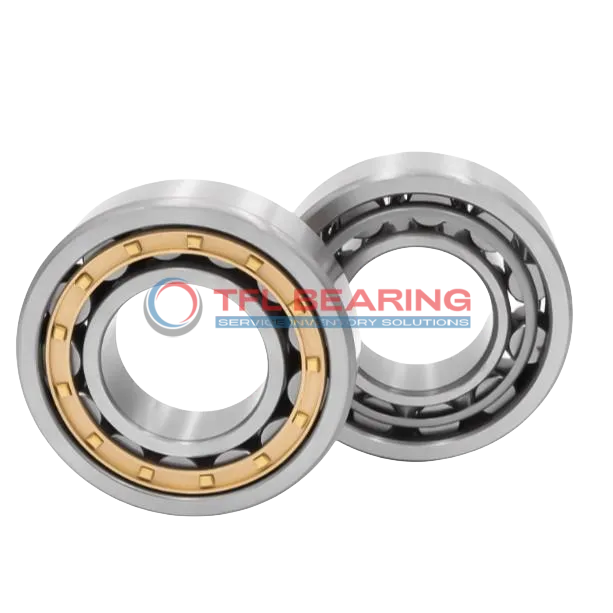

Single Row Cylindrical Roller Bearings With Inner Ring NU 2060 ECMA

Single Row Cylindrical Roller Bearings With Inner Ring NU 2060 ECMA

The NU 2060 ECMA is a single-row cylindrical roller bearing with a 300mm bore and 460mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 339,750 lbf and runs smoothly at speeds up to 2000 RPM.

Its brass cage and open design allow for easy lubrication with grease or oil, while the chrome steel rollers ensure durability. The bearing operates well in temperatures from -30°C to 110°C.

With a 95mm width and 4mm chamfer, it fits snugly in heavy-duty setups. The inner ring design helps manage axial displacement up to 4.1mm.

This model is interchangeable with SKF bearings, making it a reliable choice for replacements. Ideal for industrial machinery like gearboxes or presses where high radial loads are common. Weighing 62kg, it’s built for robust performance while complying with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 2060 ECMA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 95 mm
  • Width Tolerance -0.35mm to 0
  • Chamfer Dimension r1,2(min.) 4 mm
  • Permissible Axial Displacement(max.) 4.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, outer ring centred
  • Dynamic Radial Load 339750 lbf
  • Static Radial Load 585000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2000 rpm
  • Weight 62 kg
  • Shoulder Dia Of Outer Ring 410 mm
  • Raceway Diameter Of Inner Ring 341 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 2060 ECMA dimension drawing
Download DWG Download PDF

Features

Performance Features of NU 2060 ECMA Bearing

NU 2060 ECMA Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 339750 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 2000 rpm, it balances durability and efficiency in demanding conditions.

NU 2060 ECMA Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise chamfer dimensions of 4 mm ensure easy installation and alignment.
This bearing is ideal for applications requiring high radial load capacity and long service life.

Application

Industrial Uses of NU 2060 ECMA Bearing
NU 2060 ECMA Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at speeds up to 2000 rpm.

In automotive applications, NU 2060 ECMA Bearing supports large drivetrain components, such as truck transmissions, due to its robust chrome steel construction. Its metric sizing makes it a reliable choice for European and Asian vehicle manufacturers.

For wind turbine systems, NU 2060 ECMA Bearing’s ability to withstand combined loads makes it ideal for rotor shaft support. The open design allows for easy lubrication, extending service life in harsh outdoor conditions.

In mining equipment, NU 2060 ECMA Bearing excels in conveyor systems and crushers, where its high static radial load capacity ensures durability. The temperature range of -30° to 110°C suits various operational environments.

NU 2060 ECMA Bearing also finds use in paper mill machinery, particularly in rollers requiring precise alignment. Its chamfered edges reduce stress concentrations, enhancing performance under continuous operation.
