Single Row Cylindrical Roller Bearings With Inner Ring NU 2260 MA

Brand: TFL Bearing Interchangeable: SKF NU 2260 MA 300 mm × 540 mm × 140 mm Metric Open
Part number: NU 2260 MA

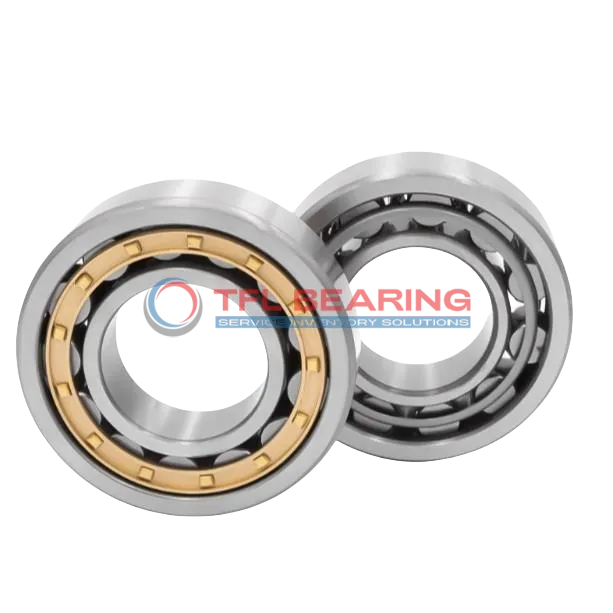

Single Row Cylindrical Roller Bearings With Inner Ring NU 2260 MA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia300 mm
Bore Dia Tolerance-0.035mm to 0
Outer Dia540 mm
Outer Dia Tolerance-0.05mm to 0
Width140 mm
Width Tolerance-0.35mm to 0
Chamfer Dimension r1,2(min.)5 mm
Shoulder Dia Of Outer Ring451 mm
Raceway Diameter Of Inner Ring364 mm
Performance
Dynamic Radial Load470,250 lbf
Static Radial Load776,250 lbf
Temperature Range-30° to 110 °C
Max Speed2,000 rpm
Characteristics
Permissible Axial Displacement(max.)5.6 mm
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined
ConstructionSingle Row
Inner Ring TypeWith Inner Ring
Seal TypeOpen
LubricationGrease, Oil
Weight145 kg
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialBrass cage, outer ring centred
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The NU 2260 MA is a single row cylindrical roller bearing with a 300mm bore and 540mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 470250 lbf and runs smoothly at speeds up to 2000 RPM.

Its brass cage ensures durability, while the open design allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a reliable choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common.

Weighing 145kg, it’s a robust bearing designed for long-lasting performance. Compliant with RoHS and REACH standards for safe use.

Features

Performance Features of NU 2260 MA Bearing

NU 2260 MA Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 470,250 lbf, ensuring reliable operation in heavy-duty applications.

The brass cage, centred on the outer ring, maintains roller alignment for reduced wear and extended life.
With a maximum speed of 2,000 rpm, it delivers both durability and efficiency in demanding conditions.

NU 2260 MA Bearing operates smoothly in temperatures from -30° to 110°C, suitable for various environments.
Its open design allows for easy lubrication with grease or oil, simplifying maintenance.

The precise chamfer dimensions and tolerances ensure seamless integration into existing systems.
Weighing 145 kg, it balances strength and stability for industrial applications.

Application

Industrial Uses of NU 2260 MA Bearing
NU 2260 MA Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its high radial load capacity is essential. The brass cage design helps reduce friction, making it suitable for continuous operation.

In wind turbine applications, NU 2260 MA Bearing supports the main shaft, handling both radial and axial loads efficiently. Its chrome steel construction ensures durability in harsh outdoor conditions.

For mining equipment, NU 2260 MA Bearing’s robust design withstands extreme loads and vibrations. The open seal type allows for easy lubrication, extending service life in demanding environments.

Where Is NU 2260 MA Bearing Used?
NU 2260 MA Bearing can be found in paper manufacturing machines, where its precision and reliability are crucial for smooth operation. The large bore size accommodates heavy-duty shafts commonly used in this industry.

In steel production plants, NU 2260 MA Bearing handles the high temperatures and heavy loads of rolling processes. Its brass cage provides stability under rapid speed changes.

Built for Heavy-Duty Use: NU 2260 MA Bearing
NU 2260 MA Bearing is ideal for construction equipment like cranes, where its combined load capacity supports both vertical and horizontal forces. The wide temperature range ensures performance in varying weather conditions.

In marine applications, NU 2260 MA Bearing’s corrosion-resistant materials make it suitable for ship propulsion systems. The grease lubrication option simplifies maintenance in remote locations.

Automotive vs Aerospace: Applications of NU 2260 MA Bearing
In large commercial vehicles, NU 2260 MA Bearing is used in drivetrains for its ability to handle heavy radial loads. The metric sizing ensures compatibility with global manufacturing standards.

For aerospace ground support equipment, NU 2260 MA Bearing’s precision engineering meets the demanding requirements of aircraft maintenance tools. Its high-speed capability is particularly valuable in testing applications.
