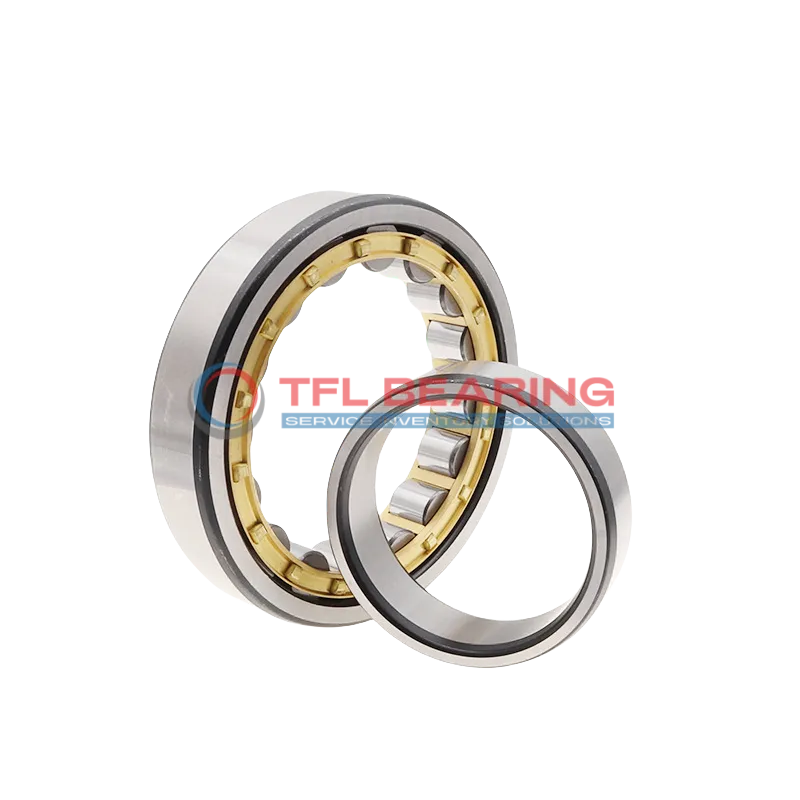

Single Row Cylindrical Roller Bearings With Inner Ring NU 328 ECM

Brand: TFL Bearing Interchangeable: SKF NU 328 ECM 140 mm × 300 mm × 62 mm Metric Open
Part number: NU 328 ECM
Single Row Cylindrical Roller Bearings With Inner Ring NU 328 ECM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia140 mm
Bore Dia Tolerance-0.025mm to 0
Outer Dia300 mm
Outer Dia Tolerance-0.035mm to 0
Width62 mm
Width Tolerance-0.25mm to 0
Chamfer Dimension r1,2(min.)4 mm
Chamfer Dimension r3,4(min.)4 mm
Shoulder Dia Of Outer Ring250.6 mm
Raceway Diameter Of Inner Ring180 mm
Performance
Dynamic Radial Load175,500 lbf
Static Radial Load186,750 lbf
Temperature Range-30° to 110 °C
Max Speed3,000 rpm
Characteristics
Permissible Axial Displacement(max.)3.7 mm
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined
ConstructionSingle Row
Inner Ring TypeWith Inner Ring
Seal TypeOpen
LubricationGrease, Oil
Weight22.5 kg
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialBrass cage, roller centred
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The NU 328 ECM is a single-row cylindrical roller bearing with a 140mm bore and 300mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 175500 lbf and runs smoothly at speeds up to 3000 RPM.

Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

With a 62mm width and 4mm chamfered edges, it fits snugly in tight spaces. The inner ring design ensures stability under heavy radial loads.

Ideal for industrial machinery like pumps or gearboxes where durability matters. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF models. Weighing 22.5kg, it’s robust for heavy-duty use.

Features

How Does NU 328 ECM Bearing Handle Combined Loads?

NU 328 ECM Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 175500 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 3000 rpm, it delivers durability and efficiency in demanding conditions.

Application

Industrial Uses of NU 328 ECM Bearing
NU 328 ECM Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at speeds up to 3000 rpm.

Where Is NU 328 ECM Bearing Used?
In automotive applications, NU 328 ECM Bearing fits well in truck transmissions and axle systems, thanks to its robust chrome steel construction. Its metric sizing makes it a reliable choice for European and Asian vehicle manufacturers.

Built for Heavy-Duty Use: NU 328 ECM Bearing
This bearing excels in conveyor systems and mining equipment, where its high dynamic radial load capacity (175500 lbf) ensures long service life. The open design allows for easy lubrication with grease or oil.

Automotive vs Aerospace: Applications of NU 328 ECM Bearing
While NU 328 ECM Bearing is popular in heavy vehicles, its precision also suits aerospace components like landing gear systems. The temperature range (-30° to 110°C) ensures performance in varied environments.

Perfect Fit for Automation: NU 328 ECM Bearing
In robotic arms and automated production lines, NU 328 ECM Bearing provides stable rotation under combined loads. Its 62 mm width offers a compact yet durable solution for high-speed machinery.
