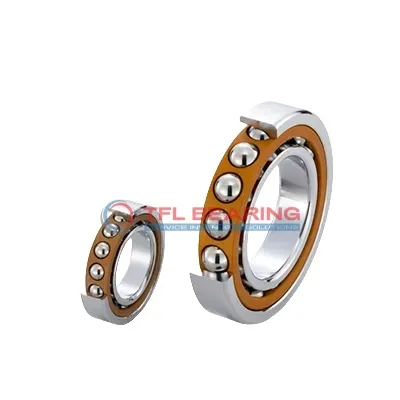

Single Row Angular Contact Ball Bearings (General) AMS 24 ABP

Brand: TFL Bearing Interchangeable: SKF AMS 24 ABP 76.2 mm × 177.8 mm × 39.688 mm Metric Open
Part number: AMS 24 ABP
Single Row Angular Contact Ball Bearings (General) AMS 24 ABP
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia76.2 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia177.8 mm
Outer Dia Tolerance-0.018mm to 0
Width39.688 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)107.8 mm
External Diameter On Inner Ring (Small Side Face)97 mm
Internal Diameter On Outer Ring142.15 mm
Chamfer Dimension4 mm
Performance
Dynamic Radial Load36,675 lbf
Static Radial Load30,825 lbf
Temperature Range-30° to 110 °C
Max Speed5,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle30°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)43 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight5.21 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The AMS 24 ABP is a single-row angular contact ball bearing with a 76.2mm bore and 177.8mm outer diameter, crafted from sturdy chrome steel. Its 30° contact angle efficiently handles combined radial and thrust loads, supporting up to 36675 lbf dynamically.

Designed for smooth operation, it reaches speeds of 5000 RPM and works in temperatures from -30°C to 110°C. The open seal allows easy lubrication, while the nylon cage reduces friction for quieter performance.

This bearing fits well in applications like pumps or gearboxes where angular loads are common. Its P6 tolerance class ensures reliable precision, interchangeable with SKF models.

Weighing 5.21kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a safe choice for various machinery needs.

Features

Performance Features of AMS 24 ABP Bearing

AMS 24 ABP Bearing is designed with a 30° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure strong resistance to both dynamic and static radial loads.

The nylon cage in AMS 24 ABP Bearing reduces friction and noise, making it suitable for precision operations.
With a maximum speed of 5,000 rpm, it maintains efficiency without compromising durability.

AMS 24 ABP Bearing operates in temperatures from -30° to 110°C, adapting to various working conditions.
Its P6 tolerance class ensures consistent performance, meeting high precision standards.

The open design of AMS 24 ABP Bearing simplifies lubrication, reducing maintenance requirements.
Weighing just 5.21 kg, it offers a balance of strength and ease of handling.

Application

Industrial Uses of AMS 24 ABP Bearing
AMS 24 ABP Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The 30° contact angle ensures stable performance during high-precision operations.

In automotive applications, AMS 24 ABP Bearing fits well in wheel hubs and transmission systems, thanks to its robust chrome steel construction. The nylon cage reduces friction, making it suitable for high-speed scenarios.

For automation equipment, AMS 24 ABP Bearing supports robotic arms and conveyor systems with reliable load-bearing capacity. Its P6 tolerance class guarantees consistent accuracy in repetitive tasks.

Medical imaging devices benefit from AMS 24 ABP Bearing’s smooth operation and low maintenance requirements. The lubricated design ensures quiet performance, ideal for sensitive environments.

In household appliances like washing machines, AMS 24 ABP Bearing provides durability and noise reduction. The metric sizing makes it easy to integrate into various European and Asian models.
