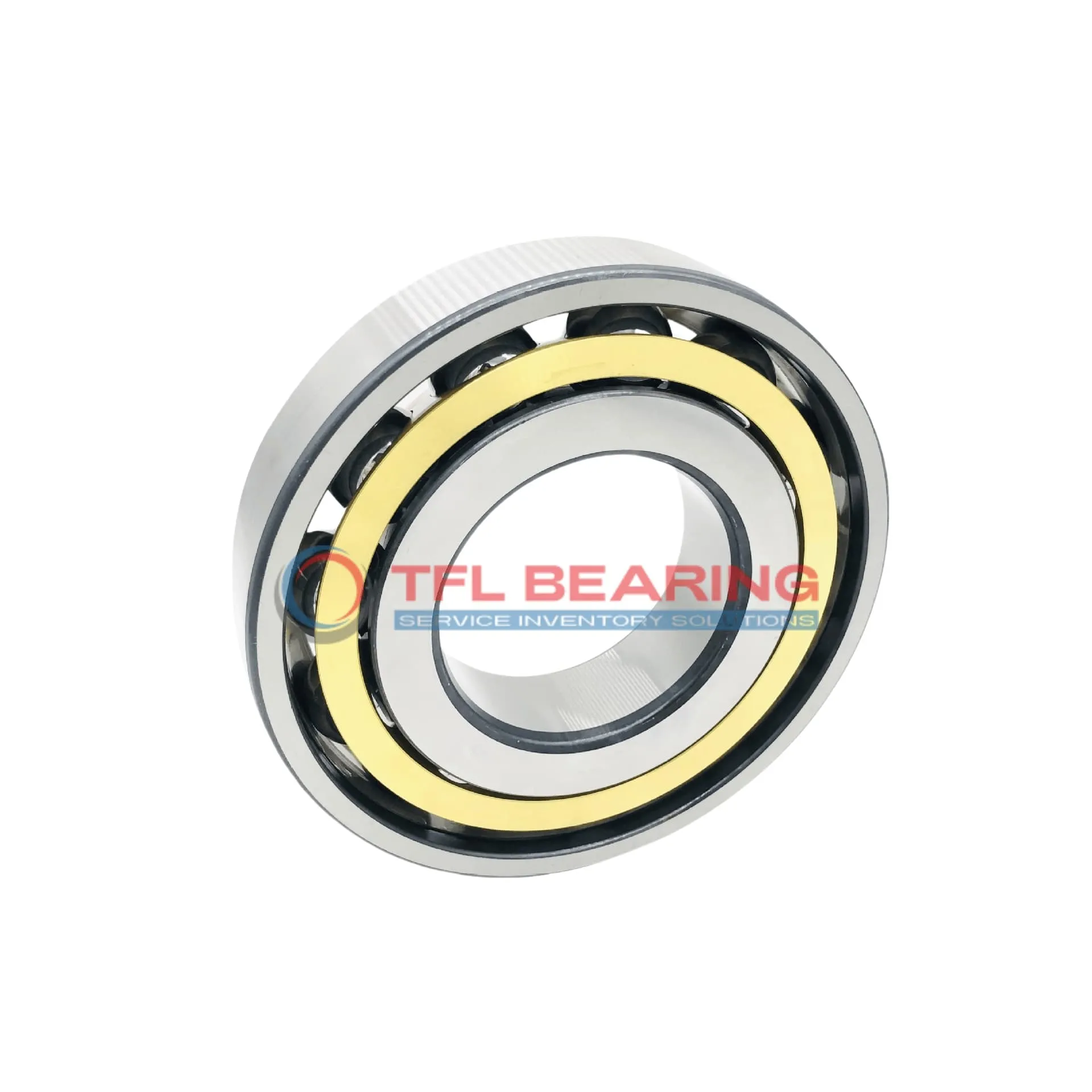

Single Row Angular Contact Ball Bearings (General) 7415 BGBM

Brand: TFL Bearing Interchangeable: SKF 7415 BGBM 75 mm × 190 mm × 45 mm Metric Open
Part number: 7415 BGBM
Single Row Angular Contact Ball Bearings (General) 7415 BGBM
In Stock
US$192.49 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia75 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia190 mm
Outer Dia Tolerance-0.02mm to 0
Width45 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)119.6 mm
External Diameter On Inner Ring (Small Side Face)97.65 mm
Internal Diameter On Outer Ring147.6 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load37,800 lbf
Static Radial Load31,500 lbf
Temperature Range-30° to 110 °C
Max Speed6,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)78 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight6.85 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7415 BGBM is a single-row angular contact ball bearing with a 75mm bore and 190mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 37800 lbf and operates smoothly at speeds up to 6000 RPM.

Its 40° contact angle efficiently manages combined loads, while the brass cage ensures durability and quiet operation. The open design allows for easy lubrication and maintenance.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact is needed.

Weighing 6.85kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Features

Performance Features of 7415 BGBM Bearing

7415 BGBM Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
The chrome steel construction ensures durability under high dynamic radial loads up to 37,800 lbf.

Its brass cage maintains precise ball alignment, reducing friction and wear during operation.
With a maximum speed of 6,000 rpm, it delivers consistent performance in various applications.

The open design allows for easy lubrication, enhancing its service life and reliability.
7415 BGBM Bearing operates efficiently within a temperature range of -30° to 110°C.

The P6 tolerance class ensures high precision, making it suitable for demanding mechanical systems.
Its robust design and quality materials make it a dependable choice for angular contact applications.

Application

Industrial Uses of 7415 BGBM Bearing
The 7415 BGBM Bearing is commonly used in machine tools, where its 40° contact angle handles combined radial and axial loads efficiently. Its brass cage ensures smooth operation even at high speeds.

In automotive applications, 7415 BGBM Bearing fits well in gearboxes and wheel hubs, thanks to its durable chrome steel construction. The P6 tolerance class provides the precision needed for reliable performance.

For automation systems, 7415 BGBM Bearing supports robotic arms and conveyor belts, offering stability under varying loads. Its open design allows for easy lubrication, extending service life.

Medical imaging devices benefit from 7415 BGBM Bearing’s consistent performance and low noise. The temperature range of -30° to 110°C makes it suitable for demanding environments.
