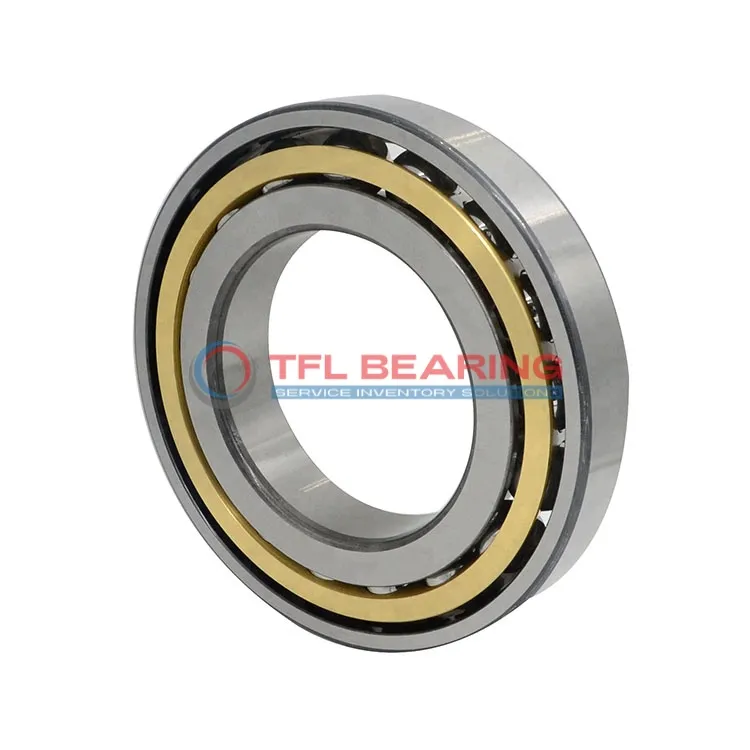

Single Row Angular Contact Ball Bearings (General) 7232 BGAM

Single Row Angular Contact Ball Bearings (General) 7232 BGAM

The 7232 BGAM is a single-row angular contact ball bearing with a 160mm bore and 290mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 57375 lbf and operates smoothly at speeds up to 3000 RPM.

With a 40° contact angle, it efficiently manages combined radial and axial loads. The brass cage enhances durability and reduces friction, making it reliable for heavy-duty use.

Its open design allows easy lubrication, and it performs well in temperatures from -30°C to 110°C. The P6 tolerance class ensures precise operation for demanding applications.

Ideal for industrial machinery, pumps, or gearboxes where angular contact bearings are needed. Weighing 14kg, it’s robust yet manageable for its size, and complies with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7232 BGAM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 290 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 48 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 211.1 mm
  • External Diameter On Inner Ring (Small Side Face) 187.55 mm
  • Internal Diameter On Outer Ring 242.3 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 118 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 57375 lbf
  • Static Radial Load 67500 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 3000 rpm
  • Weight 14 kg
  • Price（$） 509.86
Single Row Angular Contact Ball Bearings (General) 7232 BGAM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7232 BGAM Bearing

7232 BGAM Bearing is designed with a 40° contact angle, optimising its ability to handle combined radial and axial loads.
The chrome steel rings and balls provide strength, while the brass cage ensures smooth operation under high loads.

With a dynamic radial load capacity of 57,375 lbf, 7232 BGAM Bearing performs reliably in demanding applications.
Its P6 tolerance class (ABEC-3) ensures consistent precision, making it suitable for high-performance machinery.

7232 BGAM Bearing operates efficiently within a temperature range of -30° to 110°C.
The open design allows for easy lubrication, enhancing its longevity and reducing maintenance needs.

Application

Industrial Uses of 7232 BGAM Bearing
7232 BGAM Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even under high stress.

In automotive applications, 7232 BGAM Bearing supports components such as wheel hubs and transmissions, providing reliable performance under varying loads. Its P6 tolerance class makes it suitable for precision automotive systems.

For automation equipment, 7232 BGAM Bearing is ideal for robotic arms and CNC machines, offering stability during high-speed rotations. The chrome steel construction enhances durability in continuous operation.

Medical imaging devices benefit from 7232 BGAM Bearing’s precise movement and low friction, ensuring accurate performance in critical applications. The lubricated design reduces maintenance needs.

In consumer electronics, 7232 BGAM Bearing can be found in large-scale printers and industrial fans, where its robust build ensures long service life. The open seal type allows for easy lubrication when needed.
