Mast Guide Bearings MG 308 FFUB

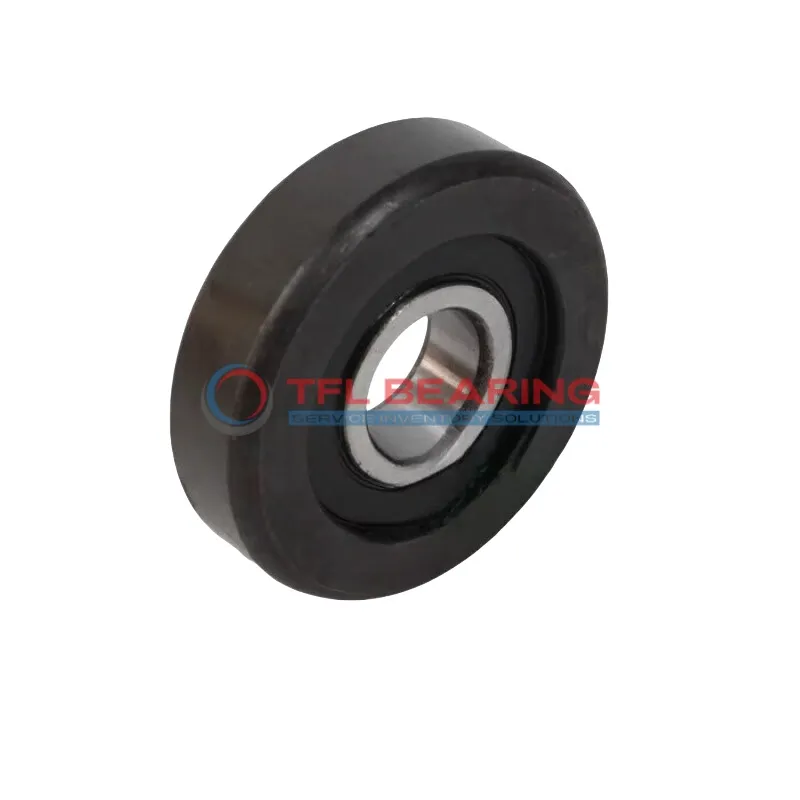

Mast Guide Bearings MG 308 FFUB

The MG 308 FFUB is a mast guide bearing measuring 40mm in inner diameter and 112.4mm in outer diameter, with a width of 32.1mm. Its sturdy construction ensures reliable performance in demanding conditions.

With a dynamic load capacity of 56,280 N and a static load capacity of 38,910 N, this bearing handles heavy loads with ease. The 8mm radius design helps reduce stress concentrations.

The bearing’s dimensions and robust build make it suitable for mast guidance systems and other industrial applications. Weighing 1.59kg, it offers a balance of strength and manageability.

Its compatibility with TFL and OEM systems makes it a practical choice for replacements or upgrades in machinery requiring precise guidance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 308 FFUB
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 112.40 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 32.100 mm
  • Radius (R) 8 mm
  • Dynamic Capacity (Cr.) 56,280 N
  • Static Capacity (Cor.) 38,910 N
  • Weight 1.5876 Kg
Mast Guide Bearings MG 308 FFUB dimension drawing
Download DWG Download PDF

Features

How Is MG 308 FFUB Bearing Engineered for Reliability?

MG 308 FFUB Bearing features a robust design with an inner diameter of 40.000 mm and an outer diameter of 112.40 mm, ensuring stability under heavy loads.
Its dynamic capacity of 56,280 N and static capacity of 38,910 N make it suitable for demanding applications.
The bearing’s inner ring width of 21 mm and outer ring width of 32.100 mm provide balanced support.
With a weight of 1.5876 Kg, it offers durability without compromising on performance.

Application

Industrial Uses of MG 308 FFUB Bearing
MG 308 FFUB Bearing is commonly used in heavy machinery, such as construction equipment and cranes, where its high dynamic capacity ensures reliable performance under substantial loads. The robust design makes it suitable for harsh environments.

In automation systems, MG 308 FFUB Bearing provides smooth guidance for linear motion components, like robotic arms and conveyor belts. Its precise dimensions and durability help maintain accuracy over long operational periods.

For wind turbine applications, MG 308 FFUB Bearing handles radial and axial loads efficiently, contributing to stable energy generation. The stainless steel construction offers excellent resistance to corrosion in outdoor conditions.
