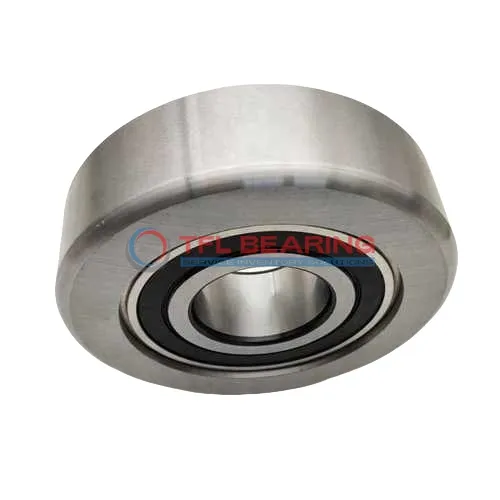

Mast Guide Bearings MG 308 FFK

Mast Guide Bearings MG 308 FFK

The MG 308 FFK mast guide bearing is a sturdy unit measuring 40mm in inner diameter and 109.65mm in outer diameter, with a width of 32mm. Its robust design supports dynamic loads up to 40,760 N and static loads up to 24,020 N.

Made for heavy-duty use, this bearing features a 6.6mm radius for smooth operation. The inner ring width varies between 23mm and 28mm, offering flexibility in installation.

Ideal for industrial applications like cranes or construction equipment, it handles high loads with ease. Weighing 1.6329kg, it’s built to last while maintaining a manageable size.

Its durable construction makes it a reliable choice for demanding environments. Compatible with OEM standards, it’s a practical option for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 308 FFK
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 109.65 mm
  • Inner Ring Width (b) 23/28 mm
  • Outer Ring Width (B) 32.000 mm
  • Radius (R) 6.6 mm
  • Dynamic Capacity (Cr.) 40,760 N
  • Static Capacity (Cor.) 24,020 N
  • Weight 1.6329 Kg
Mast Guide Bearings MG 308 FFK dimension drawing
Download DWG Download PDF

Features

How Is MG 308 FFK Bearing Engineered for Reliability?

MG 308 FFK Bearing features a robust design with an inner diameter of 40 mm and outer diameter of 109.65 mm, ensuring stability under heavy loads.
Its dynamic capacity of 40,760 N and static capacity of 24,020 N make it suitable for demanding applications.
The bearing’s inner ring width of 23/28 mm and outer ring width of 32 mm provide balanced support.
With a weight of 1.6329 kg, it offers durability without excessive bulk.

Application

Industrial Uses of MG 308 FFK Bearing
MG 308 FFK Bearing is commonly used in heavy machinery, such as construction equipment and industrial presses, where its high dynamic capacity handles significant loads. The robust design ensures long-lasting performance even in demanding environments.

In automotive applications, MG 308 FFK Bearing fits well in suspension systems and drivetrains, providing stability under varying pressures. Its precise dimensions make it a reliable choice for both standard and custom vehicle designs.

For automation systems, MG 308 FFK Bearing supports robotic arms and conveyor belts, offering smooth movement and reduced friction. The balanced weight distribution enhances efficiency in high-speed operations.

Medical devices like diagnostic machines benefit from MG 308 FFK Bearing’s consistent performance and durability. The corrosion-resistant materials ensure reliability in sterile environments.

Household appliances, such as washing machines, use MG 308 FFK Bearing to reduce noise and vibration. Its compact size and sturdy build make it ideal for everyday use.
