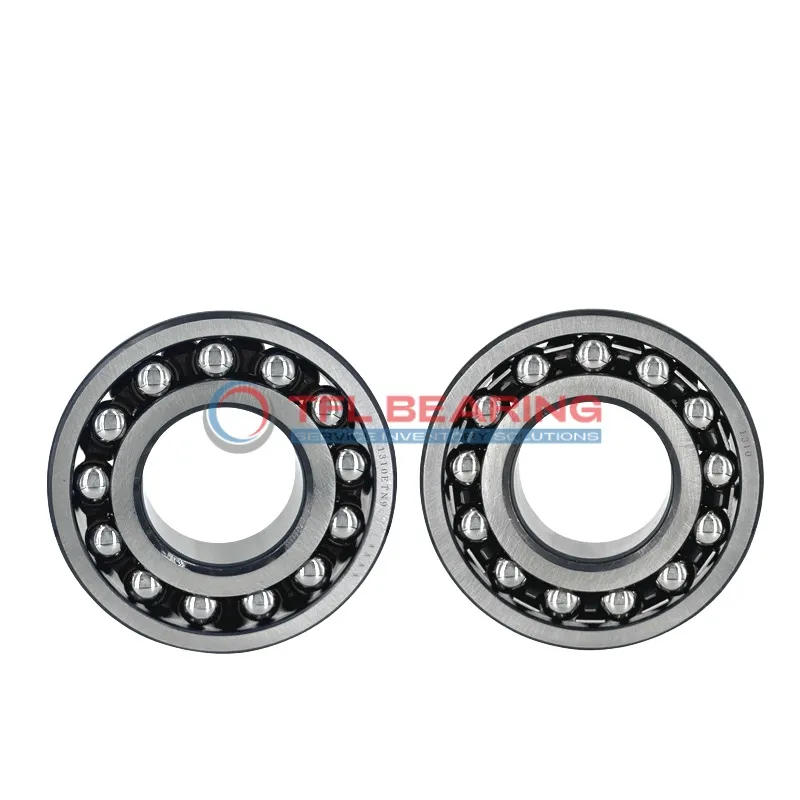

Self Aligning Ball Bearings 1313KJ

Brand: TFL Bearing Interchangeable: SKF 1313KJ 65 mm × 140 mm × 33 mm Metric Open
Part number: 1313KJ
Self Aligning Ball Bearings 1313KJ
In Stock
US$128.26 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia65 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia140 mm
Outer Dia Tolerance-0.018mm to 0
Width33 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring99 mm
Internal Diameter On Outer Ring125.2 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load14,625 lbf
Static Radial Load5,738 lbf
Temperature Range-30° to 110 °C
Max Speed6,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight2.35 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1313KJ is a self-aligning ball bearing with a 65mm tapered bore and 140mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 14625 lbf and operates smoothly at speeds up to 6000 RPM.

Its double-row design helps compensate for misalignment, while the open seal allows for easy lubrication. The steel cage ensures durability, making it suitable for heavy-duty use.

This bearing works well in temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for applications like conveyor systems or agricultural machinery where alignment adjustments are needed.

Weighing 2.35kg, it’s a robust choice for industrial settings. Compliant with RoHS and REACH standards for safe and reliable performance.

Features

Why Choose 1313KJ Bearing for Precision Tasks?

1313KJ Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 14625 lbf, making it suitable for demanding applications.

The tapered bore design of 1313KJ Bearing allows for precise alignment, reducing wear and improving performance.
With a maximum speed of 6,000 rpm, it offers both durability and efficiency.

1313KJ Bearing operates smoothly in temperatures ranging from -30° to 110°C, ensuring reliability in various conditions.
Its steel cage maintains ball alignment, extending the bearing’s service life.

The open seal type of 1313KJ Bearing simplifies maintenance, reducing operational downtime.
Weighing just 2.35 kg, it is easy to handle and install.

Application

Industrial Uses of 1313KJ Bearing
1313KJ Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance even under heavy radial loads.

In automotive applications, 1313KJ Bearing fits well in gearboxes and wheel hubs, thanks to its tapered bore for secure mounting. The chrome steel construction provides durability in high-stress conditions.

For automation equipment, 1313KJ Bearing supports smooth operation in robotic arms and assembly lines. Its open design allows for easy lubrication, extending service life in continuous-use environments.

What Makes 1313KJ Bearing a Preferred Choice?
1313KJ Bearing works efficiently in industrial fans, handling both radial loads and slight shaft misalignments. The steel cage offers good strength while maintaining low friction.

In printing machinery, 1313KJ Bearing ensures precise paper handling with its consistent rotation. The metric sizing makes it compatible with various European-designed equipment.

Built for Heavy-Duty Use: 1313KJ Bearing
1313KJ Bearing performs well in construction equipment like compactors, where shock loads are common. Its wide temperature range suits both indoor and outdoor applications.

For agricultural machinery, 1313KJ Bearing withstands dusty conditions while maintaining smooth operation. The lubricated design reduces maintenance needs in remote field equipment.
