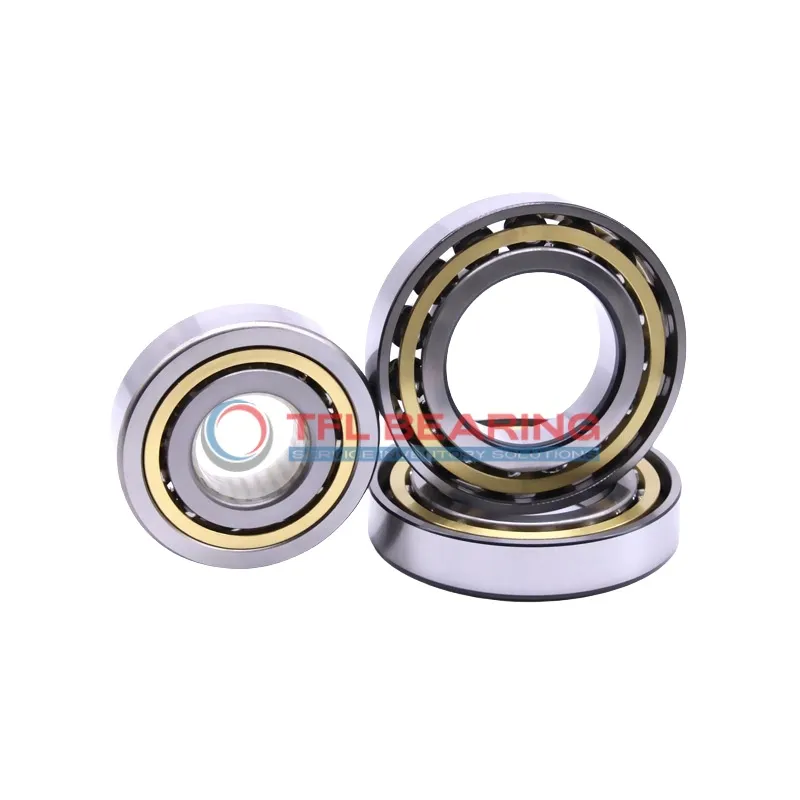

Single Row Angular Contact Ball Bearings (General) 7205 BECBM

Single Row Angular Contact Ball Bearings (General) 7205 BECBM

The 7205 BECBM is a single-row angular contact ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently manages combined radial and axial loads, supporting speeds up to 20,000 RPM.

The brass cage enhances durability and reduces friction, while the open design allows for easy lubrication. With a P6 tolerance class, it offers reliable precision for smooth operation.

This bearing suits applications like pumps or electric motors where angular loads are present. Weighing just 0.13kg, it’s lightweight yet robust, complying with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7205 BECBM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 15 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 35.85 mm
  • External Diameter On Inner Ring (Small Side Face) 30.87 mm
  • Internal Diameter On Outer Ring 41.5 mm
  • Chamfer Dimension 1 mm
  • Distance Pressure Point (a) 24 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 2250 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 20000 rpm
  • Weight 0.13 kg
  • Price（$） 15.91
Single Row Angular Contact Ball Bearings (General) 7205 BECBM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7205 BECBM Bearing

7205 BECBM Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
The chrome steel construction ensures durability and resistance to wear in demanding applications.

Its brass cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a maximum speed of 20,000 rpm, it is suitable for high-speed machinery.

The P6 tolerance class (ABEC-3) guarantees precision and reliable performance.
Operating temperatures range from -30° to 110°C, making it versatile for various environments.

Dynamic radial load capacity reaches 3510 lbf, ensuring long service life under heavy loads.
The open design allows for easy lubrication, reducing maintenance requirements.

Application

Industrial Uses of 7205 BECBM Bearing
7205 BECBM Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even at high speeds up to 20,000 rpm.

Where Is 7205 BECBM Bearing Used?
In automotive applications, 7205 BECBM Bearing supports wheel hubs and transmission systems, thanks to its durable chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle designs.

Perfect Fit for Automation: 7205 BECBM Bearing
7205 BECBM Bearing works well in robotic arms and automated assembly lines, where precision and reliability are key. The open design allows for easy lubrication, extending its service life in continuous operations.

Medical vs Industrial: Where 7205 BECBM Bearing Excels
While 7205 BECBM Bearing performs reliably in industrial pumps, it also meets the precision demands of medical imaging devices. The P6 tolerance class ensures consistent performance in both environments.
