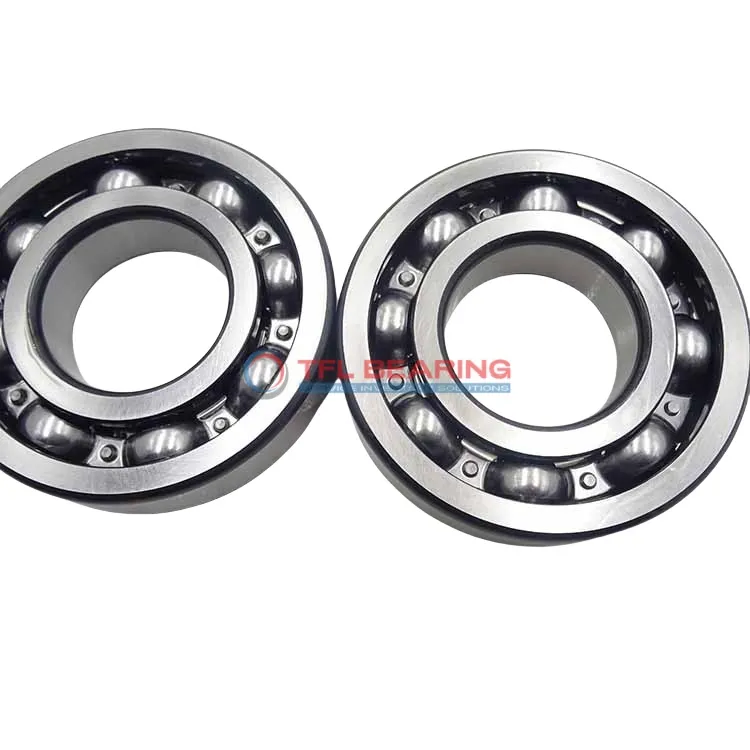

Single Row Deep Groove Ball Bearings 61838

Single Row Deep Groove Ball Bearings 61838

The 61838 is a single-row deep groove ball bearing with a 190mm bore and 240mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 17108 lbf and operates smoothly at speeds up to 3200 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for radial load applications like electric motors or pumps.

Weighing 2.24kg, it balances strength with manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61838
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 190 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 24 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 17108 lbf
  • Static Radial Load 22031 lbf
  • Max Speed 3200 rpm
  • Weight 2.24 kg
Single Row Deep Groove Ball Bearings 61838 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61838 Bearing

61838 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 17108 lbf, making it suitable for demanding applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 3,200 rpm, it delivers reliable performance under various conditions.

61838 Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open design allows for easy lubrication and maintenance, enhancing longevity.

Application

Common Applications of 61838 Bearing
The 61838 Bearing is widely used in industrial machinery, such as large pumps and gearboxes, where its deep groove design handles radial loads efficiently. Its open seal type makes it easy to lubricate and maintain in demanding environments.

In automotive applications, 61838 Bearing fits well in wheel hubs and transmission systems, providing reliable performance under heavy loads. The chrome steel construction ensures durability even in high-temperature conditions.

For automation equipment, 61838 Bearing supports smooth operation in robotic arms and conveyor belts. Its P6 tolerance class offers the precision needed for consistent performance in repetitive tasks.

In household appliances like washing machines, 61838 Bearing reduces noise and vibration, enhancing user comfort. The stainless steel cage adds longevity, making it a cost-effective choice for everyday use.
