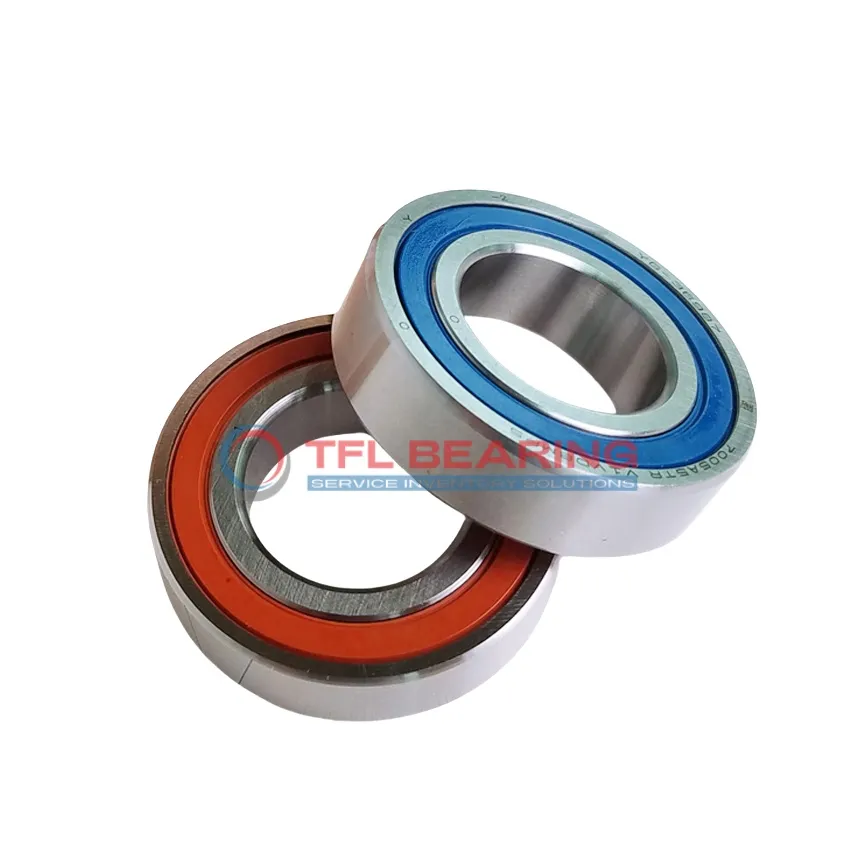

Single Row Angular Contact Ball Bearings (General) 7208 BE-2RZP

Single Row Angular Contact Ball Bearings (General) 7208 BE-2RZP

The 7208 BE-2RZP is a single-row angular contact ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7762 lbf and operates smoothly at speeds up to 8000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the nylon cage reduces friction for quieter performance. The 40° contact angle helps handle combined radial and axial loads effectively.

This bearing suits applications like pumps or electric motors where precise alignment is needed. It works in temperatures from -30°C to 110°C and meets P6 tolerance standards.

Weighing 0.42kg, it’s a reliable choice for industrial use. Compliant with RoHS and REACH regulations, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7208 BE-2RZP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 18 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 56.07 mm
  • External Diameter On Inner Ring (Small Side Face) 48.05 mm
  • Chamfer Dimension 1.1 mm
  • Distance Pressure Point (a) 34 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7762 lbf
  • Static Radial Load 5400 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 0.42 kg
Single Row Angular Contact Ball Bearings (General) 7208 BE-2RZP dimension drawing
Download DWG Download PDF

Features

Performance Features of 7208 BE-2RZP Bearing

7208 BE-2RZP Bearing is designed with a 40° contact angle, optimising its ability to handle combined radial and axial loads.
The sealed construction protects against contaminants, ensuring smooth operation in various environments.

Chrome steel rings and balls enhance durability, while the nylon cage reduces friction and noise.
With a dynamic radial load capacity of 7762 lbf, it performs reliably under demanding conditions.

The P6 tolerance class ensures precision, making it suitable for high-speed applications up to 8,000 rpm.
Its lubricated design minimises maintenance needs, extending service life.

Application

Industrial Uses of 7208 BE-2RZP Bearing
7208 BE-2RZP Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The sealed design keeps contaminants out, ensuring long service life in dusty workshop conditions.

Where Is 7208 BE-2RZP Bearing Used?
In automotive applications, 7208 BE-2RZP Bearing works well in wheel hubs and transmissions due to its nylon cage reducing friction at high speeds. The P6 tolerance class provides the precision needed for smooth vehicle operation.

Built for Heavy-Duty Use: 7208 BE-2RZP Bearing
This bearing excels in conveyor systems, where its chrome steel construction withstands continuous operation. The lubricated design maintains performance across the -30° to 110°C temperature range.

Automotive vs Aerospace: Applications of 7208 BE-2RZP Bearing
While 7208 BE-2RZP Bearing suits car transmissions, its metric sizing also fits some aircraft auxiliary systems. The 8,000 rpm limit makes it versatile for medium-speed applications in both fields.

Perfect Fit for Automation: 7208 BE-2RZP Bearing
Robotic arms benefit from 7208 BE-2RZP Bearing’s angular contact design that handles multidirectional forces. The 18mm width provides a compact solution for space-constrained automation equipment.
