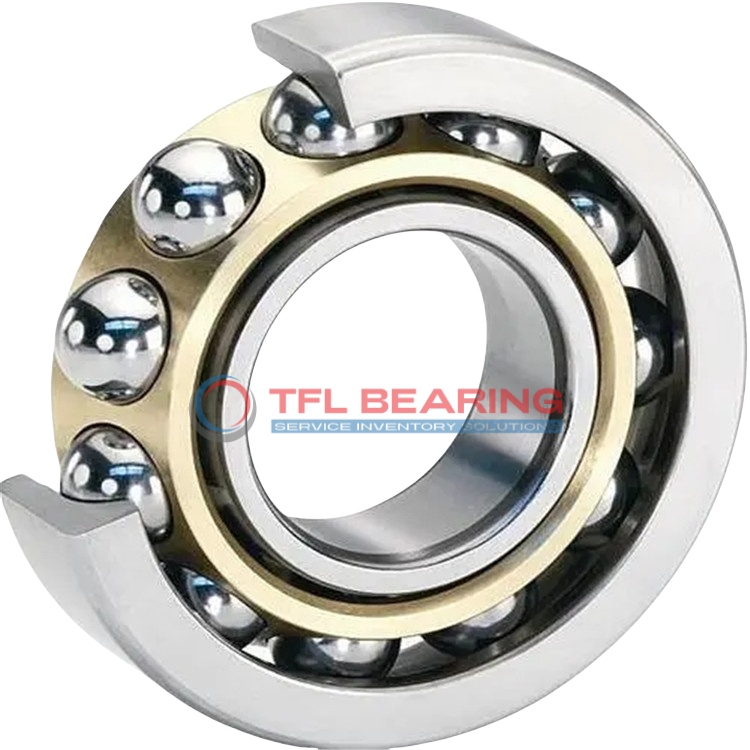

Single Row Angular Contact Ball Bearings (General) 7056 BGM

Brand: TFL Bearing Interchangeable: SKF 7056 BGM 280 mm × 420 mm × 65 mm Metric Open
Part number: 7056 BGM
Single Row Angular Contact Ball Bearings (General) 7056 BGM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia280 mm
Bore Dia Tolerance-0.025mm to 0
Outer Dia420 mm
Outer Dia Tolerance-0.033mm to 0
Width65 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)334.9 mm
External Diameter On Inner Ring (Small Side Face)309.85 mm
Internal Diameter On Outer Ring368.65 mm
Chamfer Dimension4 mm
Performance
Dynamic Radial Load76,050 lbf
Static Radial Load121,500 lbf
Temperature Range-30° to 110 °C
Max Speed1,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)179 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight30 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7056 BGM is a single-row angular contact ball bearing with a 280mm bore and 420mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 76050 lbf and operates smoothly at speeds up to 1600 RPM.

With a 40° contact angle, it efficiently manages combined radial and axial loads. The brass cage enhances durability, while the open design allows for easy lubrication and maintenance.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. It suits heavy-duty applications like industrial gearboxes or large machinery where angular contact is needed.

Weighing 30kg, it’s built to last in temperatures from -30°C to 110°C. Compliant with RoHS and REACH standards, it meets strict safety and environmental requirements.

Features

Performance Features of 7056 BGM Bearing

7056 BGM Bearing features a 40° contact angle, optimised for handling combined radial and axial loads efficiently.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation at high speeds.

With a dynamic radial load capacity of 76,050 lbf, 7056 BGM Bearing performs reliably under heavy loads.
The P6 tolerance class (ABEC-3) guarantees precision, making it suitable for demanding applications.

Designed for a temperature range of -30° to 110°C, 7056 BGM Bearing adapts to various operating conditions.
Its open design simplifies lubrication, ensuring consistent performance over time.

The 7056 BGM Bearing’s dimensions (280 mm × 420 mm × 65 mm) make it ideal for industrial machinery.
Its interchangeable design with SKF bearings offers flexibility in replacements and upgrades.

Application

Industrial Uses of 7056 BGM Bearing
The 7056 BGM Bearing is commonly used in heavy machinery, such as large pumps and compressors, where its angular contact design efficiently handles combined radial and axial loads. Its brass cage ensures smooth operation even under high stress.

In automotive applications, 7056 BGM Bearing is ideal for wheel hubs and transmissions, providing reliable performance under varying load conditions. The P6 tolerance class guarantees precision, making it suitable for high-performance vehicles.

For automation systems, 7056 BGM Bearing supports robotic arms and conveyor belts, where its chrome steel construction offers durability. The open seal type allows for easy lubrication, extending its service life in continuous operation.

Medical imaging devices benefit from 7056 BGM Bearing’s stability and low noise, crucial for precise diagnostics. Its temperature range ensures consistent performance in both clinical and laboratory environments.

In consumer electronics, 7056 BGM Bearing is found in large printers and industrial fans, where its robust design handles prolonged use. The metric dimensions make it compatible with a wide range of equipment.
