Self Aligning Ball Bearings 2309KJ

Brand: TFL Bearing Interchangeable: SKF 2309KJ 45 mm × 100 mm × 36 mm Metric Sealed
Part number: 2309KJ

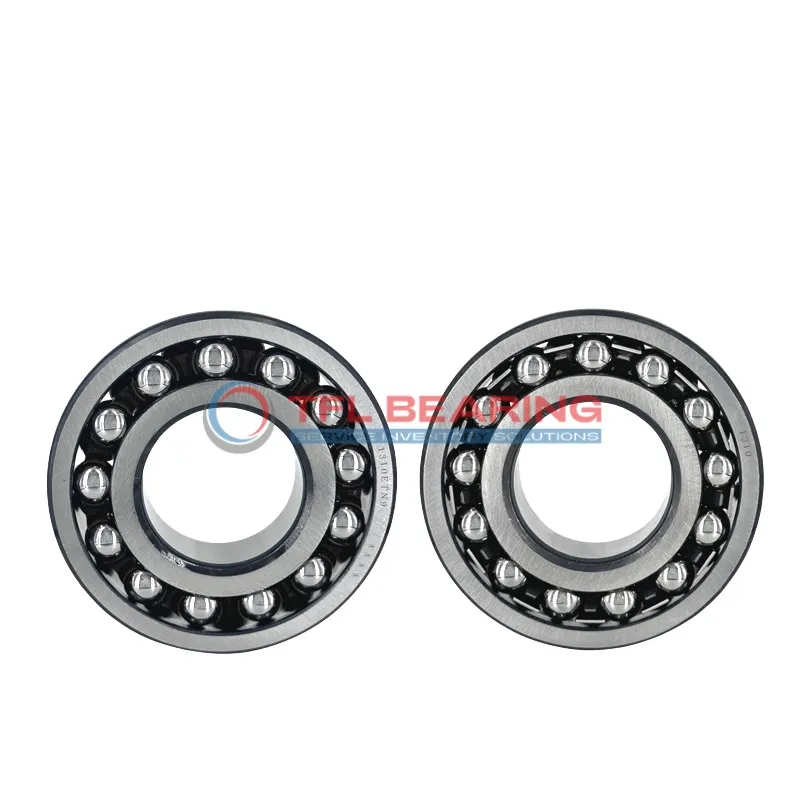

Self Aligning Ball Bearings 2309KJ
In Stock
US$84.11 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.015mm to 0
Width36 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring60.9 mm
Internal Diameter On Outer Ring90 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load8,775 lbf
Static Radial Load3,015 lbf
Temperature Range-30° to 110 °C
Max Speed4,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight1.3 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2309KJ is a self-aligning ball bearing with a 45mm tapered bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8775 lbf and operates smoothly at speeds up to 4300 RPM.

Its sealed design keeps lubrication intact, reducing maintenance needs, while the double-row construction offers stability under heavy loads. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 1.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Performance Features of 2309KJ Bearing

2309KJ Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 8775 lbf, making it suitable for demanding applications.

The sealed construction of 2309KJ Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 4,300 rpm, it offers reliable performance in various conditions.

2309KJ Bearing’s tapered bore design simplifies installation and ensures secure fitting.
The steel cage maintains ball alignment, reducing wear and extending service life.

Lubricated for smooth operation, 2309KJ Bearing performs well within a temperature range of -30° to 110°C.
Its compact size (45 mm×100 mm×36 mm) makes it ideal for space-constrained applications.

Application

Industrial Uses of 2309KJ Bearing
2309KJ Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2309KJ Bearing fits well in gearboxes and drivetrains, handling radial loads efficiently. Its tapered bore allows for secure mounting, reducing slippage during operation.

For robotics, 2309KJ Bearing’s double-row construction provides stability in articulated joints. The chrome steel rings and balls offer reliable performance in repetitive motion tasks.

In household appliances like washing machines, 2309KJ Bearing’s lubricated design ensures quiet and smooth operation. The steel cage adds durability, making it suitable for high-cycle use.
