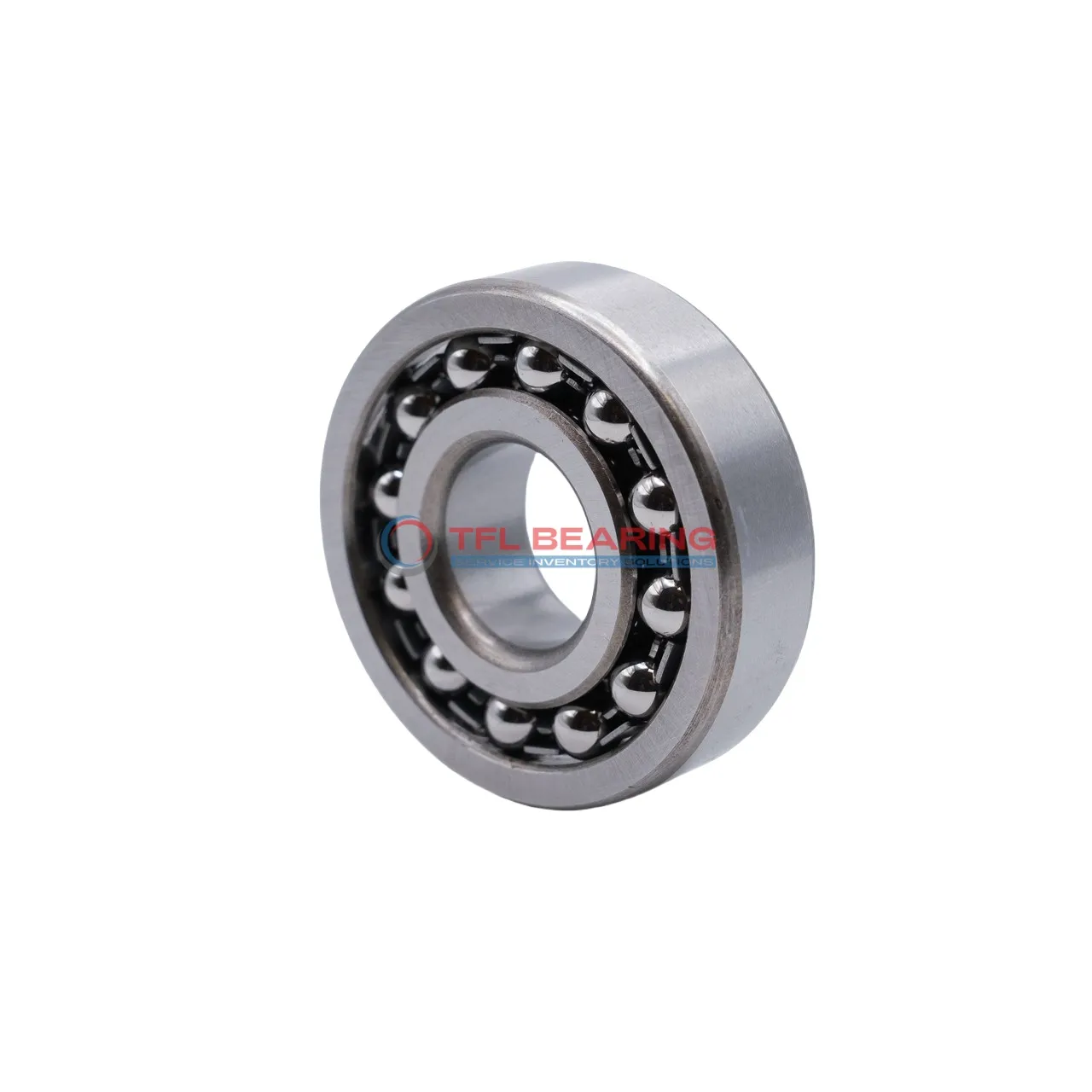

Self Aligning Ball Bearings 2306KJ

Brand: TFL Bearing Interchangeable: SKF 2306KJ 30 mm × 72 mm × 27 mm Metric Open
Part number: 2306KJ
Self Aligning Ball Bearings 2306KJ
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia72 mm
Outer Dia Tolerance-0.013mm to 0
Width27 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring41.9 mm
Internal Diameter On Outer Ring59.8 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load7,020 lbf
Static Radial Load1,980 lbf
Temperature Range-30° to 110 °C
Max Speed13,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2306KJ is a self-aligning ball bearing with a 30mm tapered bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7020 lbf and operates smoothly at speeds reaching 13000 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, ideal for misaligned shafts. The steel cage enhances durability, ensuring reliable performance over time.

Suitable for temperatures between -30°C and 110°C, this bearing fits well in industrial machinery or conveyor systems where alignment flexibility is needed. It’s interchangeable with SKF models for convenient replacements.

Weighing 0.5kg, it’s a robust yet manageable choice. Compliant with RoHS and REACH standards, it’s safe for various applications.

Features

Why Choose 2306KJ Bearing for Precision Tasks?

2306KJ Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load handling.
Its dynamic radial load capacity of 7020 lbf makes it suitable for high-performance applications.
The steel cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 13,000 rpm, it offers reliable operation in demanding conditions.

Application

Industrial Uses of 2306KJ Bearing
2306KJ Bearing is commonly used in industrial machinery like conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The double-row design provides reliable radial load support, making it suitable for continuous operation.

Where Is 2306KJ Bearing Used?
In automotive applications, 2306KJ Bearing can be found in gearboxes and wheel hubs, handling radial loads efficiently. Its tapered bore ensures a secure fit, reducing slippage during high-speed rotations.

Built for Heavy-Duty Use: 2306KJ Bearing
For automation equipment such as robotic arms, 2306KJ Bearing offers smooth movement and durability. The chrome steel construction ensures long-lasting performance even in demanding environments.

Automotive vs Aerospace: Applications of 2306KJ Bearing
While 2306KJ Bearing is popular in automotive transmissions, its precision also makes it useful in aerospace actuators. The metric sizing and open design allow for easy integration across different industries.

Essential Roles of 2306KJ Bearing
In household appliances like washing machines, 2306KJ Bearing reduces vibration and noise. Its self-aligning capability ensures consistent performance even with slight shaft misalignments.
