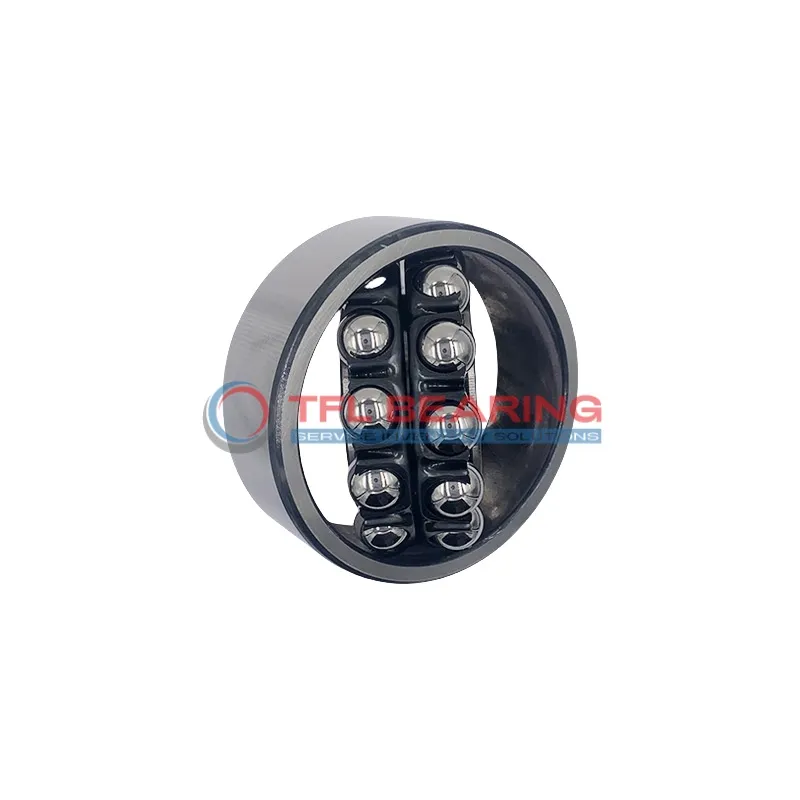

Self Aligning Ball Bearings 2307KJ

Brand: TFL Bearing Interchangeable: SKF 2307KJ 35 mm × 80 mm × 31 mm Metric Sealed
Part number: 2307KJ
Self Aligning Ball Bearings 2307KJ
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia35 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia80 mm
Outer Dia Tolerance-0.013mm to 0
Width31 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring43.7 mm
Internal Diameter On Outer Ring69.2 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load5,962 lbf
Static Radial Load1,912 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.7 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2307KJ is a self-aligning ball bearing with a 35mm tapered bore and 80mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 5962 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design and sealed construction help maintain alignment and keep dirt out, reducing maintenance needs. The steel cage adds durability, making it suitable for demanding environments.

This bearing works well in temperatures from -30°C to 110°C and comes pre-lubricated for easy installation. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for machinery with misalignment issues, such as conveyor systems or agricultural equipment. Weighing 0.7kg, it balances strength and practicality for industrial use. Compliant with RoHS and REACH standards.

Features

Why Choose 2307KJ Bearing for Precision Tasks?

2307KJ Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 5962 lbf makes it suitable for demanding industrial applications.

The sealed construction of 2307KJ Bearing protects against contaminants, enhancing durability.
With a maximum speed of 5,600 rpm, it delivers reliable performance in various conditions.

2307KJ Bearing’s tapered bore design simplifies installation and improves alignment accuracy.
Its steel cage maintains ball positioning, reducing friction and extending service life.

Application

Industrial Uses of 2307KJ Bearing
2307KJ Bearing is commonly used in conveyor systems, where its self-aligning feature helps accommodate misalignment and reduces wear. The sealed design keeps contaminants out, making it suitable for dusty environments.

In automotive applications, 2307KJ Bearing fits well in suspension systems, providing smooth rotation even under heavy radial loads. Its tapered bore ensures a secure fit, which is essential for vehicle safety.

For automation equipment, 2307KJ Bearing’s double-row construction offers stability in robotic arms and assembly lines. The lubricated design ensures long-lasting performance with minimal maintenance.

Where Is 2307KJ Bearing Used?
You’ll often find 2307KJ Bearing in industrial fans, where its ability to handle misalignment prevents premature failure. The chrome steel construction adds durability, even in high-speed operations.

In household appliances like washing machines, 2307KJ Bearing reduces vibration and noise. Its sealed design protects against moisture and detergent, extending the bearing’s lifespan.

Built for Heavy-Duty Use: 2307KJ Bearing
2307KJ Bearing excels in construction equipment, where its robust design handles rough conditions. The steel cage provides extra strength, making it reliable for heavy loads.

In agricultural machinery, 2307KJ Bearing’s self-aligning capability compensates for shaft misalignment. This feature is particularly useful in tractors and harvesters, where uneven terrain is common.

Light-Duty vs Heavy-Duty: Best Uses for 2307KJ Bearing
For light-duty tasks like office printers, 2307KJ Bearing ensures quiet and efficient operation. Its compact size fits well in smaller devices without compromising performance.

In heavy-duty scenarios like mining equipment, 2307KJ Bearing’s radial load capacity shines. The lubricated design keeps it running smoothly, even in demanding conditions.
