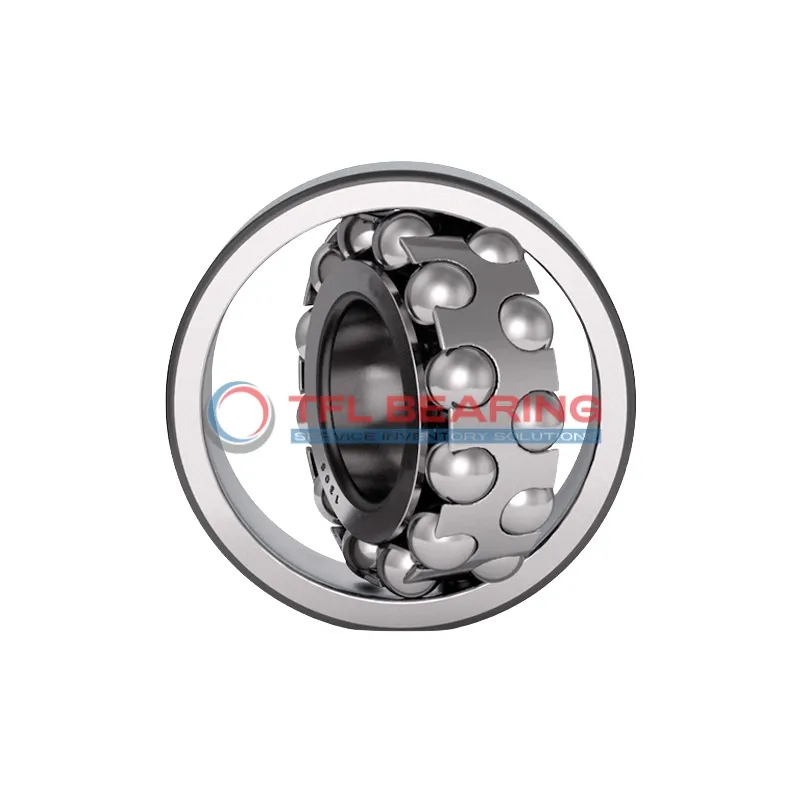

Self Aligning Ball Bearings 2316KJ

Brand: TFL Bearing Interchangeable: SKF 2316KJ 80 mm × 170 mm × 58 mm Metric Open
Part number: 2316KJ
Self Aligning Ball Bearings 2316KJ
In Stock
US$266.26 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia170 mm
Outer Dia Tolerance-0.025mm to 0
Width58 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring104.4 mm
Internal Diameter On Outer Ring145.1 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load30,375 lbf
Static Radial Load11,025 lbf
Temperature Range-30° to 110 °C
Max Speed5,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight6.1 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2316KJ is a self-aligning ball bearing with an 80mm tapered bore and 170mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 30375 lbf and runs smoothly at speeds up to 5300 RPM.

Its double-row design helps compensate for misalignment, while the open construction allows easy lubrication. The steel cage adds durability, making it suitable for heavy-duty use.

This bearing works well in temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for industrial machinery or conveyor systems where alignment flexibility is needed.

Weighing 6.1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe operation.

Features

Performance Features of 2316KJ Bearing

2316KJ Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.
Its dynamic radial load capacity reaches 30375 lbf, making it suitable for heavy-duty applications.

The double-row construction of 2316KJ Bearing ensures stability and smooth operation under varying loads.
With a maximum speed of 5,300 rpm, it balances performance and durability.

2316KJ Bearing’s tapered bore design simplifies installation and enhances alignment accuracy.
The steel cage maintains ball positioning, reducing wear and extending service life.

Designed for a temperature range of -30° to 110°C, 2316KJ Bearing performs reliably in diverse conditions.
Its open seal type allows for easy lubrication, ensuring consistent performance.

Application

Industrial Uses of 2316KJ Bearing
2316KJ Bearing is commonly used in heavy machinery like conveyor systems and industrial mixers, where its self-aligning feature compensates for shaft misalignment. The double-row design provides excellent radial load capacity, ensuring long service life in demanding environments.

Where Is 2316KJ Bearing Used?
In automotive applications, 2316KJ Bearing fits well in gearboxes and drivetrains, thanks to its tapered bore for secure mounting. Its chrome steel construction handles high loads while maintaining smooth rotation, even under tough conditions.

Built for Heavy-Duty Use: 2316KJ Bearing
For wind turbines and mining equipment, 2316KJ Bearing’s robust design withstands harsh conditions and variable loads. The open seal type allows for easy relubrication, extending its usability in remote or high-wear settings.

Automotive vs Aerospace: Applications of 2316KJ Bearing
While 2316KJ Bearing suits automotive drivetrains, its precision also makes it viable for aerospace auxiliary systems. The metric sizing and tapered bore ensure compatibility with diverse machinery across industries.

Perfect Fit for Automation: 2316KJ Bearing
In robotic arms and automated assembly lines, 2316KJ Bearing’s self-aligning capability reduces wear from minor misalignments. Its steel cage and chrome steel balls offer reliable performance in continuous operation.
