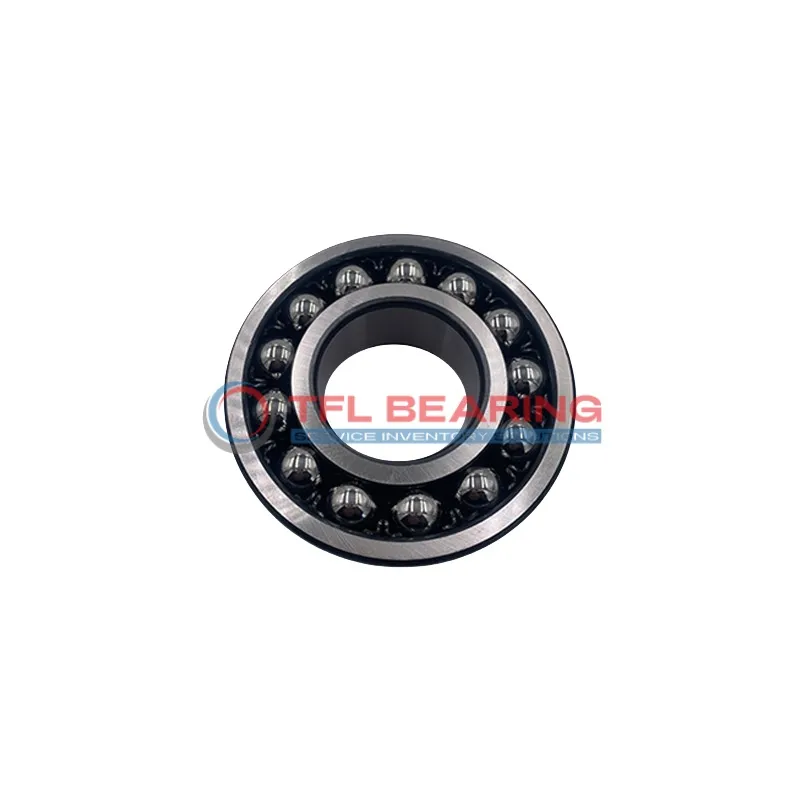

Self Aligning Ball Bearings 2319KJ

Brand: TFL Bearing Interchangeable: SKF 2319KJ 95 mm × 200 mm × 67 mm Metric Open
Part number: 2319KJ
Self Aligning Ball Bearings 2319KJ
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia95 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia200 mm
Outer Dia Tolerance-0.03mm to 0
Width67 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring128 mm
Internal Diameter On Outer Ring170.6 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load37,125 lbf
Static Radial Load14,400 lbf
Temperature Range-30° to 110 °C
Max Speed4,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight9.8 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2319KJ is a self-aligning ball bearing with a 95mm tapered bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 37125 lbf and operates smoothly at speeds up to 4300 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, making it versatile for various setups. The steel cage adds durability, ensuring reliable performance over time.

This bearing suits applications with potential misalignment, such as heavy machinery or conveyor systems. It works well in temperatures from -30°C to 110°C and comes pre-lubricated for immediate use.

Weighing 9.8kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and interchangeable option with SKF models. Ideal for industrial settings where radial loads and alignment flexibility are key.

Features

How Is 2319KJ Bearing Engineered for Reliability?

2319KJ Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 37125 lbf, making it suitable for heavy-duty applications.
The steel cage maintains ball alignment, reducing friction and wear over time.
With a maximum speed of 4,300 rpm, it offers a balance of durability and performance.

What Makes 2319KJ Bearing Suitable for High-Temperature Applications?

2319KJ Bearing operates effectively in temperatures ranging from -30° to 110 °C.
The chrome steel construction provides resistance to heat and wear, ensuring consistent performance.
Its open design allows for easy lubrication, further enhancing its reliability in high-temperature environments.
The bearing’s robust build makes it ideal for industrial applications with varying thermal conditions.

Designed for Durability: 2319KJ Bearing

2319KJ Bearing is built with high-quality chrome steel for long-lasting performance.
Its double-row construction distributes loads evenly, reducing stress on individual components.
The steel cage ensures smooth operation by keeping the balls properly aligned.
With a static radial load capacity of 14400 lbf, it handles demanding conditions with ease.

Application

Industrial Uses of 2319KJ Bearing
2319KJ Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature compensates for shaft misalignment. The double-row design ensures reliable performance under significant radial loads.

Where Is 2319KJ Bearing Used?
In automotive applications, 2319KJ Bearing can be found in gearboxes and drivetrains, providing smooth operation even under varying load conditions. Its taper bore design allows for secure mounting on tapered shafts.

Built for Heavy-Duty Use: 2319KJ Bearing
For construction equipment, 2319KJ Bearing handles the demanding conditions of cranes and excavators with ease. The chrome steel construction offers durability and resistance to wear in harsh environments.

Automotive vs Aerospace: Applications of 2319KJ Bearing
While 2319KJ Bearing is popular in automotive drivetrains, it also finds use in aerospace applications where reliability and precision are critical. Its self-aligning capability makes it versatile across industries.

Practical Applications of 2319KJ Bearing
In wind turbines, 2319KJ Bearing supports the rotor shaft, accommodating slight misalignments caused by wind forces. The lubricated design ensures long service life with minimal maintenance.
