Self Aligning Ball Bearings 2320 KM/C3

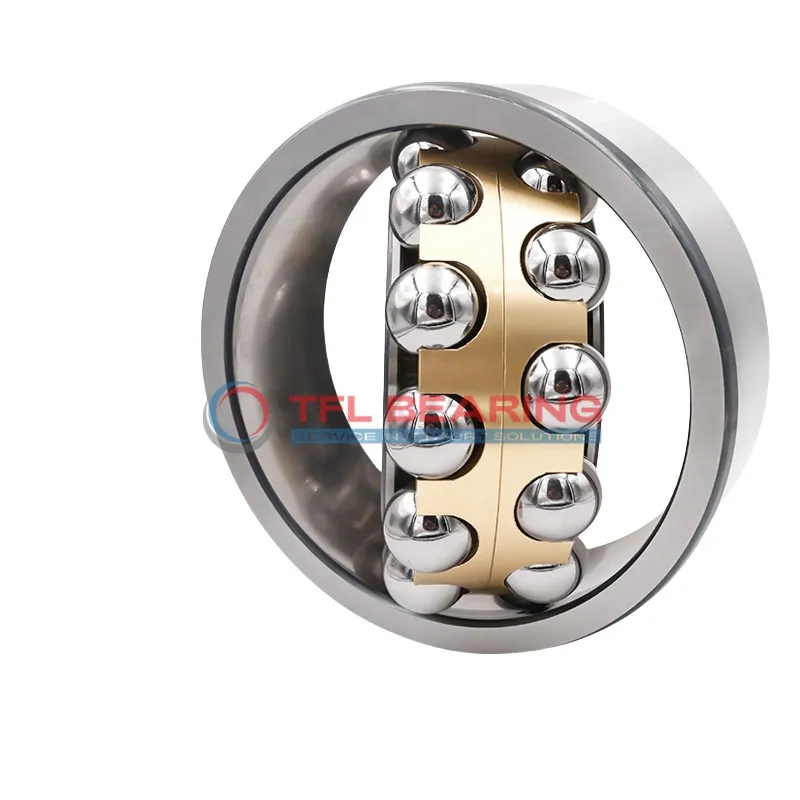

Self Aligning Ball Bearings 2320 KM/C3

The 2320 KM/C3 is a self-aligning ball bearing with a 100mm tapered bore and 215mm outer diameter, built from sturdy chrome steel for durability. It handles radial loads up to 42750 lbf and operates smoothly at speeds up to 4000 RPM.
Its double-row design and brass cage provide stability and reduce friction, making it suitable for misaligned shafts. The open seal allows for easy lubrication and maintenance.
With a C3 radial clearance, it accommodates thermal expansion, ideal for industrial machinery like conveyors or fans. The bearing works reliably in temperatures from -30°C to 110°C.
Weighing 12.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2320 KM/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 73 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 135.3 mm
  • Internal Diameter On Outer Ring 183.3 mm
  • Chamfer Dimension 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 42750 lbf
  • Static Radial Load 18000 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 12.5 kg
  • Price（$） 1101.75
Self Aligning Ball Bearings 2320 KM/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 2320 KM/C3 Bearing

2320 KM/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 42750 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 4,000 rpm, it balances durability and efficiency in various conditions.

2320 KM/C3 Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its C3 radial clearance allows for thermal expansion, making it suitable for high-temperature environments.

The double-row design enhances load distribution, improving stability under radial forces.
Its open seal type simplifies maintenance while ensuring consistent lubrication.

2320 KM/C3 Bearing’s tapered bore design ensures secure fitting on shafts.
This feature reduces slippage and enhances overall performance in demanding applications.

Application

Industrial Uses of 2320 KM/C3 Bearing
2320 KM/C3 Bearing is commonly used in heavy machinery, such as large conveyor systems and industrial fans, where its self-aligning feature helps compensate for shaft misalignment. The double-row design provides extra stability, making it suitable for high-load applications.
In automotive manufacturing, 2320 KM/C3 Bearing supports radial loads in gearboxes and drive systems, ensuring smooth operation even under demanding conditions. Its brass cage adds durability, reducing wear over time.
For automation equipment, 2320 KM/C3 Bearing’s tapered bore allows for secure mounting on shafts, which is essential for precision in robotic arms and assembly lines. The C3 radial clearance also accommodates thermal expansion during continuous use.
In wind turbines, 2320 KM/C3 Bearing handles variable loads and misalignment, contributing to reliable performance in harsh environments. The chrome steel construction ensures long service life, even with exposure to extreme weather.
