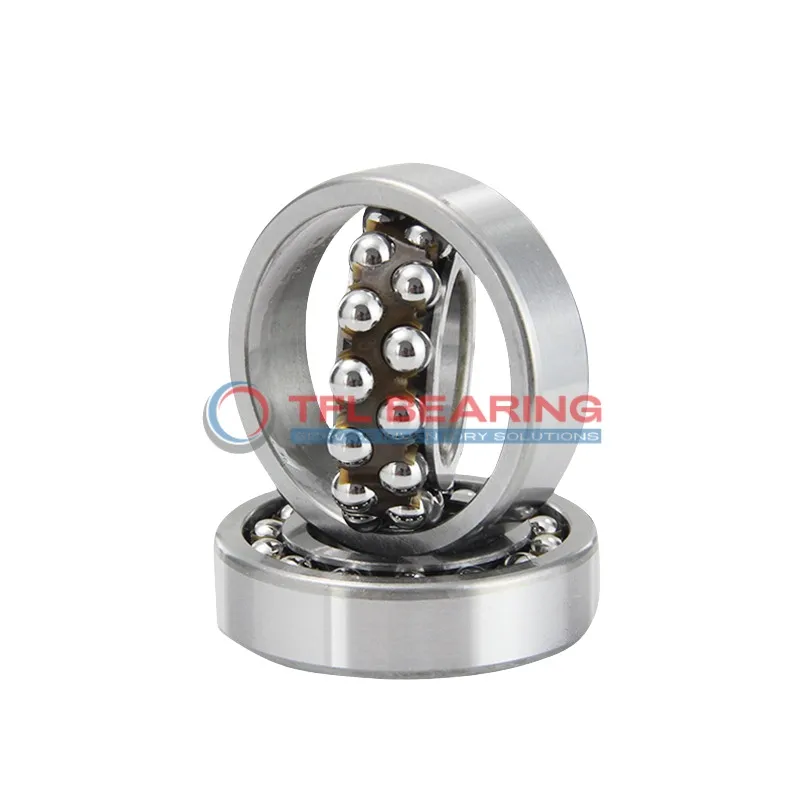

Self Aligning Ball Bearings 2308K

Self Aligning Ball Bearings 2308K

The 2308K is a self-aligning ball bearing with a 40mm tapered bore and 90mm outer diameter, crafted from sturdy chrome steel. Its double-row design and sealed construction help it handle radial loads up to 7605 lbf while running smoothly at 4800 RPM.

The nylon cage reduces friction, and the pre-lubrication ensures quiet operation. It can withstand temperatures from -30°C to 110°C, making it versatile for various environments.

This bearing aligns itself to minor misalignments, reducing wear and tear. It’s a practical choice for machinery like conveyor belts or agricultural equipment where alignment might shift.

Weighing 0.96kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a reliable, eco-friendly option for industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2308K
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 33 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 55.4 mm
  • Internal Diameter On Outer Ring 81.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7605 lbf
  • Static Radial Load 2520 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 0.96 kg
  • Price（$） 88.5
Self Aligning Ball Bearings 2308K dimension drawing
Download DWG Download PDF

Features

How Is 2308K Bearing Engineered for Reliability?

2308K Bearing features a double-row design with chrome steel rings and balls, offering strong radial load capacity up to 7605 lbf.
The sealed construction and nylon cage help maintain lubrication and reduce contamination.

With a maximum speed of 4,800 rpm, it ensures smooth operation in various applications.
The taper bore design allows for easy installation and secure fitting.

2308K Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its durable materials and precise tolerances contribute to long service life and reduced maintenance.

Application

Industrial Uses of 2308K Bearing
2308K Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments and shaft deflections. The sealed design helps keep contaminants out, extending service life in dusty environments.

In automotive applications, 2308K Bearing fits well in heavy-duty truck wheel hubs, handling radial loads efficiently. Its tapered bore ensures a secure fit, reducing slippage even under high stress.

For agricultural machinery, 2308K Bearing’s double-row construction provides stability in equipment like harvesters. The nylon cage offers quiet operation, which is beneficial in noise-sensitive settings.

Where Is 2308K Bearing Used?
You’ll often find 2308K Bearing in industrial fans, where its ability to handle misalignment prevents premature wear. The lubricated design ensures smooth rotation over long periods.

In construction equipment, 2308K Bearing supports radial loads in gearboxes and pulleys. Its chrome steel rings and balls provide durability, even in harsh working conditions.
