Single Row Deep Groove Ball Bearings 61856 MA

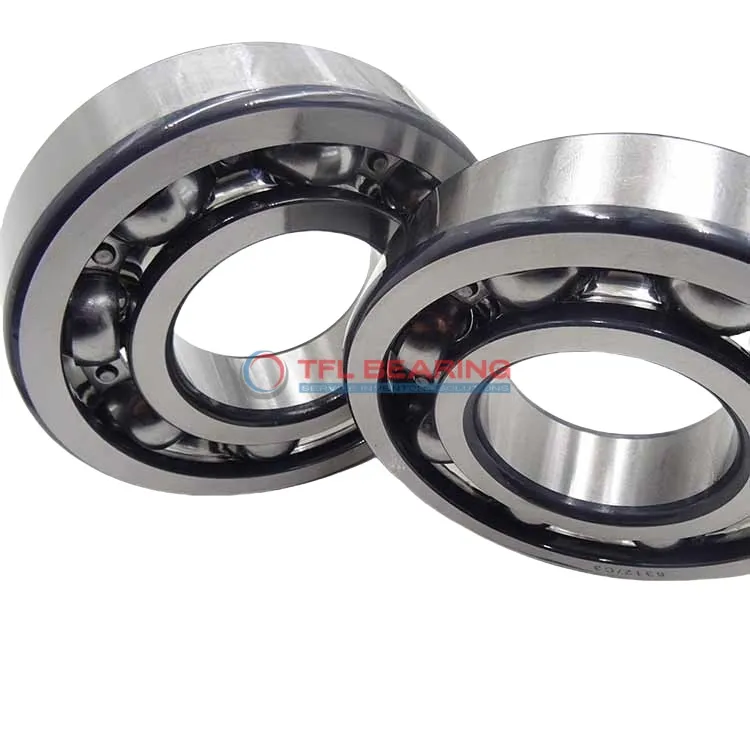

Single Row Deep Groove Ball Bearings 61856 MA

The 61856 MA is a single-row deep groove ball bearing with a 280mm bore and 350mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 31024 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design simplifies maintenance, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or pumps where radial loads are common.

Weighing 7.25kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The P6 tolerance class ensures precise performance, ideal for applications requiring high accuracy. Its deep groove design also helps distribute loads evenly for smoother operation.

Easy to install and maintain, this bearing is a reliable option for engineers and maintenance teams alike. Perfect for systems where consistent radial load support is needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61856 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 280 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 350 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 33 mm
  • Width Tolerance -0.35mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 31024 lbf
  • Static Radial Load 44962 lbf
  • Max Speed 2800 rpm
  • Weight 7.25 kg
  • price（$） 793.053
Single Row Deep Groove Ball Bearings 61856 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61856 MA Bearing

61856 MA Bearing is crafted with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 31024 lbf, ensuring dependable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and wear over time.
With a maximum speed of 2,800 rpm, it balances durability and efficiency for industrial use.

Designed for a temperature range of -30° to 120°C, 61856 MA Bearing adapts to diverse working conditions.
Its open seal type allows for easy inspection and maintenance, simplifying upkeep.

The P6 tolerance class ensures precision, making 61856 MA Bearing suitable for high-accuracy tasks.
Weighing 7.25 kg, it provides a robust solution without compromising on performance.

Application

Industrial Uses of 61856 MA Bearing
61856 MA Bearing is commonly used in large industrial machinery, such as gearboxes and heavy-duty motors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

Where Is 61856 MA Bearing Used?
You’ll often find 61856 MA Bearing in conveyor systems and large fans, where its high dynamic load capacity ensures reliable performance. Its chrome steel construction also makes it suitable for environments with moderate temperature variations.

Built for Heavy-Duty Use: 61856 MA Bearing
61856 MA Bearing excels in applications like agricultural equipment and mining machinery, thanks to its robust stainless steel cage. The P6 tolerance class ensures precise operation, even under significant radial loads.

Light-Duty vs Heavy-Duty: Best Uses for 61856 MA Bearing
While 61856 MA Bearing can handle light-duty applications like pumps, it truly shines in heavy-duty scenarios such as industrial presses. Its large bore size and high static load capacity make it a versatile choice for various machinery.
