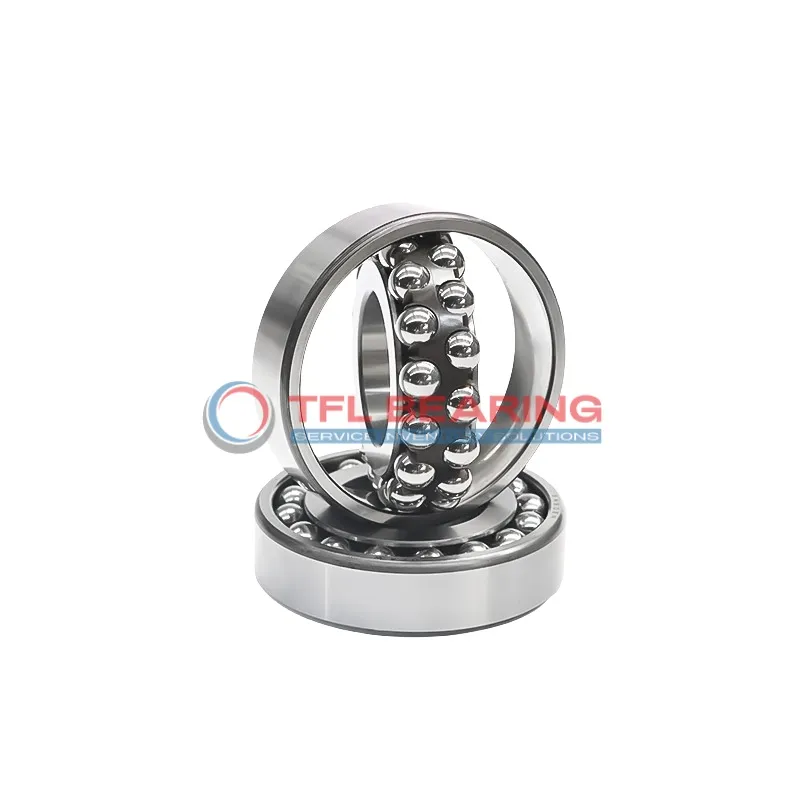

Self Aligning Ball Bearings 2209 C/2

Self Aligning Ball Bearings 2209 C/2

The 2209 C/2 is a self-aligning ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. Its double-row design and sealed construction ensure reliable performance under radial loads up to 5152 lbf.

With a maximum speed of 5300 RPM, it operates smoothly in temperatures ranging from -30°C to 110°C. The nylon cage reduces friction, while the pre-lubrication makes maintenance hassle-free.

This bearing is interchangeable with SKF models, offering a practical replacement option. Ideal for machinery where misalignment might occur, such as conveyor systems or agricultural equipment.

Weighing 0.53kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2209 C/2
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 52.9 mm
  • Internal Diameter On Outer Ring 75.25 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1755 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 0.53 kg
  • Price（$） 38.7
Self Aligning Ball Bearings 2209 C/2 dimension drawing
Download DWG Download PDF

Features

Why Choose 2209 C/2 Bearing for Precision Tasks?

2209 C/2 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 5152 lbf makes it suitable for demanding applications.

The nylon cage in 2209 C/2 Bearing reduces friction and noise, enhancing smooth operation.
With a maximum speed of 5,300 rpm, it balances performance and durability.

2209 C/2 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its sealed construction keeps contaminants out, ensuring long-lasting reliability.

Application

Industrial Uses of 2209 C/2 Bearing
2209 C/2 Bearing is commonly used in conveyor systems, where its self-aligning feature helps handle minor shaft misalignments. The sealed design keeps contaminants out, extending service life in dusty environments.
In automotive applications, 2209 C/2 Bearing fits well in wheel hubs and transmission systems, providing reliable radial load support. Its nylon cage reduces noise, making it suitable for passenger vehicles.
For robotics, 2209 C/2 Bearing’s double-row construction offers stability in articulated joints and rotating arms. The chrome steel balls ensure smooth movement even during repetitive tasks.
In household appliances like washing machines, 2209 C/2 Bearing’s lubricated design reduces friction, enhancing energy efficiency. The compact size fits neatly into tight spaces without compromising performance.
