Snap Ring Groove Ball Bearings 6215N/C3

Snap Ring Groove Ball Bearings 6215N/C3

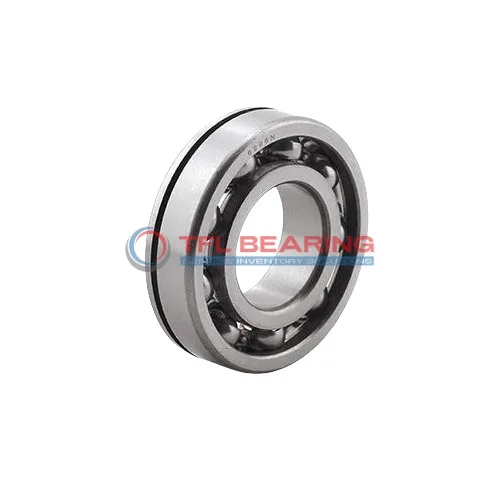

The 6215N/C3 is a snap ring groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel for reliable performance. Its single-row design and open seal make it easy to maintain, while the snap ring groove ensures secure fitting.

This bearing handles radial loads efficiently and operates smoothly in temperatures ranging from -30°C to 120°C. The C3 radial clearance allows for slight expansion under heat, making it suitable for varied conditions.

Its interchangeable design with SKF bearings offers flexibility for replacements. Ideal for machinery where secure mounting is needed, such as pumps or electric motors.

Weighing 1.18kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6215N/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.15mm to 0
  • Outside Diameter Of Snap Ring 130 mm
  • Width Of Snap Ring 3.1 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Weight 1.18 kg
  • Price（$） 30.8
Snap Ring Groove Ball Bearings 6215N/C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 6215N/C3 Bearing for Precision Tasks?

6215N/C3 Bearing features a snap ring groove on the outer ring, ensuring secure positioning in assemblies.
Its chrome steel construction provides durability and resistance to wear in radial load applications.

The open design allows for easy lubrication, maintaining smooth operation over time.
With a temperature range of -30° to 120°C, it performs reliably in various environments.

The C3 radial clearance offers flexibility, accommodating thermal expansion during operation.
This makes 6215N/C3 Bearing suitable for precision tasks requiring consistent performance.

Application

Industrial Uses of 6215N/C3 Bearing
The 6215N/C3 Bearing is commonly used in industrial machinery like pumps and gearboxes, where its snap ring groove ensures secure outer ring positioning. Its open design allows for easy lubrication, making it suitable for high-speed applications.

In automotive systems, 6215N/C3 Bearing provides reliable support for components like alternators and transmission shafts. The chrome steel construction offers durability under radial loads, ensuring long service life.

For automation equipment, 6215N/C3 Bearing’s C3 clearance accommodates thermal expansion in robotic arms and conveyor systems. The metric sizing ensures compatibility with a wide range of machinery.

Where Is 6215N/C3 Bearing Used?
You’ll often find 6215N/C3 Bearing in electric motors, where its snap ring groove simplifies installation and maintenance. The open seal design also helps dissipate heat efficiently.

In household appliances like washing machines, 6215N/C3 Bearing handles radial loads quietly and reliably. Its chrome steel cage enhances durability, even in damp environments.

Built for Heavy-Duty Use: 6215N/C3 Bearing
The 6215N/C3 Bearing excels in construction equipment, where its robust design withstands heavy radial loads. The snap ring groove adds stability in vibrating environments.

For agricultural machinery, 6215N/C3 Bearing’s C3 clearance allows for smooth operation despite dirt and debris. Its chrome steel rings resist wear, even in harsh conditions.

Light-Duty vs Heavy-Duty: Best Uses for 6215N/C3 Bearing
In light-duty applications like office printers, 6215N/C3 Bearing ensures quiet and precise movement. The snap ring groove makes it easy to replace when needed.

For heavy-duty scenarios like industrial fans, 6215N/C3 Bearing’s C3 clearance handles thermal expansion without compromising performance. Its open design also simplifies maintenance.
