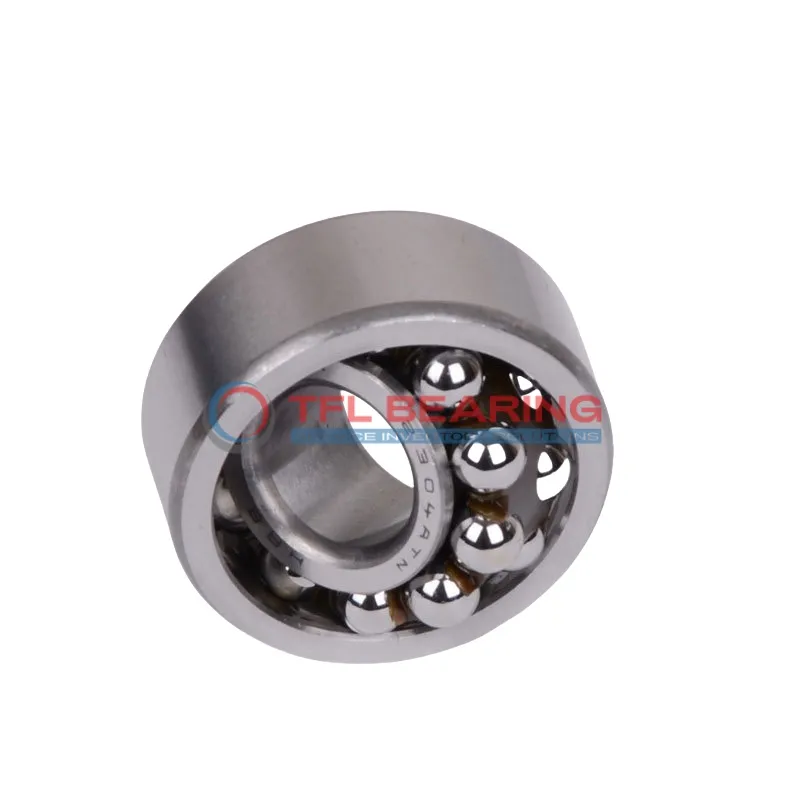

Self Aligning Ball Bearings 2210-K C/3

Brand: TFL Bearing Interchangeable: SKF 2210-K C/3 50 mm × 90 mm × 23 mm Metric Sealed
Part number: 2210-K C/3
Self Aligning Ball Bearings 2210-K C/3
In Stock
US$37.12 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.015mm to 0
Width23 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring57.7 mm
Internal Diameter On Outer Ring79.4 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load5,152 lbf
Static Radial Load1,834 lbf
Temperature Range-30° to 110 °C
Max Speed4,800 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.57 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2210-K C/3 is a self-aligning ball bearing with a 50mm bore and 90mm outer diameter, designed for radial loads. Its double-row construction and sealed design provide reliable performance in various conditions.

Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 5152 lbf and operates smoothly at speeds up to 4800 RPM. The bearing is pre-lubricated for easy installation and maintenance.

Its self-aligning feature compensates for minor misalignments, making it suitable for applications like conveyor systems or agricultural machinery. The tapered bore ensures a secure fit on shafts.

Weighing 0.57kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and versatile choice for industrial use.

Features

How Does 2210-K C/3 Bearing Reduce Friction?

2210-K C/3 Bearing features a double-row design with chrome steel balls, ensuring smooth radial load distribution.
The nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
With a dynamic radial load capacity of 5152 lbf, it handles demanding applications efficiently.
Its sealed construction keeps lubrication intact, further reducing wear over time.

Why Choose 2210-K C/3 Bearing for Precision Tasks?

2210-K C/3 Bearing’s tapered bore design ensures precise alignment, ideal for high-accuracy applications.
The chrome steel construction provides durability while maintaining consistent performance under radial loads.
Its maximum speed of 4,800 rpm balances precision and operational efficiency.
The sealed design protects against contaminants, ensuring long-term reliability.

Application

Key Fields for 2210-K C/3 Bearing
In industrial settings, 2210-K C/3 Bearing is commonly used in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending service life in dusty environments.
Automotive applications like steering columns benefit from 2210-K C/3 Bearing’s ability to handle radial loads smoothly. Its nylon cage reduces noise, making it suitable for passenger vehicles where quiet operation is valued.
For robotics, 2210-K C/3 Bearing’s double-row construction provides stability in articulated arms and joints. The taper bore ensures a secure fit, preventing slippage during repetitive movements.
In household appliances like washing machines, 2210-K C/3 Bearing’s lubricated design ensures low maintenance. The chrome steel rings offer durability against daily wear and tear.
