Self Aligning Ball Bearings 2206KJ

Self Aligning Ball Bearings 2206KJ

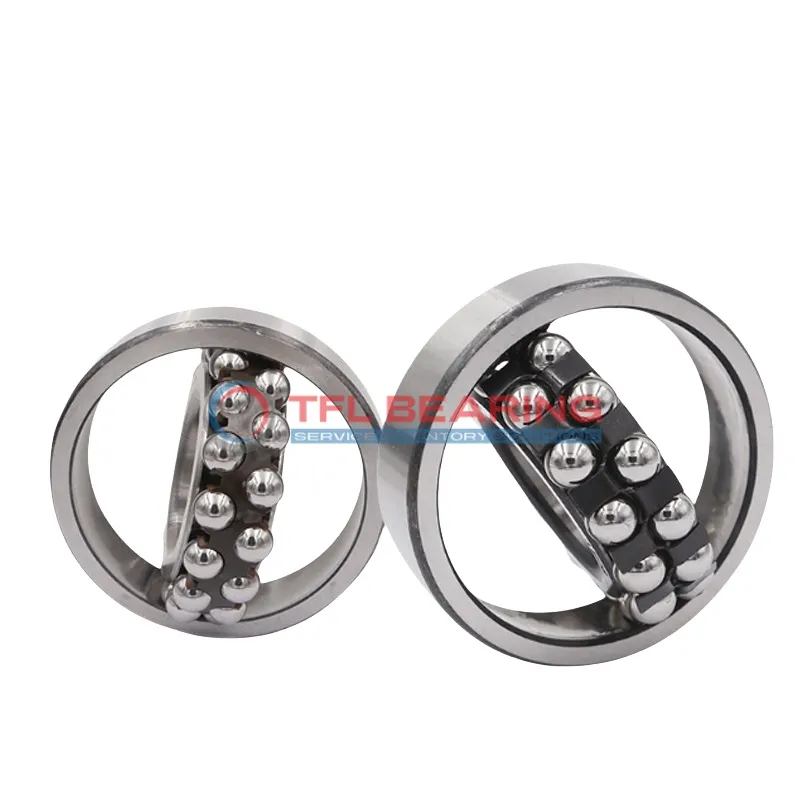

The 2206KJ is a self-aligning ball bearing with a 30mm tapered bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3510 lbf and runs smoothly at speeds up to 7500 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, reducing maintenance needs. The steel cage adds durability, making it suitable for long-term use.

This bearing works well in temperatures from -30°C to 110°C and comes pre-lubricated for easy installation. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for applications like conveyor systems or agricultural machinery where misalignment might occur. Weighing 0.26kg, it’s a robust yet lightweight choice for industrial settings. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2206KJ
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 36.7 mm
  • Internal Diameter On Outer Ring 54.06 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 1046 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 0.26 kg
  • Price（$） 27.03
Self Aligning Ball Bearings 2206KJ dimension drawing
Download DWG Download PDF

Features

Why Choose 2206KJ Bearing for Precision Tasks?

2206KJ Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 3510 lbf makes it suitable for demanding applications.

The sealed construction protects against contaminants, enhancing durability in harsh environments.
With a maximum speed of 7,500 rpm, it delivers reliable performance without compromising efficiency.

2206KJ Bearing’s tapered bore design allows for easy and secure mounting.
Its steel cage maintains ball alignment, reducing friction and extending service life.

The bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its lubricated design ensures consistent performance with minimal maintenance.

Application

Industrial Uses of 2206KJ Bearing
2206KJ Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2206KJ Bearing fits well in wheel hubs and transmission systems, thanks to its radial load capacity. The taper bore design allows for secure mounting on shafts, reducing slippage risks.

For robotics, 2206KJ Bearing offers smooth rotation in joint assemblies, crucial for precise movement. Its double-row construction provides stability, even under varying load conditions.

In household appliances like washing machines, 2206KJ Bearing handles vibrations effectively. The lubricated design ensures quiet operation, making it ideal for noise-sensitive environments.

Medical imaging devices benefit from 2206KJ Bearing’s reliable performance. The chrome steel construction resists wear, maintaining accuracy in critical diagnostic equipment.
