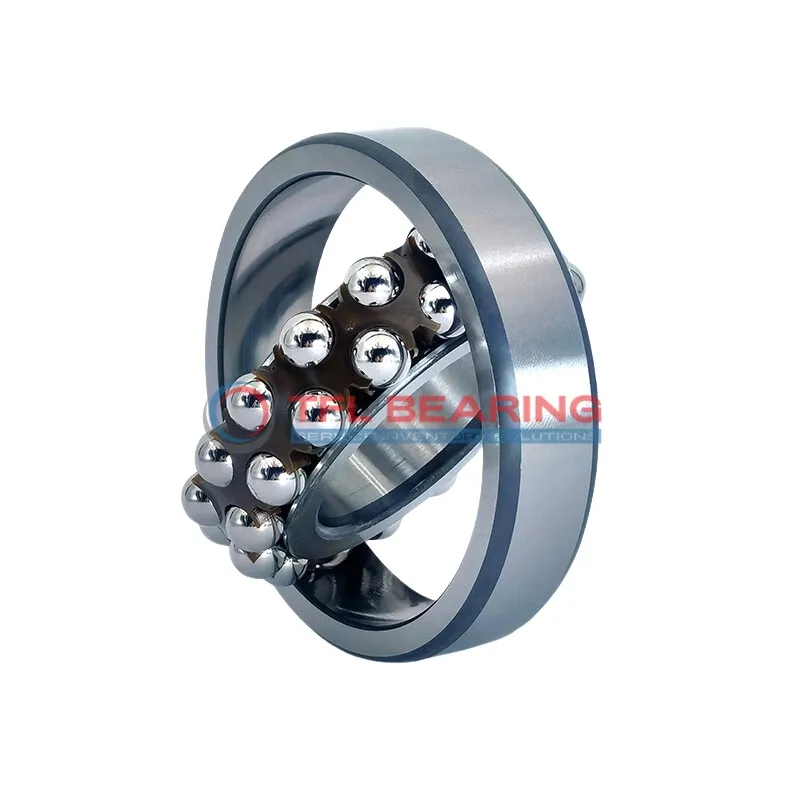

Self Aligning Ball Bearings 2316 K/C3

Brand: TFL Bearing Interchangeable: SKF 2316 K/C3 80 mm × 170 mm × 58 mm Metric Open
Part number: 2316 K/C3
Self Aligning Ball Bearings 2316 K/C3
In Stock
US$374.20 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia170 mm
Outer Dia Tolerance-0.025mm to 0
Width58 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring104.4 mm
Internal Diameter On Outer Ring145.1 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load30,375 lbf
Static Radial Load11,025 lbf
Temperature Range-30° to 110 °C
Max Speed5,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight5.9 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2316 K/C3 is a self-aligning ball bearing with an 80mm tapered bore and 170mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 30375 lbf and runs smoothly at speeds up to 5300 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, while the nylon cage reduces friction. The bearing operates reliably in temperatures from -30°C to 110°C.

With a C3 radial clearance, it accommodates slight misalignments, making it suitable for heavy machinery or conveyor systems. Weighing 5.9kg, it’s robust yet manageable for industrial use.

This model is interchangeable with SKF bearings and complies with RoHS and REACH standards, ensuring safe and versatile application.

Features

How Is 2316 K/C3 Bearing Engineered for Reliability?

2316 K/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 30,375 lbf, making it suitable for heavy-duty applications.
The nylon cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 5,300 rpm, it offers reliable performance in various industrial settings.

Application

Industrial Uses of 2316 K/C3 Bearing
2316 K/C3 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature helps accommodate misalignment. The double-row design provides added stability, making it suitable for high-load applications.

In automotive applications, 2316 K/C3 Bearing can be found in gearboxes and drivetrains, where its radial load capacity ensures smooth operation. The taper bore design allows for secure mounting on shafts, reducing slippage.

For medical imaging equipment, 2316 K/C3 Bearing’s chrome steel construction offers durability and precision. The nylon cage reduces friction, contributing to quieter operation in sensitive environments.

Automation systems benefit from 2316 K/C3 Bearing’s ability to handle misalignment in robotic arms and assembly lines. Its lubricated design ensures long service life with minimal maintenance.

In household appliances like washing machines, 2316 K/C3 Bearing provides reliable performance under varying loads. The C3 radial clearance allows for thermal expansion, ensuring consistent operation over time.
