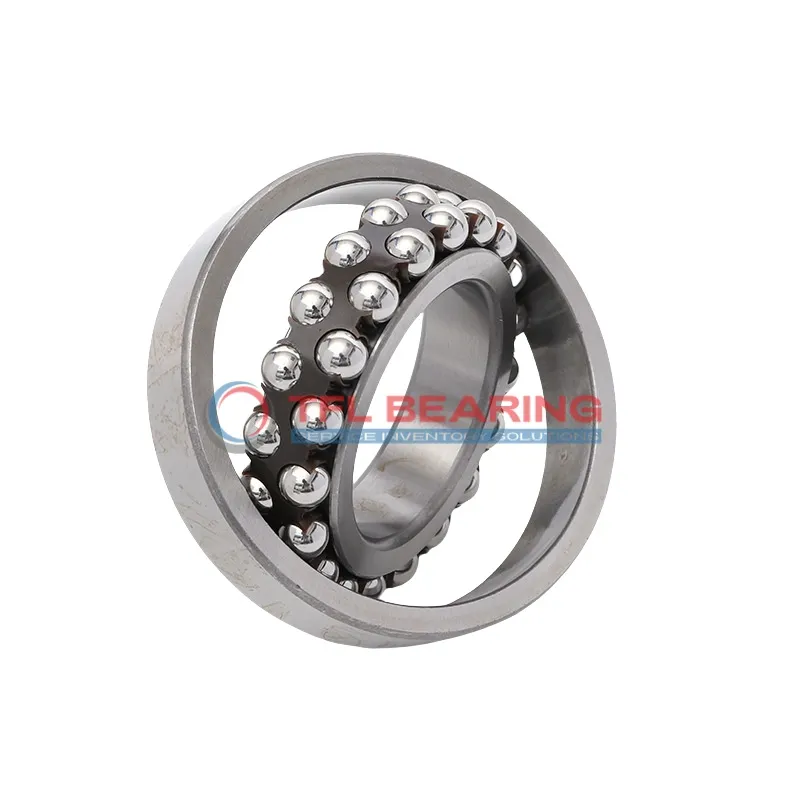

Self Aligning Ball Bearings 1202 ETN9/C2

Brand: TFL Bearing Interchangeable: SKF 1202 ETN9/C2 15 mm × 35 mm × 11 mm Metric Open
Part number: 1202 ETN9/C2
Self Aligning Ball Bearings 1202 ETN9/C2
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia35 mm
Outer Dia Tolerance-0.011mm to 0
Width11 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring21.15 mm
Internal Diameter On Outer Ring28.9 mm
Chamfer Dimension0.6 mm
Performance
Dynamic Radial Load1,667 lbf
Static Radial Load396 lbf
Temperature Range-30° to 110 °C
Max Speed28,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC2
Weight0.049 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1202 ETN9/C2 is a self-aligning ball bearing with a 15mm bore and 35mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 1667 lbf and operates smoothly at speeds up to 28,000 RPM.

Its double-row design and open seal allow for easy lubrication and maintenance, while the nylon cage reduces friction. The bearing performs well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Suitable for applications like electric motors or conveyor systems where slight misalignments may occur.

Weighing just 0.049kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Features

How Does 1202 ETN9/C2 Bearing Reduce Friction?

1202 ETN9/C2 Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
The C2 radial clearance provides optimal performance, accommodating slight misalignments with ease.
With a maximum speed of 28,000 rpm, it delivers reliable efficiency in various applications.

Application

Industrial Uses of 1202 ETN9/C2 Bearing
The 1202 ETN9/C2 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. Its nylon cage reduces friction, making it suitable for continuous operation in manufacturing plants.

In automotive applications, 1202 ETN9/C2 Bearing fits well in gearboxes and pumps, handling radial loads efficiently. The C2 radial clearance ensures smooth performance even under varying temperatures.

For robotics, 1202 ETN9/C2 Bearing’s double-row design provides stability in robotic arms and joints. The chrome steel construction offers durability, essential for repetitive movements in automated systems.

Where Is 1202 ETN9/C2 Bearing Used?
You’ll often find 1202 ETN9/C2 Bearing in household appliances like washing machines, where it supports rotating drums. Its lubricated design ensures quiet operation, perfect for home environments.

In industrial fans, 1202 ETN9/C2 Bearing handles high speeds effortlessly, thanks to its dynamic load capacity. The open seal type allows for easy relubrication, extending its service life.

Built for Heavy-Duty Use: 1202 ETN9/C2 Bearing
The 1202 ETN9/C2 Bearing excels in construction equipment, enduring heavy radial loads in compact spaces. Its cylindrical bore ensures a secure fit on shafts, reducing slippage risks.

For agricultural machinery, 1202 ETN9/C2 Bearing’s self-aligning capability is ideal for uneven loads. The metric sizing makes it compatible with a wide range of farming equipment.

Light-Duty vs Heavy-Duty: Best Uses for 1202 ETN9/C2 Bearing
In light-duty applications like office printers, 1202 ETN9/C2 Bearing ensures smooth paper feed mechanisms. Its lightweight design doesn’t compromise on performance.

For heavy-duty uses such as hydraulic pumps, 1202 ETN9/C2 Bearing’s robust construction handles high-pressure conditions. The chrome steel balls enhance wear resistance, even in demanding environments.
