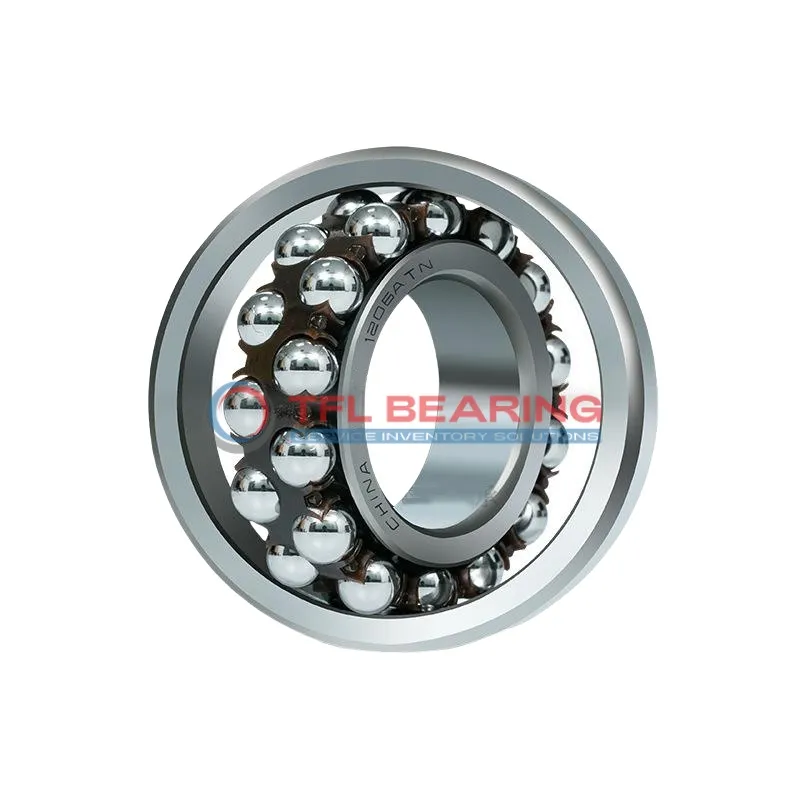

Self Aligning Ball Bearings 2204-K-TV-C3

Self Aligning Ball Bearings 2204-K-TV-C3

The 2204-K-TV-C3 is a self-aligning ball bearing with a 20mm tapered bore and 47mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2858 lbf and reaches speeds of 10,000 RPM smoothly.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces noise. The bearing comes pre-lubricated and operates well in temperatures from -30°C to 110°C.

This model fits SKF equivalents, making replacements straightforward. Perfect for machinery with misalignment issues, like conveyor systems or agricultural equipment.

Weighing just 0.14kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2204-K-TV-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 25.9 mm
  • Internal Diameter On Outer Ring 41.23 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 2858 lbf
  • Static Radial Load 765 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.14 kg
Self Aligning Ball Bearings 2204-K-TV-C3 dimension drawing
Download DWG Download PDF

Features

How Does 2204-K-TV-C3 Bearing Reduce Friction?

2204-K-TV-C3 Bearing features a double-row design with chrome steel balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
The sealed construction keeps lubrication in place, enhancing performance over time.
With a maximum speed of 10,000 rpm, it delivers reliable efficiency in various applications.

Application

Industrial Uses of 2204-K-TV-C3 Bearing
2204-K-TV-C3 Bearing is commonly used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

Where Is 2204-K-TV-C3 Bearing Used?
In conveyor systems, 2204-K-TV-C3 Bearing handles radial loads smoothly, thanks to its double-row ball construction. The tapered bore allows for secure mounting on shafts, reducing slippage risks.

Built for Heavy-Duty Use: 2204-K-TV-C3 Bearing
2204-K-TV-C3 Bearing works well in agricultural machinery, such as grain augers, where vibration and load variations are common. Its nylon cage offers quiet operation, ideal for noise-sensitive settings.

Automotive vs Aerospace: Applications of 2204-K-TV-C3 Bearing
In automotive wheel hubs, 2204-K-TV-C3 Bearing provides reliable performance under varying road conditions. For aerospace applications, its metric sizing and C3 clearance adapt well to thermal expansion needs.

Perfect Fit for Automation: 2204-K-TV-C3 Bearing
2204-K-TV-C3 Bearing suits robotic arms in assembly lines, where precision and durability are key. The lubricated design ensures smooth movement even during continuous operation cycles.
