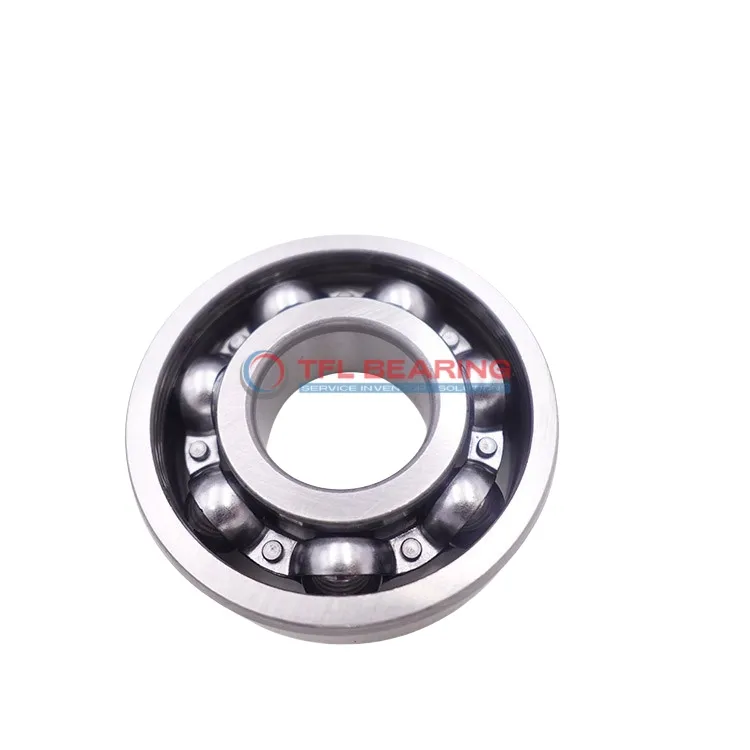

Single Row Deep Groove Ball Bearings 61917

Single Row Deep Groove Ball Bearings 61917

The 61917 is a single-row deep groove ball bearing with an 85mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7171 lbf and operates smoothly at speeds up to 7000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial load support is needed.

Weighing 0.55kg, it balances strength and compactness. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61917
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 7171 lbf
  • Static Radial Load 6744 lbf
  • Max Speed 7000 rpm
  • Weight 0.55 kg
  • price（$） 88.02
Single Row Deep Groove Ball Bearings 61917 dimension drawing
Download DWG Download PDF

Features

Core Advantages of 61917 Bearing

61917 Bearing features a single-row deep groove design, optimised for radial loads with a capacity of 7171 lbf.
Its chrome steel rings and balls enhance durability, while the stainless steel cage ensures smooth operation.

The bearing operates efficiently within a temperature range of -30° to 120°C, suitable for various environments.
With a maximum speed of 7,000 rpm, it balances performance and longevity in demanding applications.

61917 Bearing’s precise P6 tolerance class guarantees consistent performance and reliability.
Its open seal design simplifies maintenance, reducing downtime and operational costs.

Application

Common Applications of 61917 Bearing
61917 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

In automotive applications, 61917 Bearing fits well in wheel hubs and transmission systems, providing smooth rotation under radial loads. Its metric dimensions make it a versatile choice for various vehicle models.

For automation equipment, 61917 Bearing’s chrome steel construction offers durability in robotic arms and conveyor systems. The stainless steel cage adds resistance to wear, making it suitable for high-speed operations.

In household appliances like washing machines, 61917 Bearing ensures quiet and efficient operation. Its compact size and robust design make it a practical choice for everyday use.
