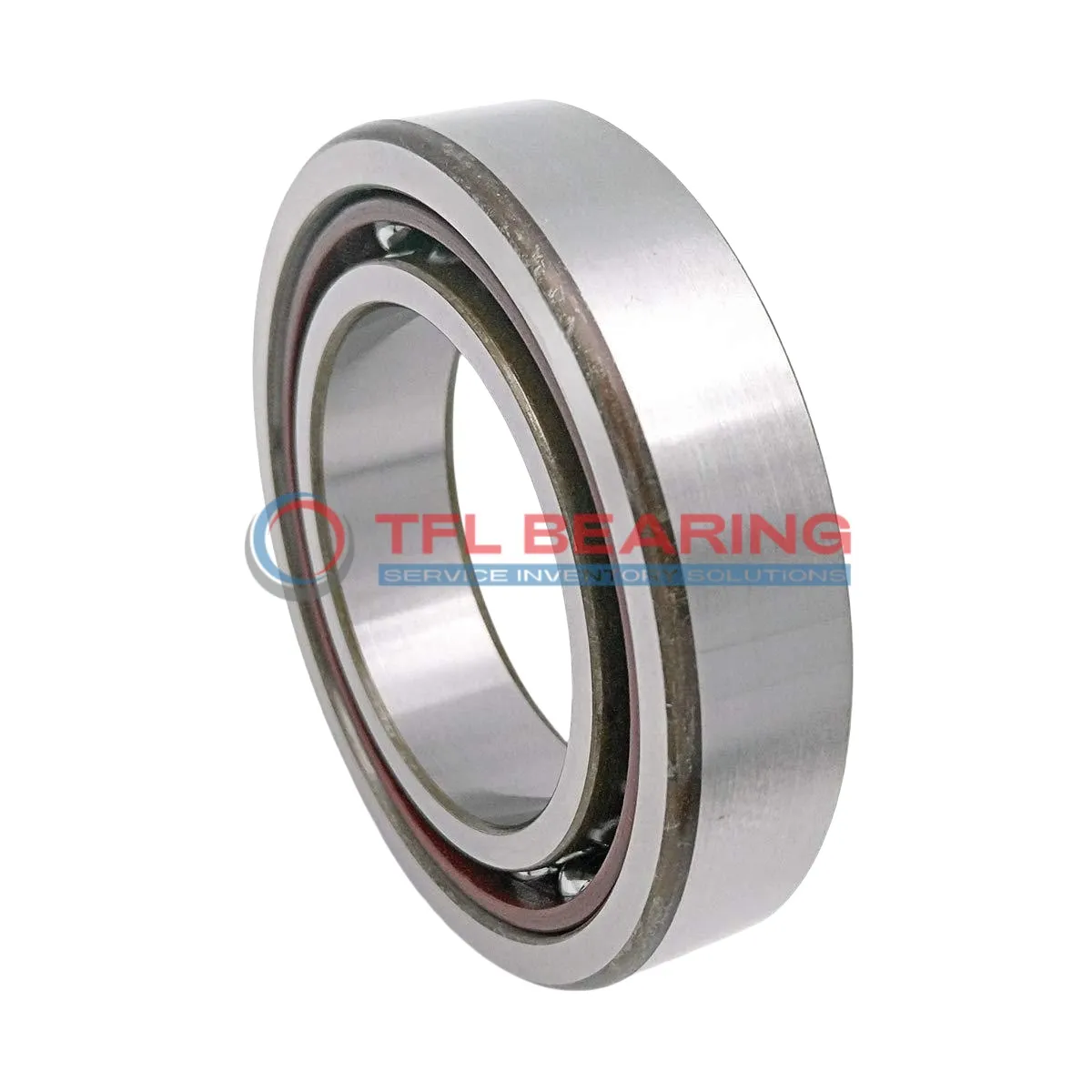

Super Precision Angular Contact Ball Bearings 7028 ACD/P4ADT

Brand: TFL Bearing Interchangeable: SKF 7028 ACD/P4ADT 140 mm × 210 mm × 66 mm Metric Open
Part number: 7028 ACD/P4ADT
Super Precision Angular Contact Ball Bearings 7028 ACD/P4ADT
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia140 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia210 mm
Outer Dia Tolerance-0.004mm to 0
Width66 mm
Width Tolerance-0.2mm to 0
Ball Dia22.225 mm
Performance
PreloadAvailable
Dynamic Radial Load52,650 lbf
Static Radial Load70,875 lbf
Temperature Range- 30°C to 110 °C
Max Speed6,300 rpm
Characteristics
Ball Qty22
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement2 bearings << DT
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight6.84 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7028 ACD/P4ADT is a super precision angular contact ball bearing with a 140mm bore and 210mm outer diameter, crafted from high-quality chrome steel. It features a 25° contact angle and comes in a matched set of two bearings for balanced performance.

This bearing handles radial loads up to 52650 lbf and operates smoothly at speeds up to 6300 RPM. Its phenolic cage ensures durability while the open design allows for easy lubrication and maintenance.

The P4A tolerance class guarantees exceptional precision, making it ideal for high-accuracy applications. It performs reliably in temperatures ranging from -30°C to 110°C.

Weighing 6.84kg, this bearing is suited for demanding machinery like spindles or high-speed gearboxes. It’s interchangeable with SKF bearings, offering a dependable replacement option.

Features

Performance Features of 7028 ACD/P4ADT Bearing

7028 ACD/P4ADT Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability under high dynamic radial loads of 52650 lbf.

The phenolic cage maintains ball alignment, reducing friction and enhancing performance at speeds up to 6,300 rpm.
With a precision tolerance class of P4A, it delivers consistent accuracy in demanding conditions.

7028 ACD/P4ADT Bearing operates reliably in temperatures from -30°C to 110°C, suitable for varied environments.
Its matched arrangement of two bearings provides balanced load handling and extended service life.

Application

Industrial Uses of 7028 ACD/P4ADT Bearing
The 7028 ACD/P4ADT Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. Its phenolic cage reduces friction, making it suitable for high-speed operations.

In automotive applications, 7028 ACD/P4ADT Bearing supports wheel hubs and transmission systems, providing reliable performance under heavy loads. The P4A tolerance class ensures consistent quality in demanding conditions.

For automation equipment, 7028 ACD/P4ADT Bearing is ideal for robotic arms, offering smooth movement and long service life. The matched arrangement of two bearings enhances stability in dynamic applications.

Medical imaging devices benefit from 7028 ACD/P4ADT Bearing’s precision, ensuring quiet and vibration-free operation. The chrome steel construction adds durability in critical healthcare environments.

In aerospace systems, 7028 ACD/P4ADT Bearing handles both radial and axial loads, making it versatile for various aircraft components. The temperature range allows it to perform reliably in extreme conditions.
